Siemens ACCESS 9340 User Manual

© 2008 Siemens Energy & Automation, Inc. All Rights Reserved.
PMCM-9340D-0208 ACCESS 9340 and 9360 Meters
2/2008 Chapter 1—Introduction
EN–5
ACCESS 9340/9360 Meter Without Display

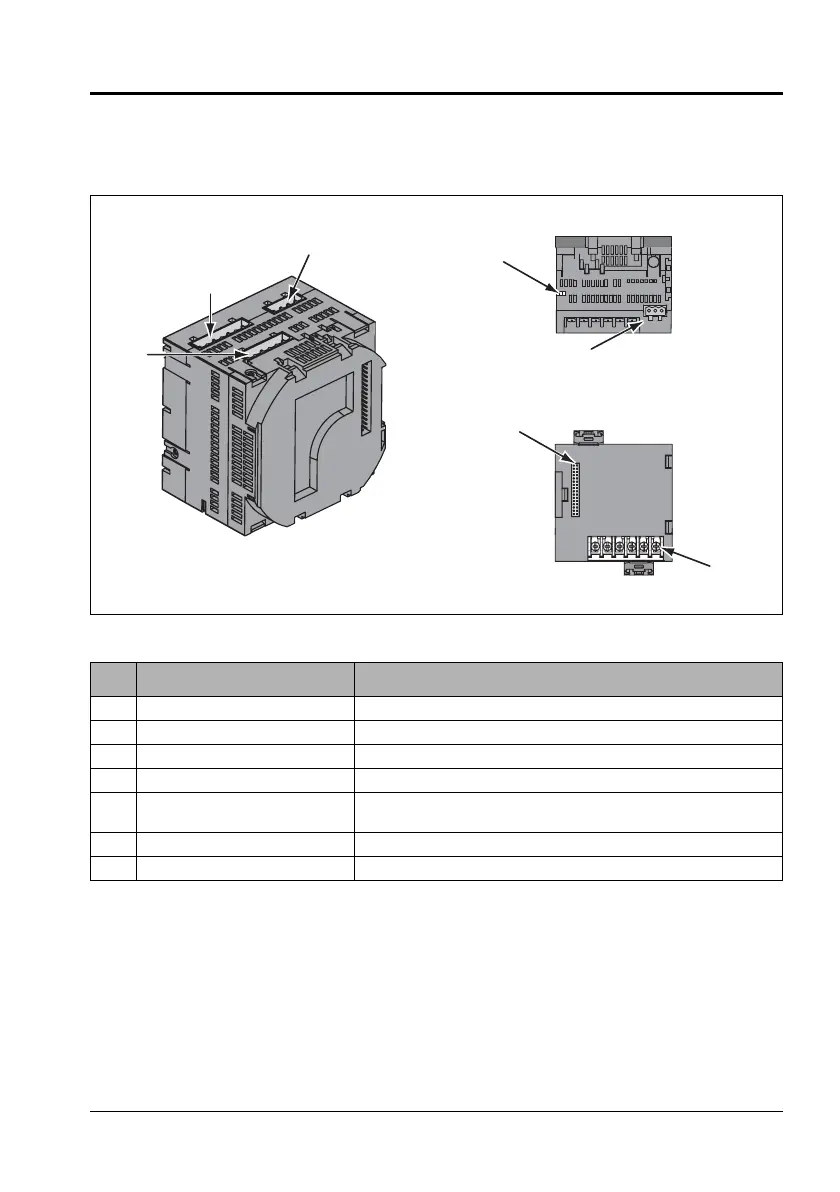

Figure 1–2: Parts of the ACCESS 9340/9360 without display
1
2
3
5
6
7
4
Bottom View
Back View
PLSD110317
Table 1–3: Parts of the ACCESS 9340/9360 Without Display
No. Part Description
1 Control power supply connector Connection for control power to the meter.
2 Voltage inputs Voltage metering connections.
3 I/O connector KY pulse output/digital input connections
4 Heartbeat LED A green flashing LED indicates the meter is ON.
5 RS-485 port (COM1)
The RS-485 port is used for communications with a monitoring and
control system. This port can be daisy-chained to multiple devices.
6 Option module connector Used to connect an option module to the meter.
7 Current inputs Current metering connections.
