Engineering via SICAM WEB
462 Unrestricted SICAM A8000 / CP-8000 • CP-8021 • CP-8022 Manual
DC8-037-2.02, Edition 10.2017

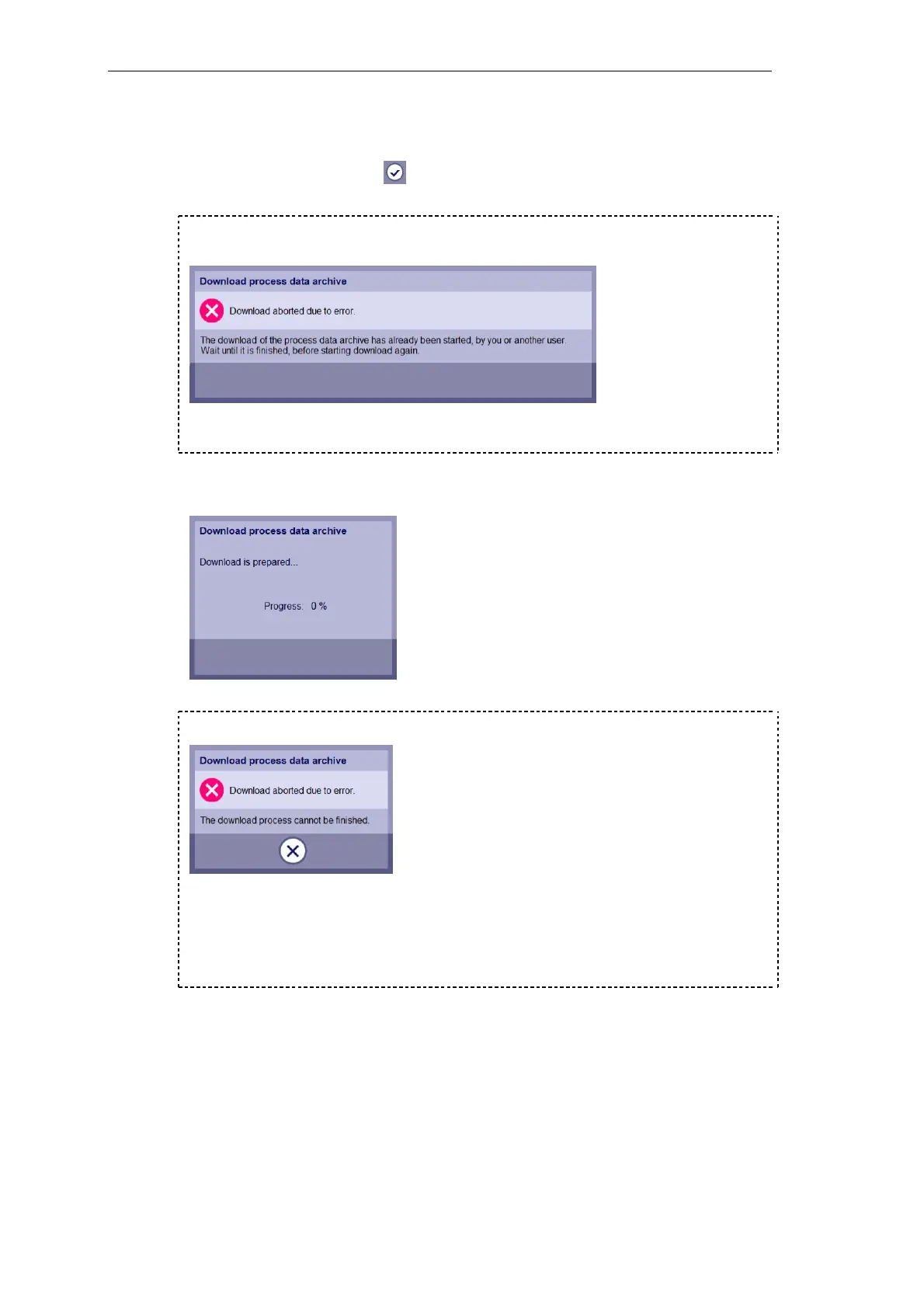

You have the possibility to abort the procedure.
• Confirm the procedure with
If the download – probably in another session – has already been started but not yet been
terminated, the following dialog will appear:
You have to abort the procedure and await the completion of the previous download.
If the settings have been saved, the target device starts with the generation of the archive file.
The progress is thereby displayed by the web server. This procedure can take a few minutes.
If due to an error the archive file cannot be produced, the following dialog appears:
A cause may be for instance a bad communication connection or the memory usage in the
target device.
You have to abort the procedure and try again. If the error is persistent, check the communi-
cation and/or – if possible – trigger a startup of the target device.
