Engineering via SICAM WEB
SICAM A8000 / CP-8000 • CP-8021 • CP-8022 Manual Unrestricted 463
DC8-037-2.02, Edition 10.2017

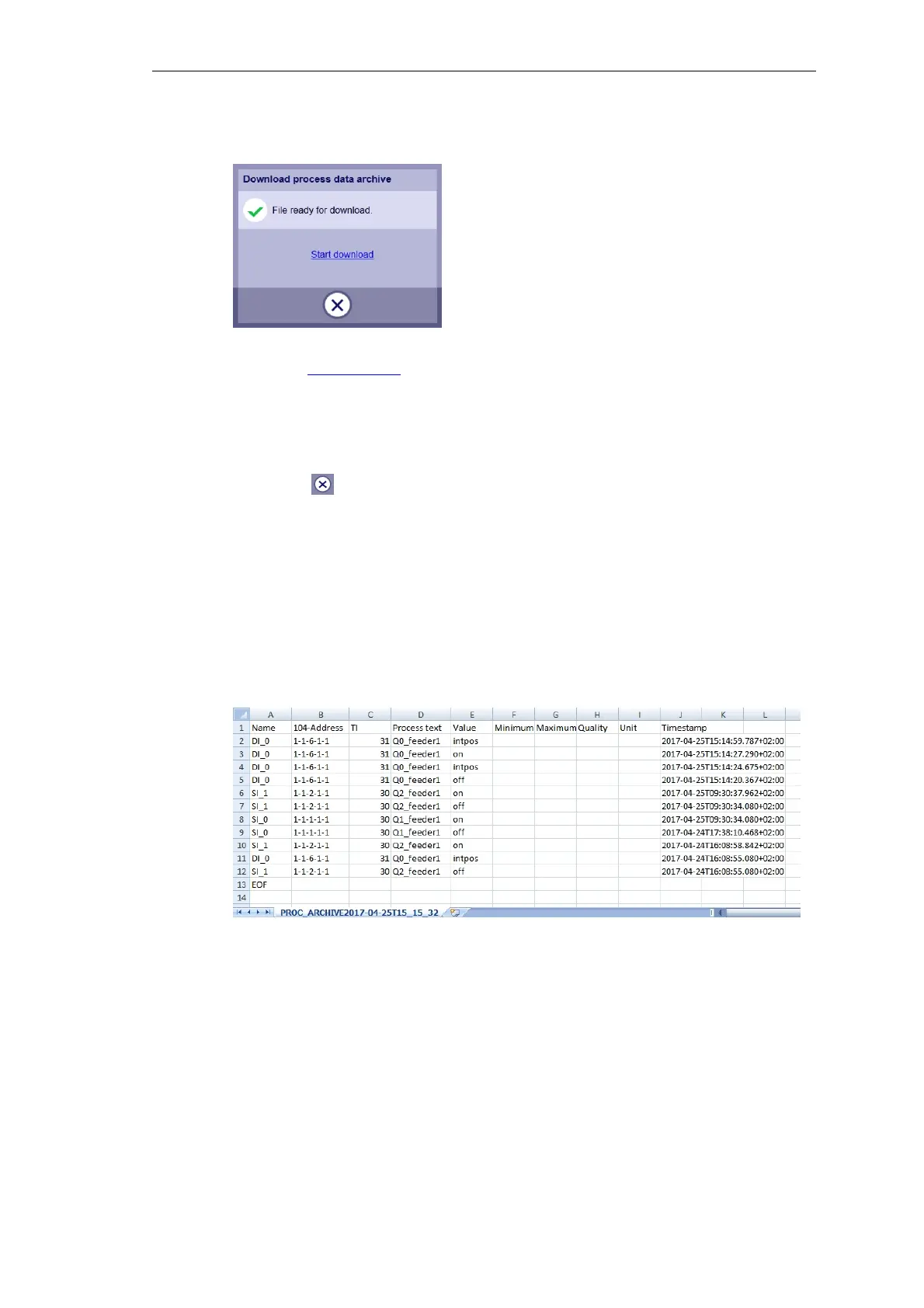

When the generation of the archive file has finished successfully, the following dialog appears:
• Click on Start download
The storing procedure may vary dependent on the used web browser and may take some
time, depending on the file size (max. 1 GB) and transmission rate. Follow the instructions of
your web browser. The file name is put together of PROC_ARCHIVE<date>_<time>.csv.
• Click on in order to close the dialog
You now can log off from the target system, or continue with the work in the current session.
The download keeps on running in the background until it is terminated.
The download can be aborted at any time by means of:
• Cancel function via web browser
• Closing the web browser
Example for an Archive File
