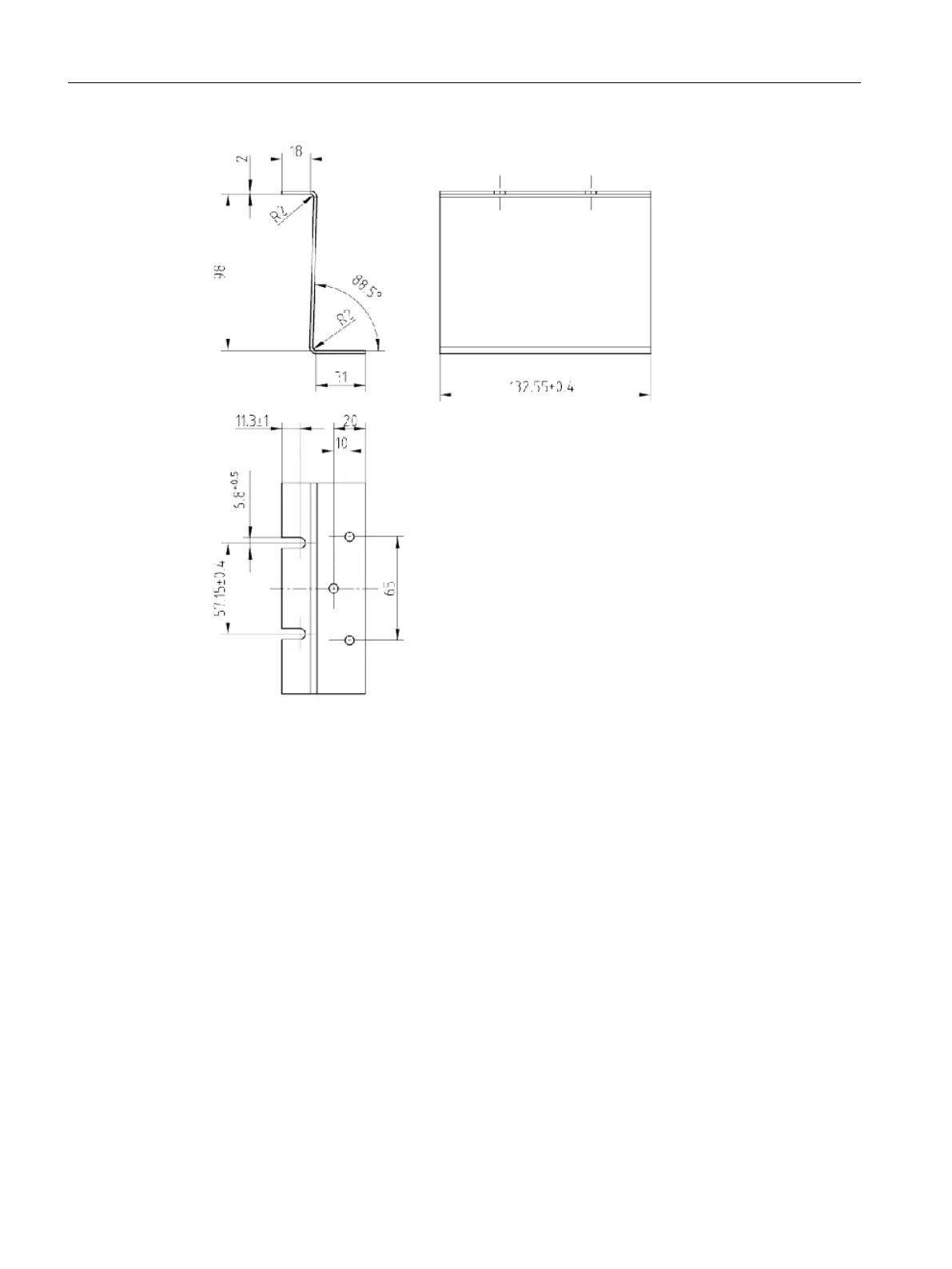

Figure 10-22 Side part of mounting support for X‑300EEC (dimensions in mm)
Material: Plate 2.0 DIN EN10152 DC01+ZE25/25
Graphics
10.5 XR-300M EEC dimension drawings
SCALANCE X-300
238 Operating Instructions, 11/2019, A5E01113043-24
