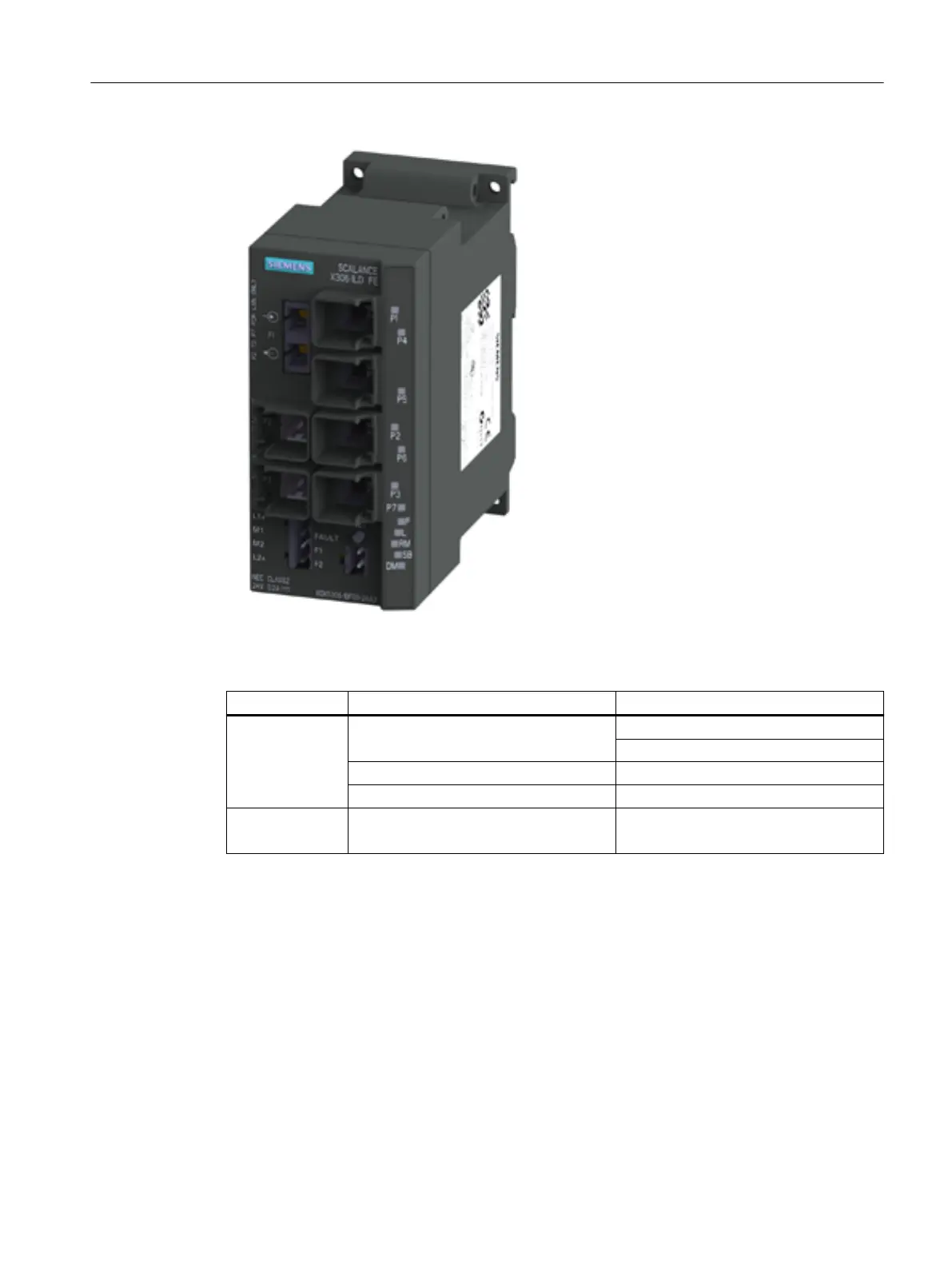

Figure 4-3 SCALANCE X306-1LD FE
Column 1 2
Port number P1 *) P4
P5
P2 P6
P3 P7
Connection type Electrical: Fast Ethernet
*) Optical: Fast Ethernet
Electrical: Fast Ethernet
4.4.1.3 SCALANCE X307-3 product characteristics
Possible attachments
The SCALANCE X307-3 provides the following options for the connection of end devices or
other network segments:
● 7 RJ-45 jacks
● 3 FO ports (for multimode fiber)
Description of the device
4.4 Product properties and device views
SCALANCE X-300
Operating Instructions, 11/2019, A5E01113043-24 51
