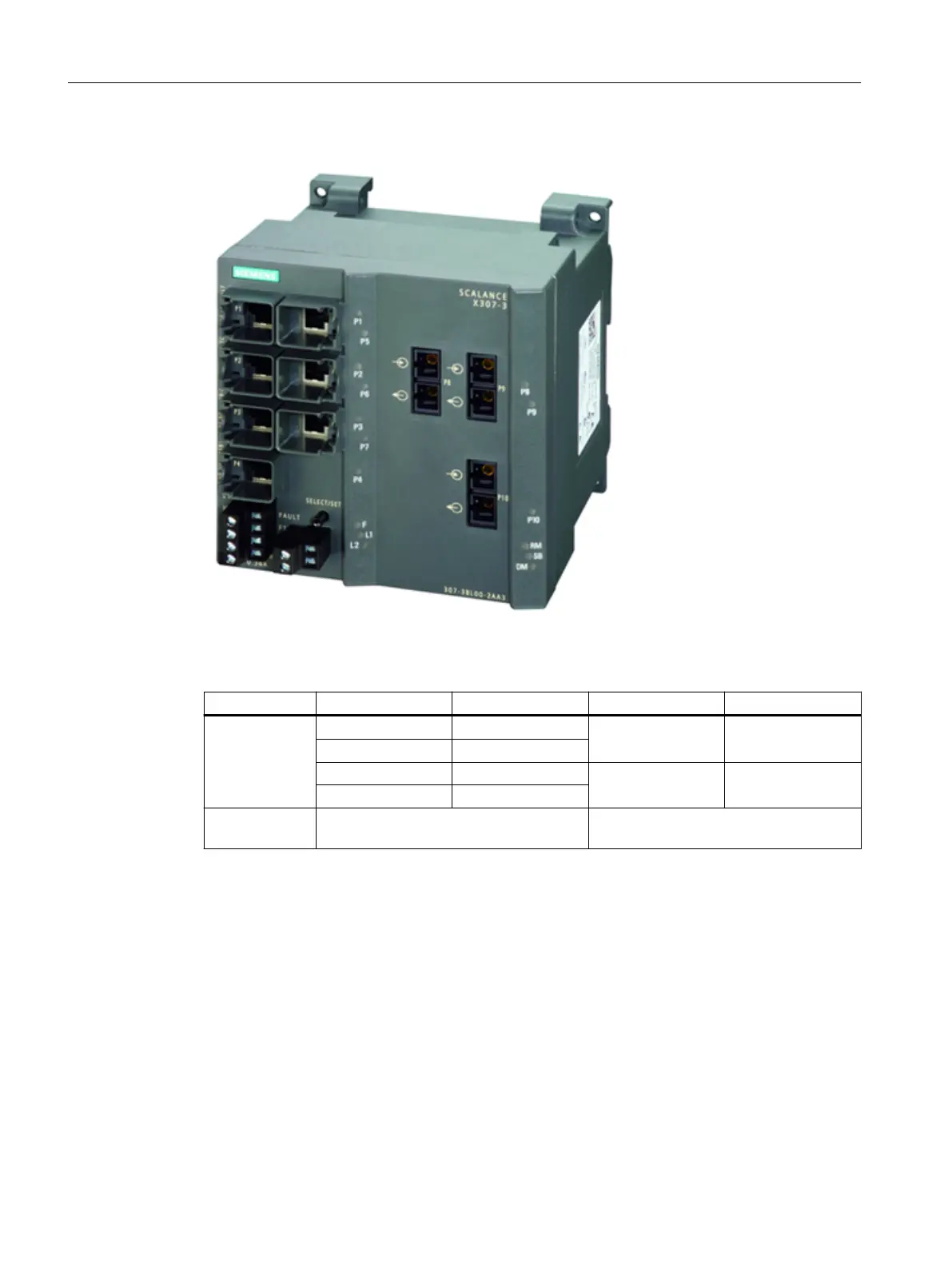

Figure 4-4 SCALANCE X307-3
Column 1 2 3 4
Port number P1 P5 P8 P9
P2 P6
P3 P7 - P10
P4 -
Connection
type
Electrical: Fast Ethernet Optical: Gigabit Ethernet
4.4.1.4 SCALANCE X307-3LD product characteristics
Possible attachments
The SCALANCE X306-3LD provides the following options for the connection of end devices or
other network segments:
● 7 RJ-45 jacks
● 3 FO ports (for single mode fiber)
Description of the device
4.4 Product properties and device views
SCALANCE X-300
52 Operating Instructions, 11/2019, A5E01113043-24
