4.4.5 XR-300M EEC product group
4.4.5.1 SCALANCE XR324-4M EEC product characteristics
Connection options with the SCALANCE XR324-4M EEC
The SCALANCE XR324-4M EEC is a partially modular device and has 24 ports.
● 16 fixed ports in the base device:
16 RJ-45 jacks for connection of end devices or other network segments.
● 8 modular ports via module slots:
4 modules can be combined using slots (S1-S4) depending on the application. End devices
and other network segments are connected according to the modules being used.

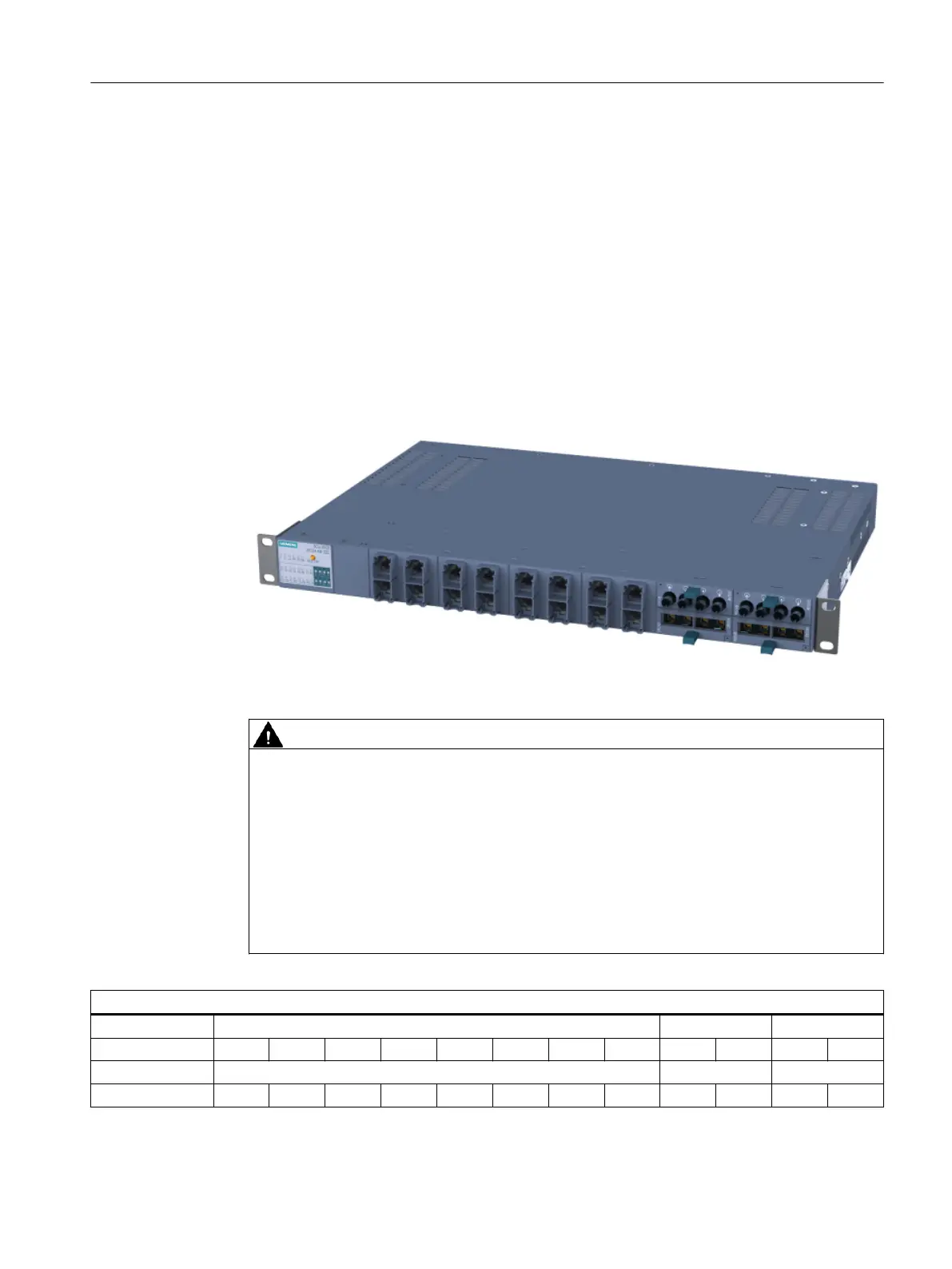

Figure 4-22 XR324-4M EEC
CAUTION
Use only approved media modules
If you use media modules that are not approved by Siemens AG, there is no guarantee that
the device will function according to the specification.
If you use unapproved media modules, this can lead to the following problems:
● Damage to the device
● Loss of the approvals
● Violation of the EMC regulations
Use only approved media modules.
Slot number S1 S2
Port number P1 P2 P3 P4 P5 P6 P7 P8 P1 P2 P1 P2
Slot number S3 S4
Port number P9 P10 P11 P12 P13 P14 P15 P16 P1 P2 P1 P2
Description of the device
4.4 Product properties and device views
SCALANCE X-300
Operating Instructions, 11/2019, A5E01113043-24 71
