Column 1 2 3 4
Port number - P1 P5 P7
- P2
- P3 P6 P8
- P4
Connection type - Optical:
Gigabit Ethernet
Connection type depending on module
used
4.4.3 Product group XR-300M
4.4.3.1 SCALANCE XR324-12M product characteristics
Possible attachments
The SCALANCE XR324-12M is a fully modular device and has 24 ports.
● 0 fixed ports on the base device
● 24 modular ports via module slots:
12 media modules (optical or electrical as required) can be combined using slots (S1-S12)
depending on the application. End devices and other network segments are connected
according to the modules being used.
Note
When shipped, the slots for the media modules have a dummy cover fitted.

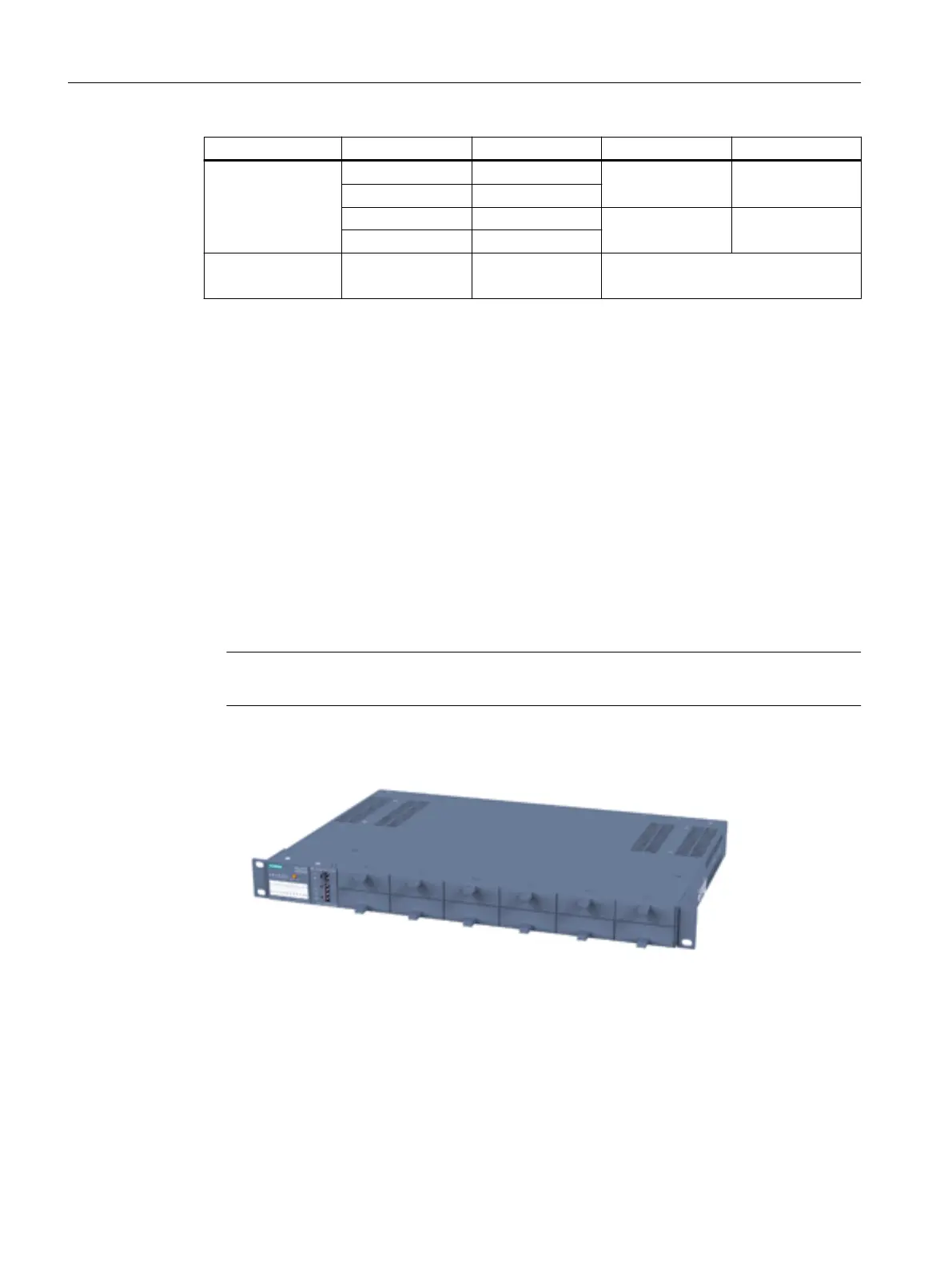

Figure 4-16 SCALANCE XR324-12M with blind covers
Description of the device
4.4 Product properties and device views
SCALANCE X-300
64 Operating Instructions, 11/2019, A5E01113043-24
