3.5 Redundant coupling of network segments
Redundant coupling of network segments
The example of redundant coupling of two network segments as shown here, for example rings
with a redundancy manager, can be implemented homogeneously with all SCALANCE X300
variants.
HMI
S7-1200
SCALANCE
X310
SCALANCE
X310
SCALANCE
X310
SCALANCE
X310
SCALANCE
X308-2
SCALANCE
X308-2
SCALANCE
X308-2
SCALANCE
X308-2
S7-1500
S7-1500
S7-1200
Stand-by
Master
Stand-by
Slave
1000 Mbit/s
1000 Mbit/s
1000 Mbit/s
S7-1200
S7-1500
PC
IPC
Industrial Ethernet

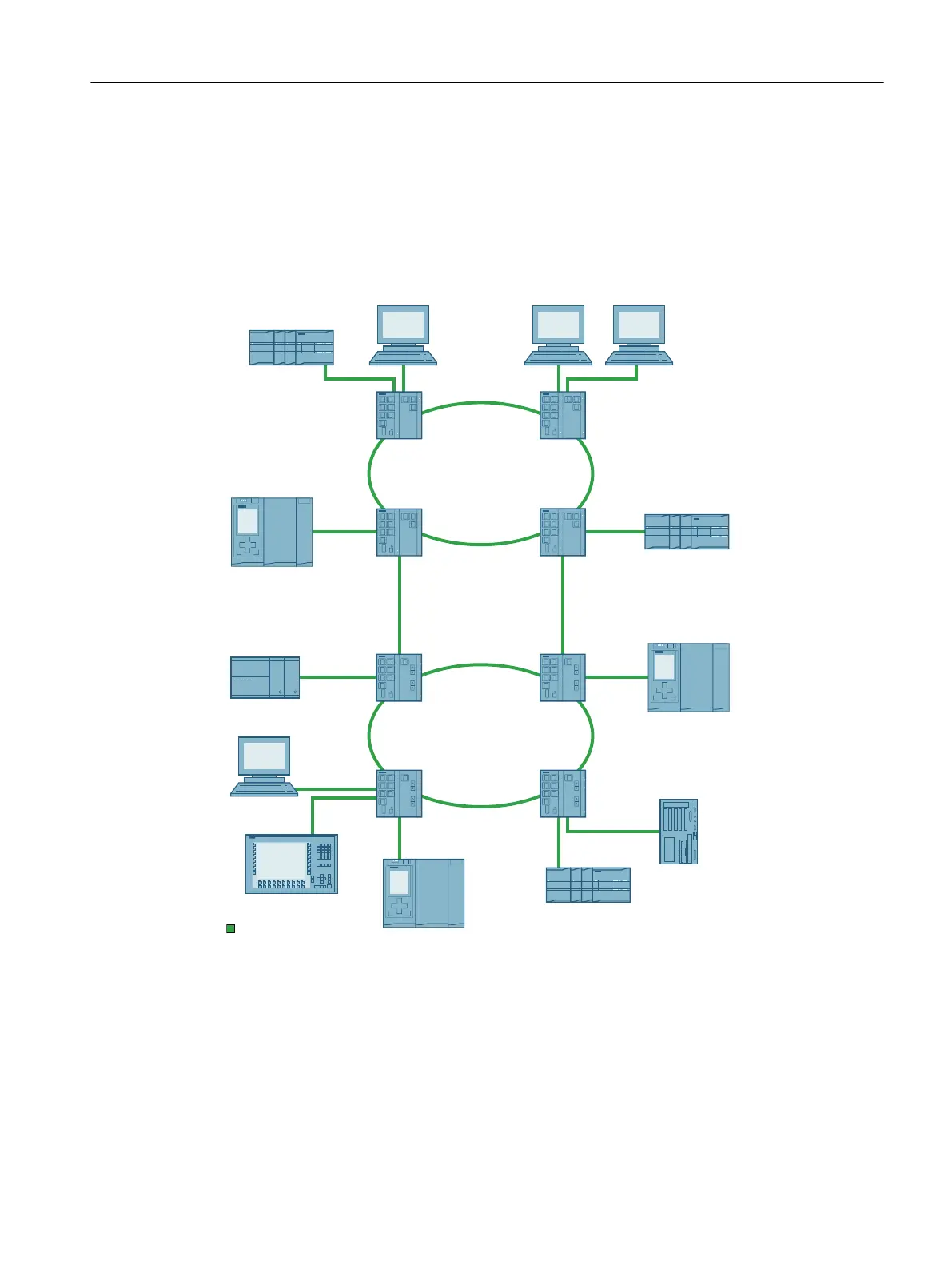

Figure 3-4 Redundant coupling of two subnets in mixed operation with SCALANCE X310 and
SCALANCE X308‑2
In this case, network segments are rings with a redundancy manager (RM). The rings can also
be interrupted at one point (linear topology).
For a redundant link as shown in the figure, two IE Switches X-300 must be configured within
a network segment. This configuration is set in Web Based Management, Command Line
Interface or using SNMP access. For more detailed information, refer to the "Configuration
Manual SCALANCE X‑300 and SCALANCE X-400 Industrial Ethernet Switches". The two
Network topologies
3.5 Redundant coupling of network segments
SCALANCE X-300
Operating Instructions, 11/2019, A5E01113043-24 27
