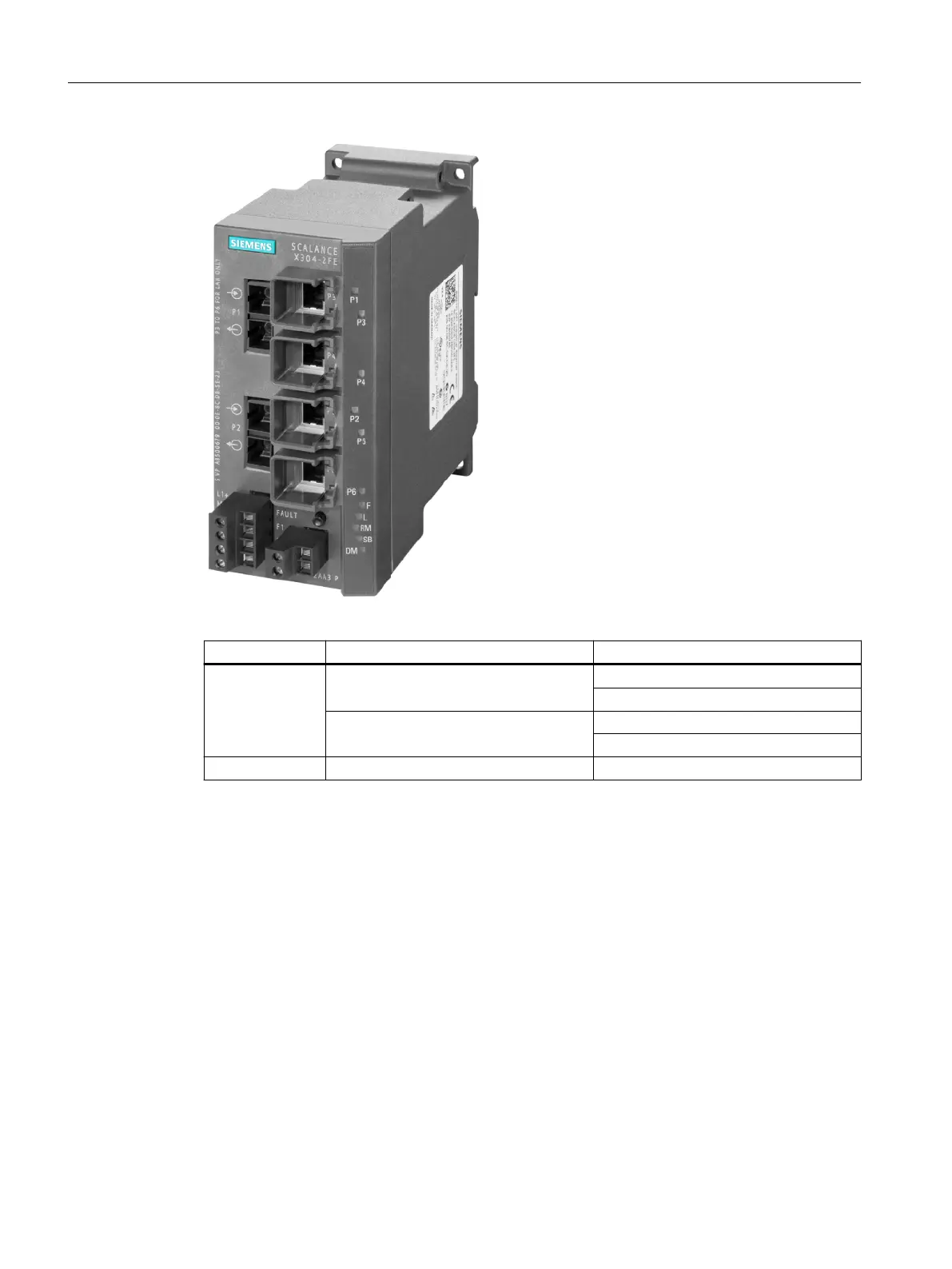

Figure 4-2 X304-2FE
Column 1 2
Port number P1 P3
P4
P2 P5
P6
Connection type Optical: Fast Ethernet Electrical: Fast Ethernet
4.4.1.2 SCALANCE X306-1LD FE product characteristics
Possible attachments
The SCALANCE X306-1LD FE provides the following options for the connection of end devices
or other network segments:
● 6 RJ-45 jacks
● 1 FO port (for single mode fiber)
Description of the device
4.4 Product properties and device views
SCALANCE X-300
50 Operating Instructions, 11/2019, A5E01113043-24
