Column 1 2 3 4
Port number - P1 (gigabit Ethernet) P5 (gigabit multimode fiber-
optic cable, SC ports)
P7
(interface depends on SFP
used)
- P2 (gigabit Ethernet)
- P3 (gigabit Ethernet) P6 (gigabit multimode fiber-
optic cable, SC ports)
P8(interface depends on SFP
used)
- P4 (gigabit Ethernet)
4.4.7 Product group XR-300M PoE
4.4.7.1 SCALANCE XR324-4M PoE product characteristics
Connection options of the SCALANCE XR324‑4M PoE and XR324‑4M PoE TS switches
The switches are partly modular devices and all have 24 ports.
● 16 fixed ports on the base device:
– Ports P1 to P8
8 PoE-compliant gigabit ports (RJ-45 jacks with securing collars) for connection of end
devices or other network segments.
Non PoE-compliant end devices can also be connected to the PoE-compliant RJ-45
jacks because the switches check that the end devices are suitable for the PoE function
before applying the power.
– Ports P9 to P16
8 gigabit ports (RJ-45 jacks with securing collars) for connection of end devices or other
network segments (no PoE).
● 8 modular ports via 4 module slots:
4 media modules each with 2 ports are combined optically or electrically via the slots S1 to
S4 depending on the application. End devices and other network segments are connected
according to the media modules being used.

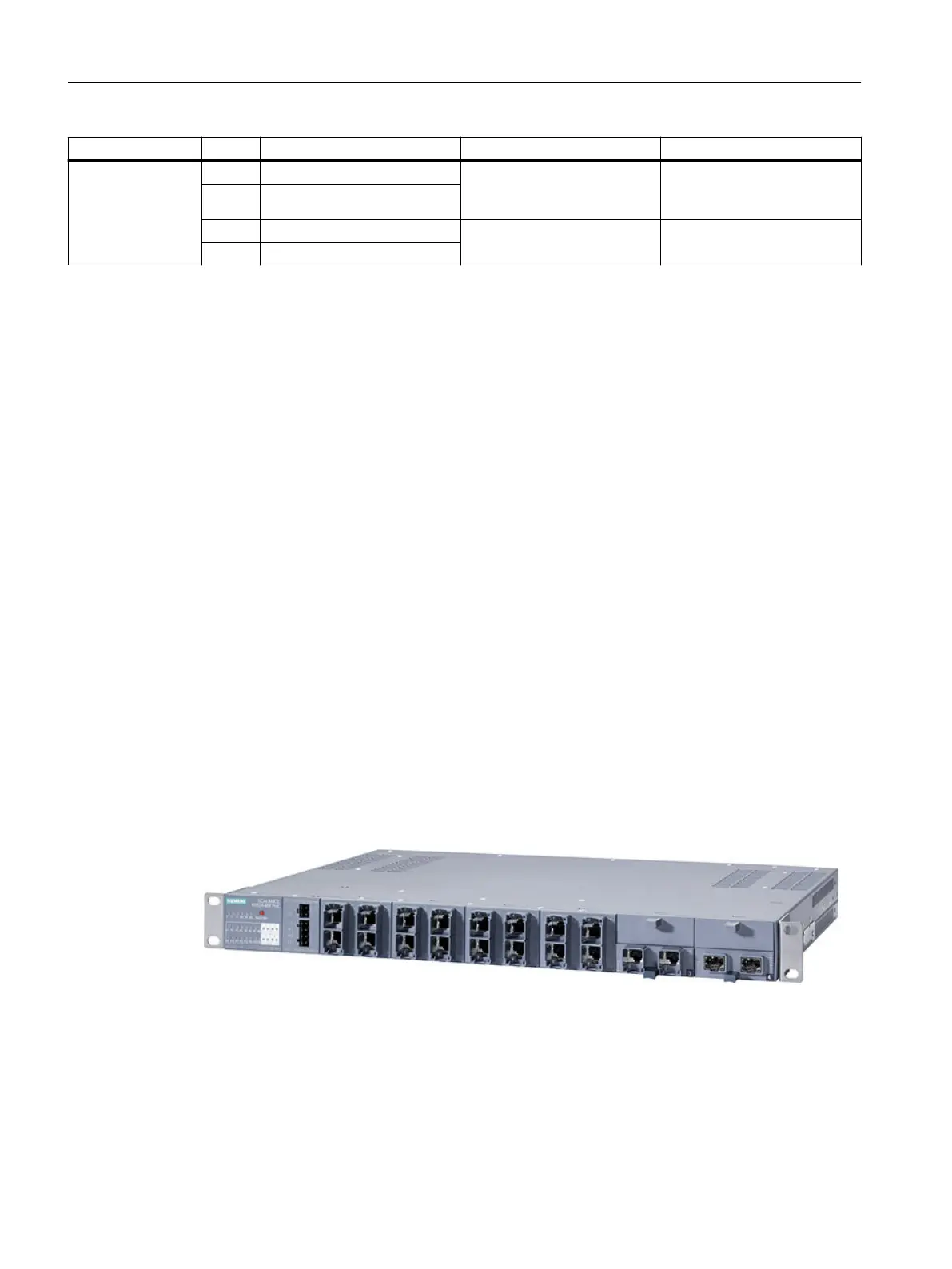

Figure 4-25 XR324-4M PoE and XR324-4M PoE TS
Description of the device
4.4 Product properties and device views
SCALANCE X-300
74 Operating Instructions, 11/2019, A5E01113043-24
