Possible attachments (example)
CAUTION
Use only approved media modules in the module slots
The connection of end devices or other network segments does not depend on the module
slot, but rather on the selected media module.
Refer to the section Media module installation in slot.
Example: Fitted with media modules MM992-2 and MM991-2

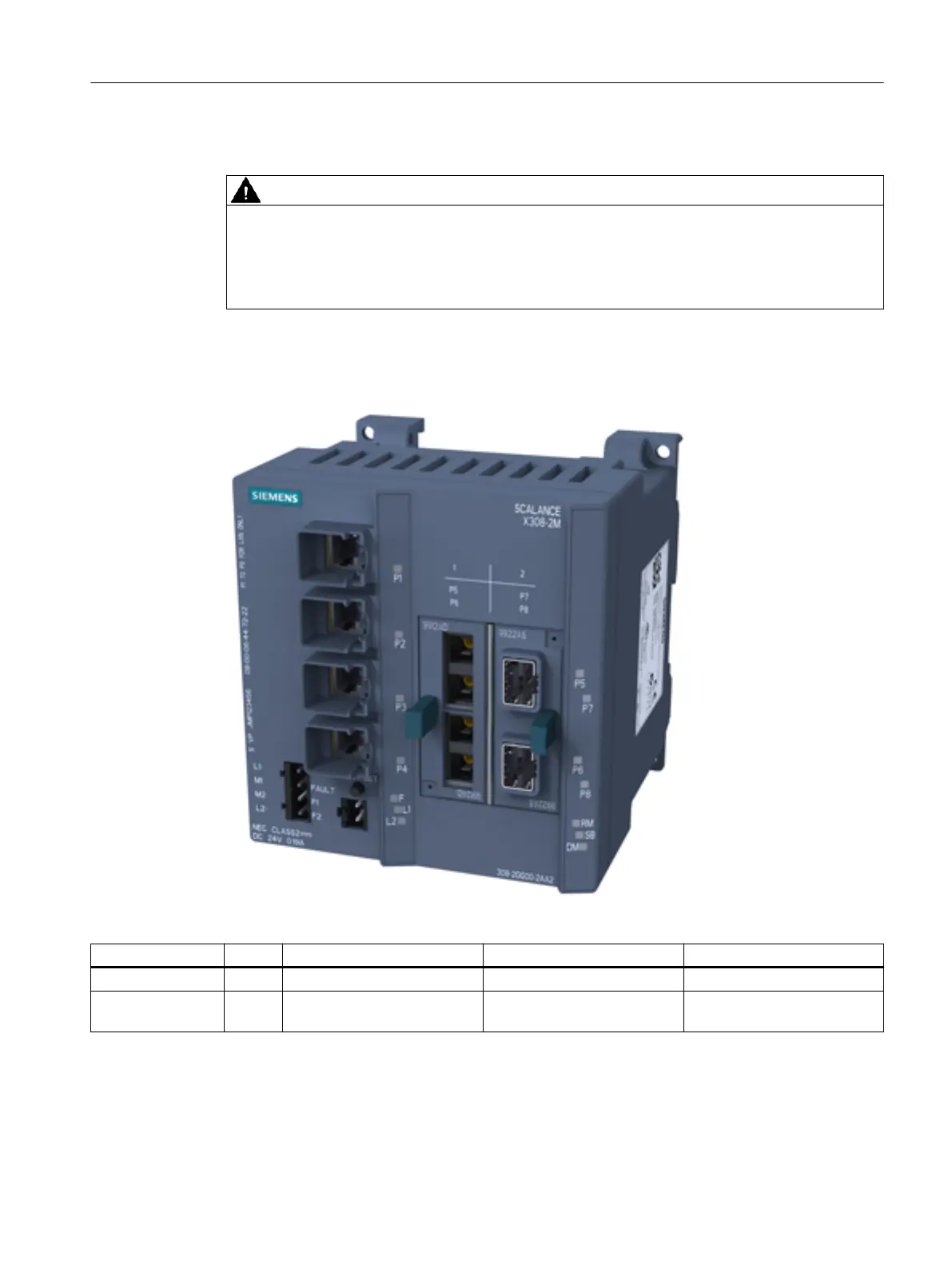

Figure 4-24 SCALANCE X308-2M PoE with MM992-2 and MM992-2SFP
Column 1 2 3 4
Slot number - - S1 S2
Media
modules used
- - MM992-2 MM992-2SFP
Description of the device
4.4 Product properties and device views
SCALANCE X-300
Operating Instructions, 11/2019, A5E01113043-24 73
