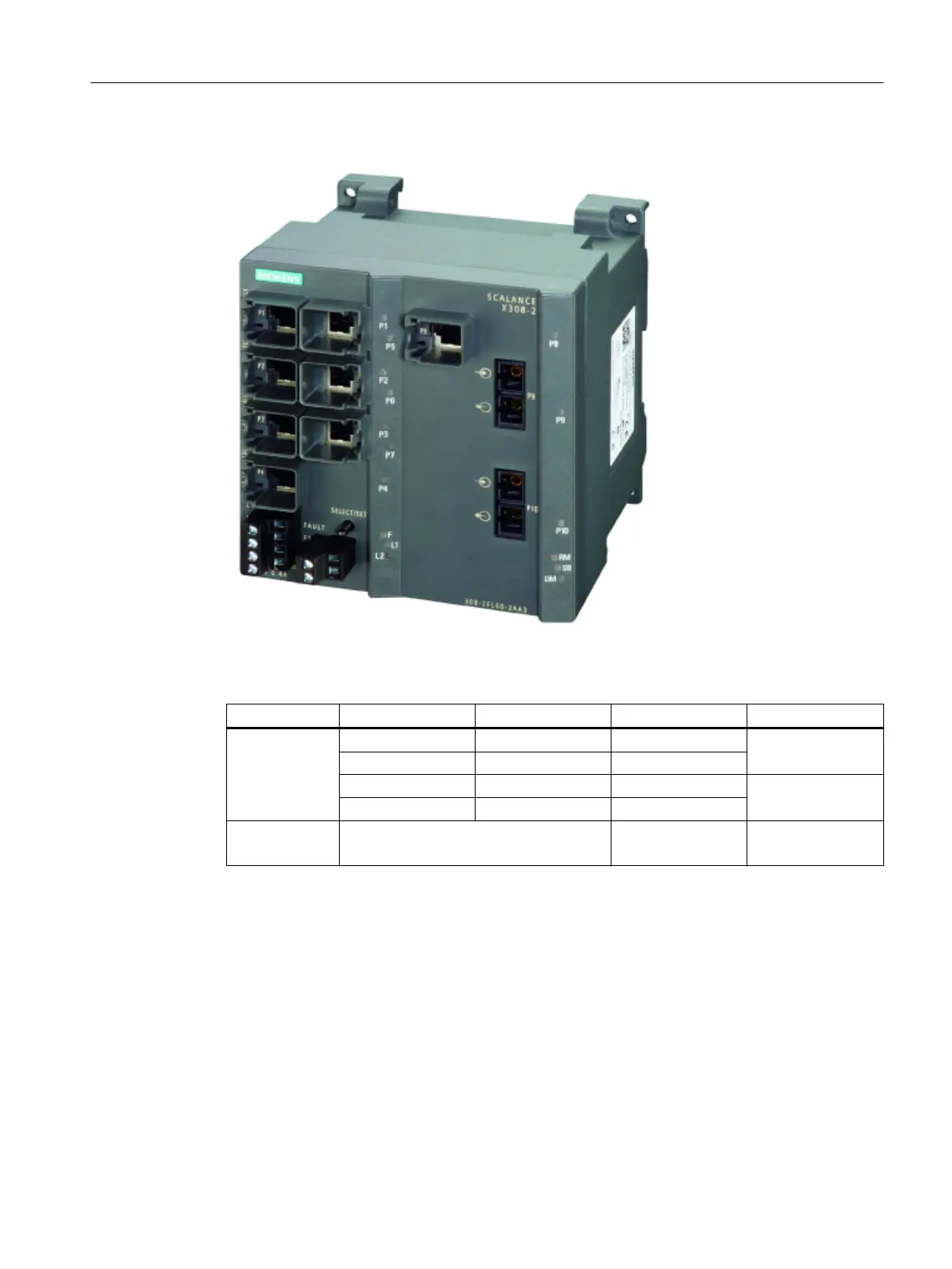

Figure 4-7 SCALANCE X308-2LH+
Column 1 2 3 4
Port number P1 P5 P8 P9
P2 P6 -
P3 P7 - P10
P4 - -
Connection
type
Electrical: Fast Ethernet
Electrical:
Gigabit Ethernet
Optical:
Gigabit Ethernet
4.4.1.7 SCALANCE X308-2 product characteristics
Possible attachments
The SCALANCE X308-2 provides the following options for the connection of end devices or
other network segments:
● 8 RJ-45 jacks
● 2 FO ports (for multimode fiber)
Description of the device
4.4 Product properties and device views
SCALANCE X-300
Operating Instructions, 11/2019, A5E01113043-24 55
