Siemens SCALANCE X-300 Series - X-300 Product Group

2SWLFDO
SRUWPHGLDPRGXOHV
DUHSOXJJHGLQWRWKH
GHYLFH
6)3PHGLDPRGXOHV
WZR6)3VORWVDUHSOXJJHG
LQWRWKHGHYLFH
2SWLFDO
6)3WUDQVFHLYHUV
RQHSRUWDUHSOXJJHGLQWR
WKH6)3PHGLDPRGXOH
(OHFWULFDO
SRUWPHGLDPRGXOHV
DUHSOXJJHGLQWRWKH
GHYLFH
G_IK10_XX_10282

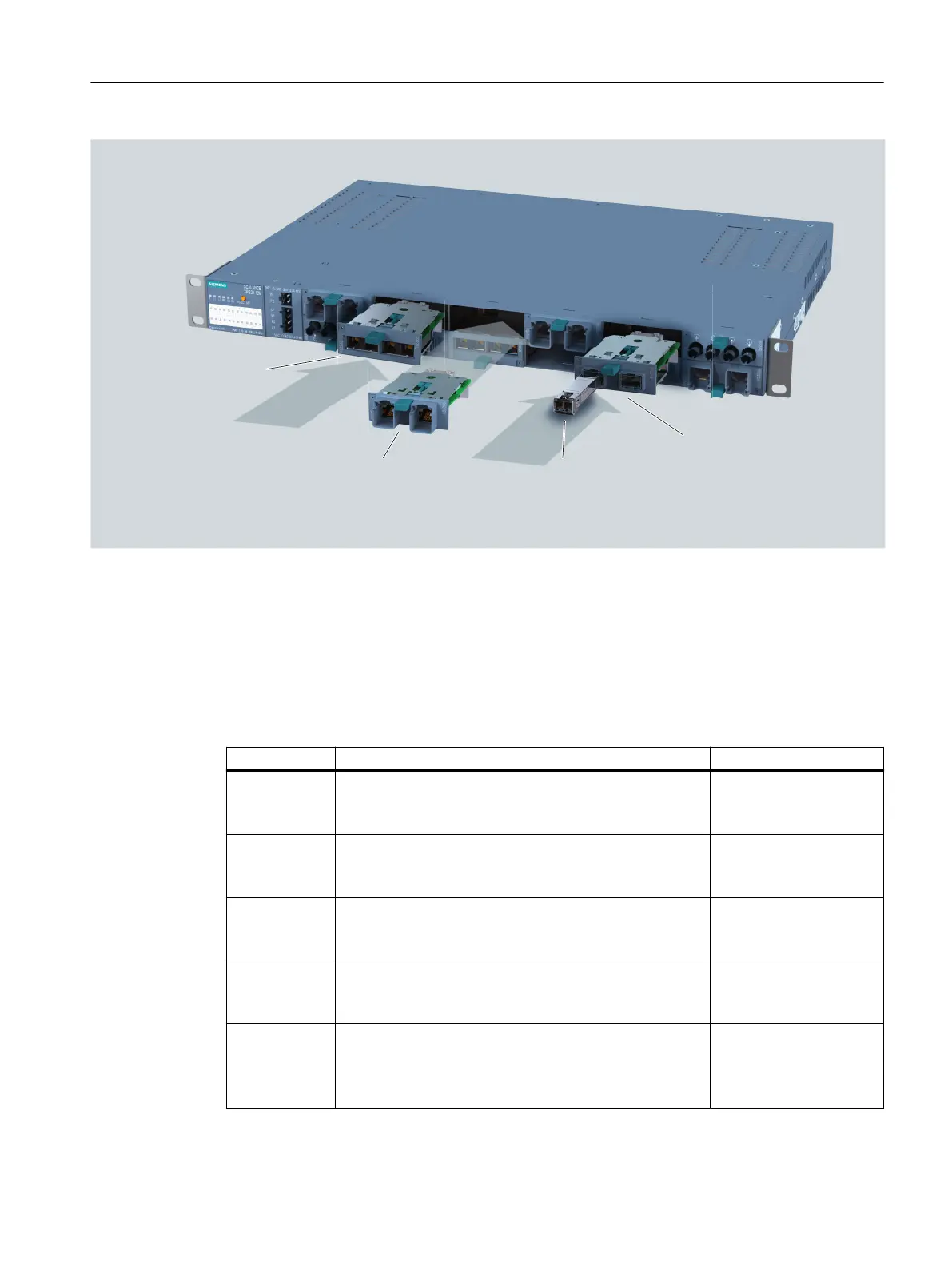

Figure 4-1 Designs of the X-300 IE switches, example of plugging media modules into the media module slotsof the
XR324-12M
4.2.3 X-300 product group
Article numbers
Device Properties Article number
X304-2FE 4 x 10/100 Mbps RJ-45 ports electrical
2 x 1000 Mbps, SC ports optical, for glass FO cable (mul‐
timode), up to max. 750 m
6GK5 304-2BD00-2AA3
X306-1LD FE 6 x 10/100 Mbps RJ-45 ports electrical
1 x 100 Mbps, SC port optical, for glass FO cable (single
mode), up to max. 26 km
6GK5 306-1BF00-2AA3
X307-3 7 x 10/100 Mbps RJ-45 ports electrical
3 x 1000 Mbps, SC ports optical, for glass FO cable (mul‐
timode), up to max. 750 m
6GK5 307-3BL00-2AA3
6GK5 307-3BL10-2AA3
X307-3LD 7 x 10/100 Mbps RJ-45 ports electrical
3 x 1000 Mbps, SC ports optical, for glass FO cable (single
mode), up to max. 10 km
6GK5 307-3BM00-2AA3
6GK5 307-3BM10-2AA3
X308-2 1 x 10/100/1000 Mbps, RJ-45 ports electrical
7 x 10/100 Mbps RJ-45 ports electrical
2 x 1000 Mbps, SC ports optical, for glass FO cable (mul‐
timode), up to max. 750 m
6GK5 308-2FL00-2AA3
6GK5 308-2FL10-2AA3
Description of the device
4.2 Product overview
SCALANCE X-300
Operating Instructions, 11/2019, A5E01113043-24 33
