4.4.2 Product group X-300M
4.4.2.1 SCALANCE X308-2M product characteristics
Possible attachments
The SCALANCE X308-2M and X308-2M TS are partly modular devices and each has 8 ports.
● 4 fixed ports in the base device:
4 electrical RJ-45 jacks (with securing collars) for connection of end devices or other
network segments.
● 4 modular ports via module slots:
Two media modules (optical or electrical as required) can be combined using slots (S1-S2)
depending on the application. End devices and other network segments are connected
according to the media modules being used.
Note
When shipped, the slots for the media modules have a dummy cover fitted.

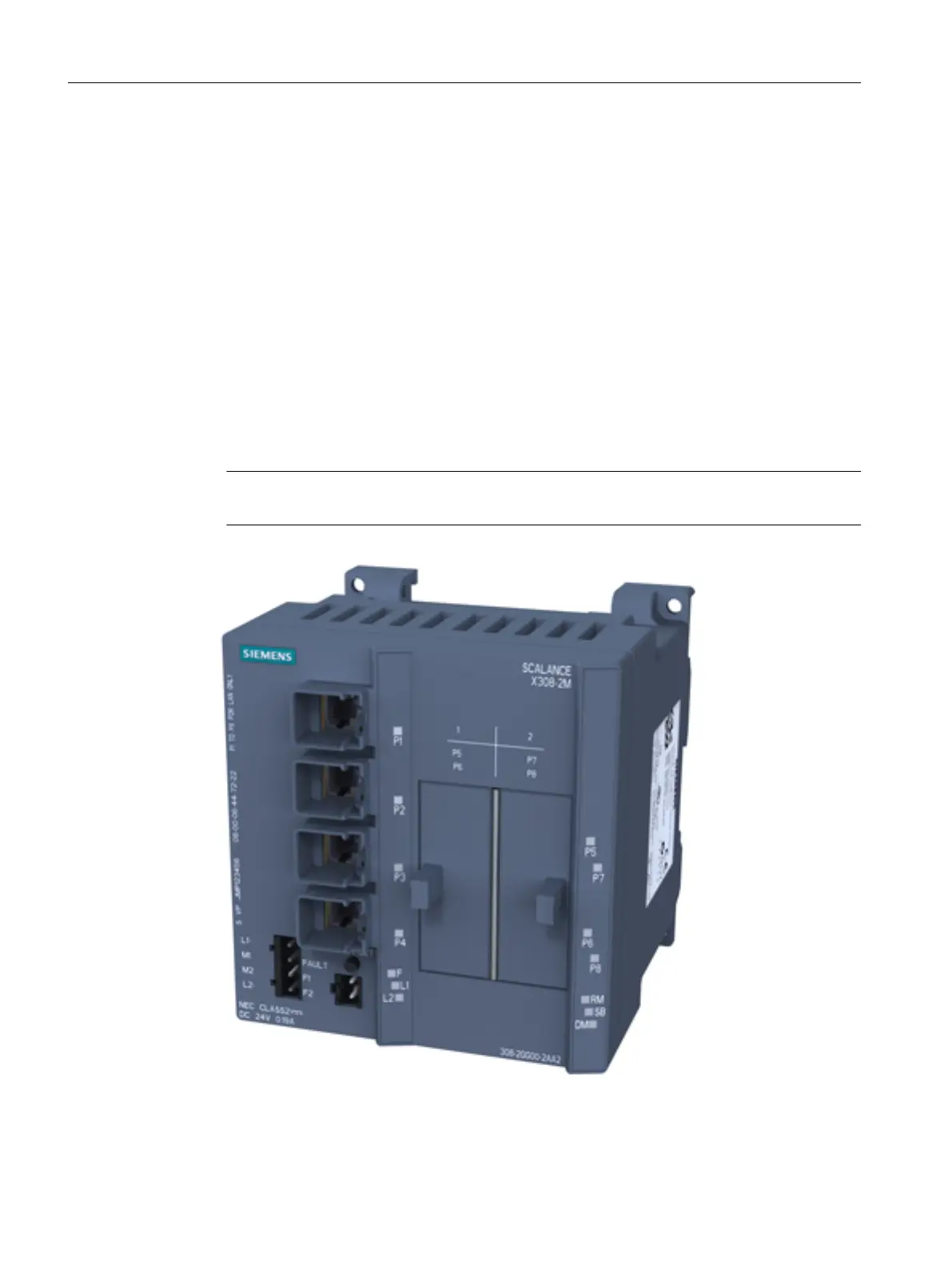

Figure 4-14 SCALANCE X308-2M with dummy covers
Description of the device
4.4 Product properties and device views
SCALANCE X-300
62 Operating Instructions, 11/2019, A5E01113043-24
