Possible attachments (example)
CAUTION
Use only approved media modules in the module slots
The connection of end devices or other network segments does not depend on the module
slot, but rather on the selected media module.
Refer to the section Media module installation in slot.
Example of connections

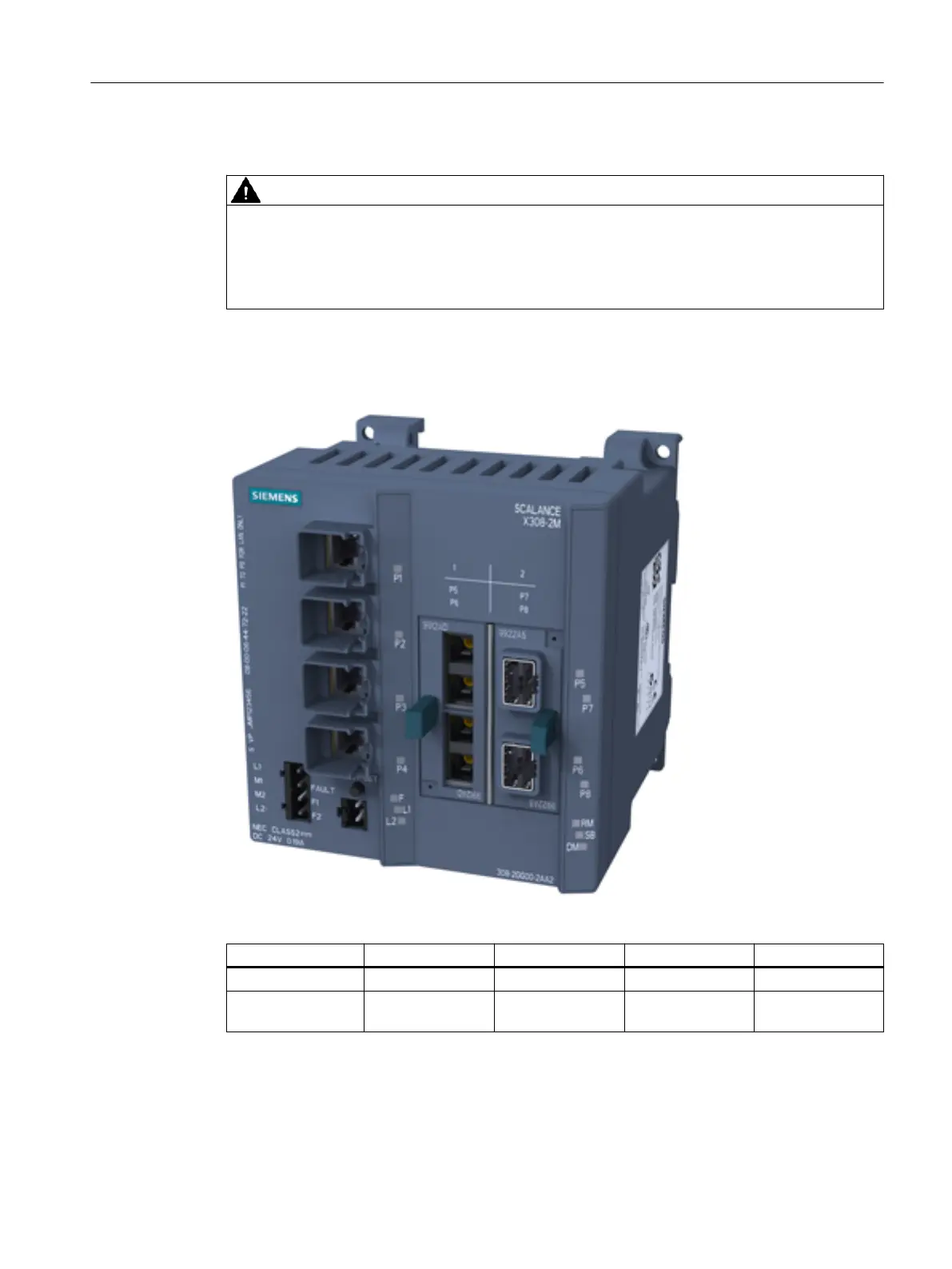

Figure 4-15 SCALANCE X308-2M with MM992-2 and MM991-2
Column 1 2 3 4
Slot number - - S1 S2
Media
modules used
MM992-2 MM991-2
Description of the device
4.4 Product properties and device views
SCALANCE X-300
Operating Instructions, 11/2019, A5E01113043-24 63
