X-300M PoE dimension drawings
All dimensions in the drawings are in millimeters.
Figure 10-24

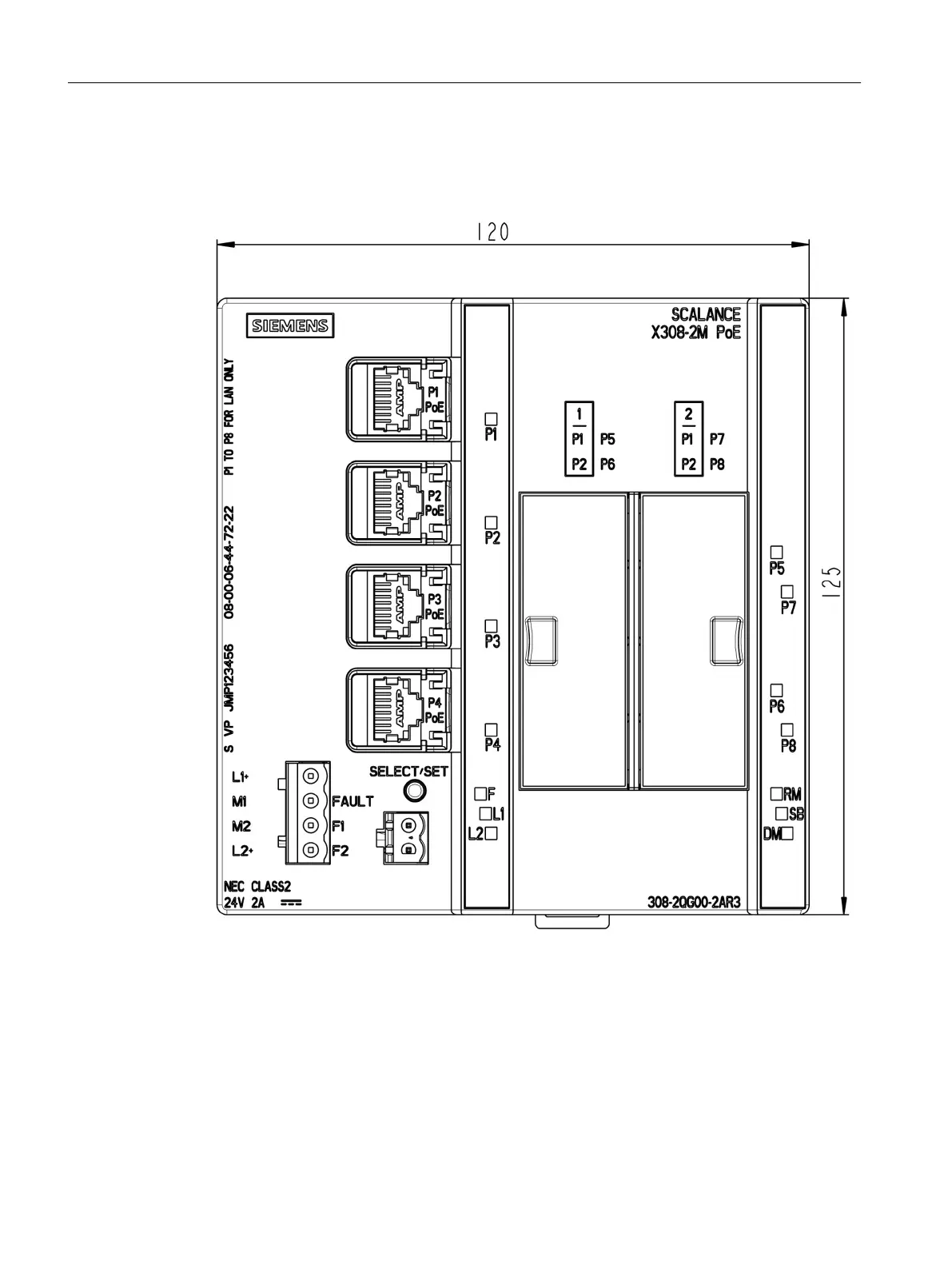

X308‑2M PoE: Front view
Graphics
10.6 X-300M PoE dimension drawings
