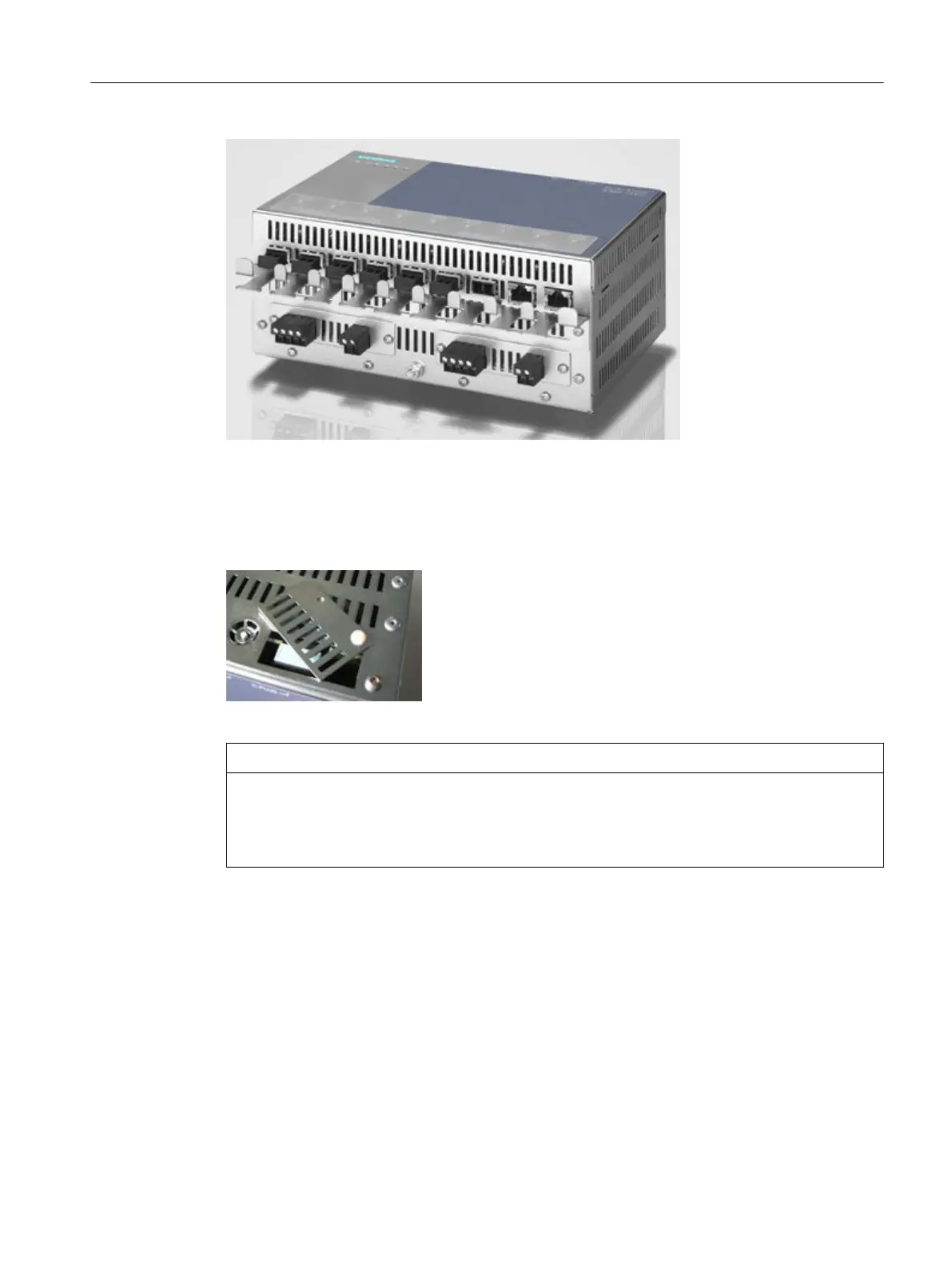

Figure 4-18 SCALANCE X302‑7EEC (from below) with protective bracket and LC connector
Replacing the C‑PLUG
In the X‑300EEC devices, the slot for the C-PLUG is on the top on the housing.
Figure 4-19 C-PLUG of the X‑300EEC
NOTICE
The C-PLUG may only be removed or inserted when the power supply to the device is turned
off.
In a device with a varnished printed circuit board, you may only use a C-PLUG with a
varnished board.
To remove the C-PLUG, open the slider and close it again after inserting the C‑PLUG.
Description of the device
4.4 Product properties and device views
SCALANCE X-300
Operating Instructions, 11/2019, A5E01113043-24 67
