Siemens SCALANCE XB-200 - Link Change

Configuring with Web Based Management
5.4 The "System" menu
SCALANCE XB-200 Web Based Management
118 Configuration Manual, 04/2015, C79000-G8976-C360-02
5.4.15.2
Link Change
Configuration of fault monitoring of status changes on connections
On this page, you configure whether or not an error message is triggered if there is a status
change on a network connection.
If connection monitoring is enabled, an error is signaled
● when there should be a link on a port and this is missing.
● or when there should not be a link on a port and a link is detected.
A fault causes the fault LED on the device to light up and, depending on the configuration,
can trigger a trap, an e-mail, or an entry in the event log table.

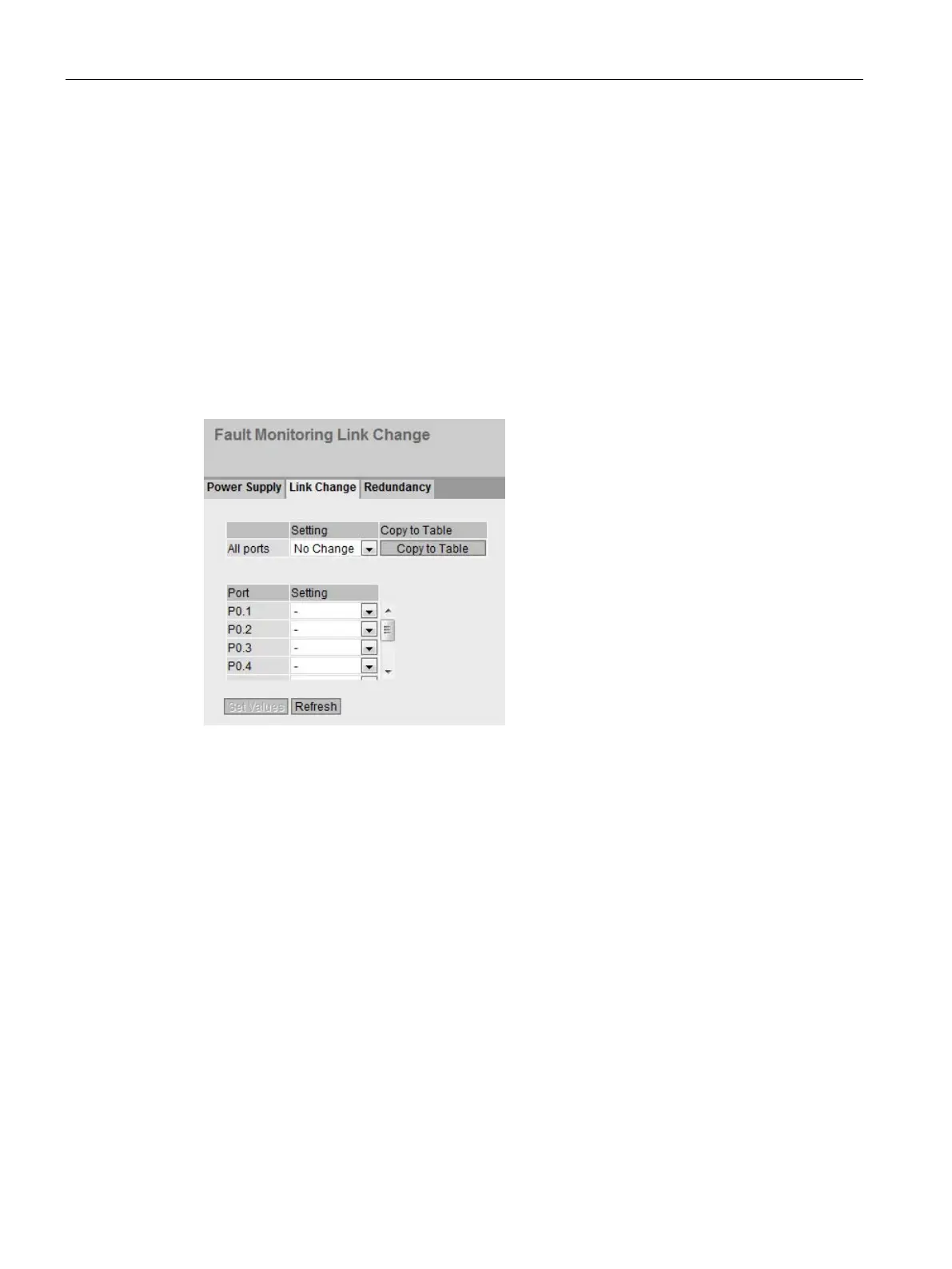

Description of the displayed boxes
Table 1 has the following columns:
●
1st column
Shows that the settings are valid for all ports.
●
Setting
Select the setting from the drop-down list. You have the following setting options:
– "-" (disabled)
– Up
– Down
– No Change: The setting in table 2 remains unchanged.
●
Copy to Table
If you click the button, the setting is adopted for all ports of table 2.
