Configuring with Web Based Management
5.4 The "System" menu
SCALANCE XB-200 Web Based Management
76 Configuration Manual, 04/2015, C79000-G8976-C360-02
●
Select the VLAN ID from the drop-down list. You can only select VLANs that have already
been configured.
Note
Changing the Agent VLAN ID
If the configuration PC is connected directly to the device via Ethernet and you
change
the Agent VLAN ID, the device is no longer reachable via Ethernet following the change.
●
Shows the MAC address of the device. The MAC address is linked to the hardware and
cannot be modified.
1. In the input boxes, enter the IP address, subnet mask and the default gateway.
2. Select the assigned VLAN ID from the "Agent VLAN ID" drop-down list.
3. Click the "Set Values" button.

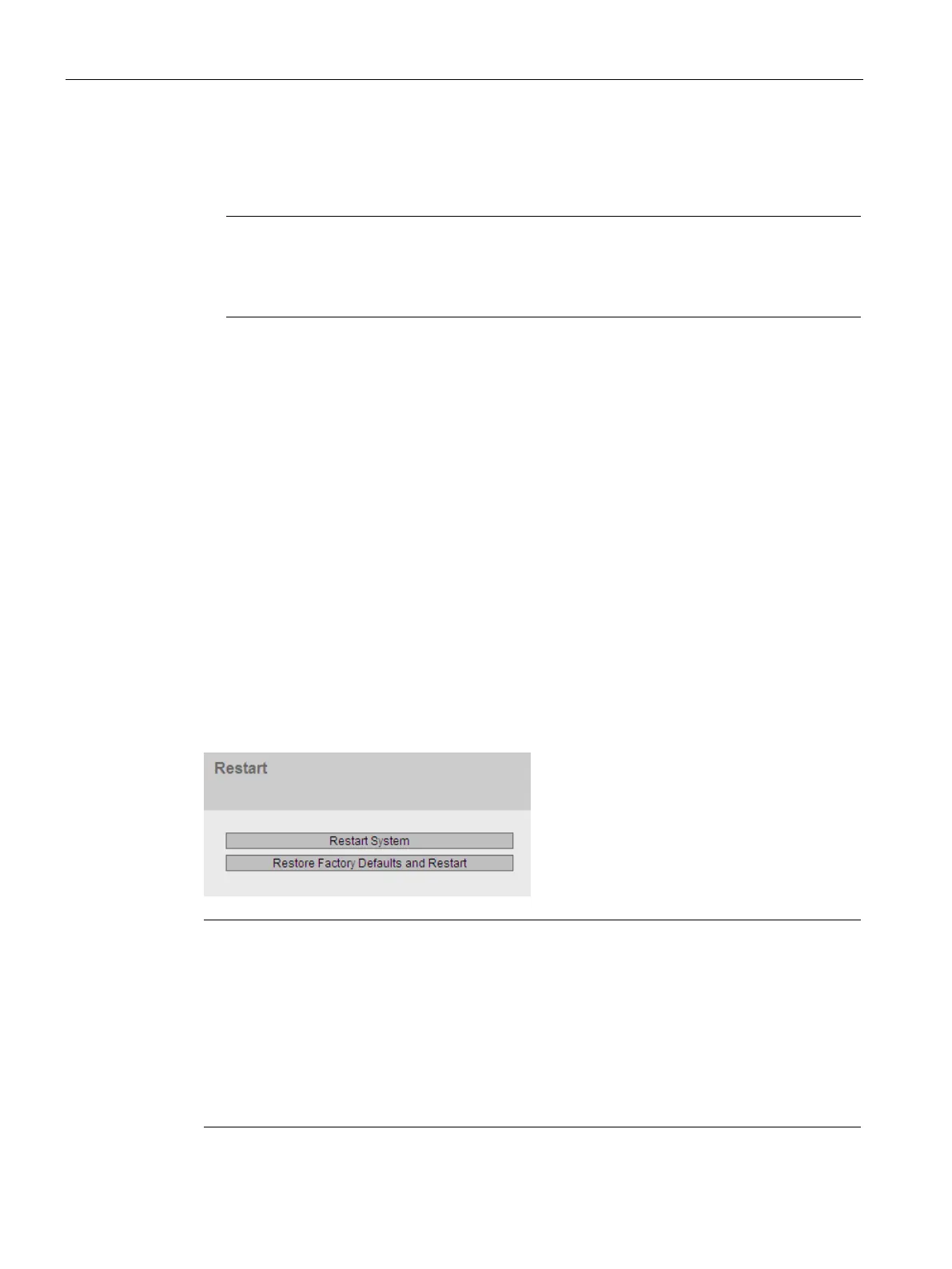

Restart
Resetting to the defaults
In this menu, there is a button with which you can restart the device and the option of
resetting to the factory settings.
Note
Note the following points about restarting a device:
You can only restart the device with administrator privileges.
A device should only be restarted with the buttons of this menu or with the appropriate
CLI commands and not by a power cycle on the device.
Any modifications you have made only become active on the device after clicking
Values" button on the relevant WBM page. If the device is in "Trial Mode", configuration
modifications must be saved manually before a restart. In "Autosave mode", the last
changes are saved automatically before a restart.
