5.5.8
Spanning tree
5.5.8.1
General

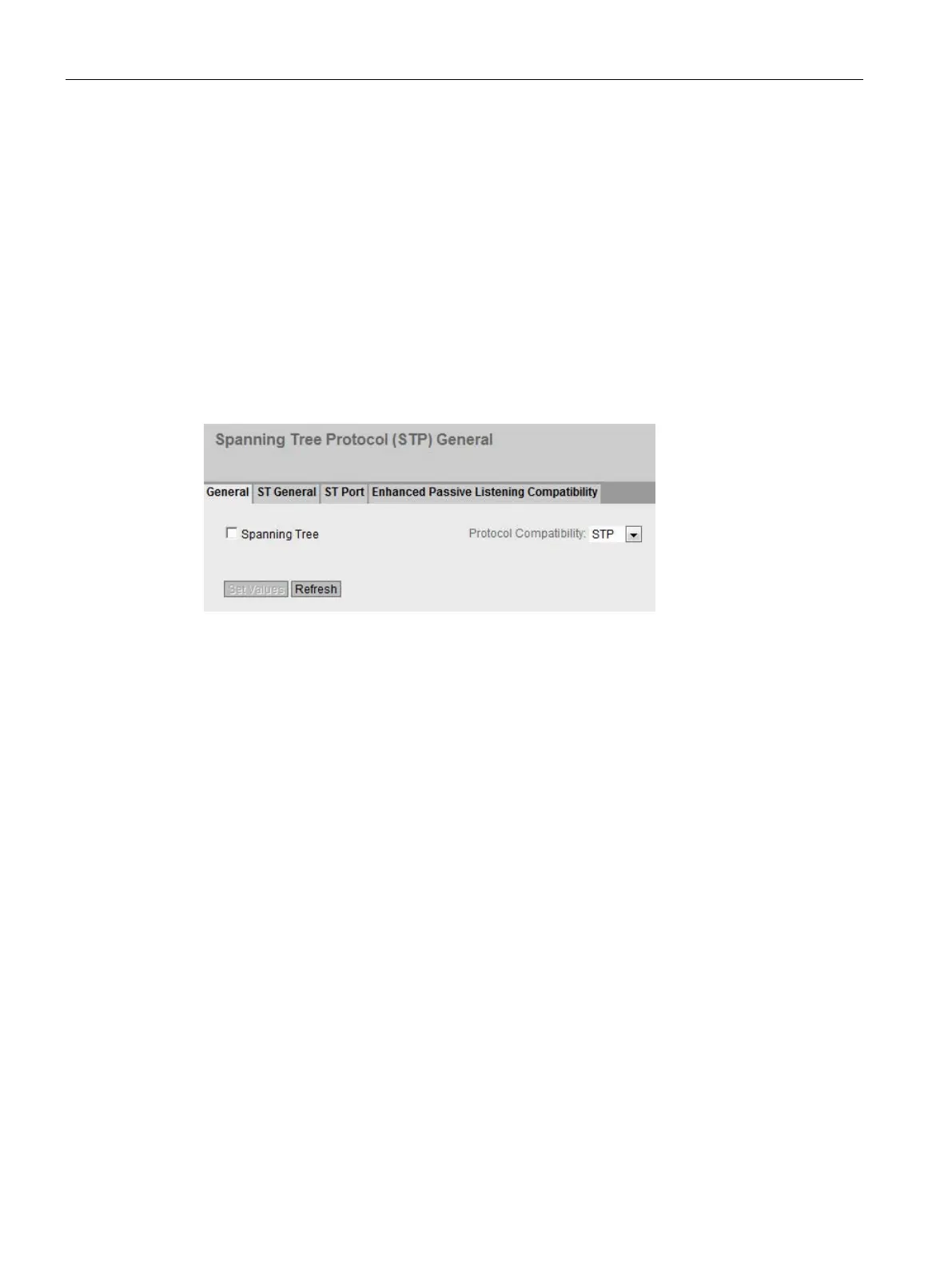

General settings of STP
This is the basic page for spanning tree. Select the compatibility mode from the drop-down
list. As default, Rapid Spanning Tree is enabled.
On the configuration pages of these functions, you can make further settings.
Depending on the compatibility mode, you can configure the corresponding function on the
relevant configuration page.
Description of the displayed boxes
The page contains the following boxes:
●
Spanning Tree
Enable or disable spanning tree.
●
Protocol Compatibility
Select the compatibility mode of STP.
The following settings are available:
– STP
– RSTP
Steps in configuration
1. Select the "Spanning Tree" check box.
2. From the "Protocol Compatibility" drop-down list, select the type of compatibility.
3. Click the "Set Values" button.
