Siemens SIMATIC ET 200eco PN User Manual

ET 200eco PN
229 Operating Instructions, 08/2016, A5E01250250-AJ
Terminal block and voltage distributor
12
12.1
Terminal block
Article number
6ES7194-6CA00-0AA0
Properties
The terminal block has the following properties:
● The terminal block can be inserted and screw-mounted on any I/O device
● It can also be used separately.
● It distributes 10 A per supply voltage 1L+ and 2L+ to the I/O devices. You can tap a
maximum load of 4 A from each supply voltage of the I/O device. The voltages are
protected with two 7.5 A fuses.
Pin assignment
The tables below show the pin assignments.

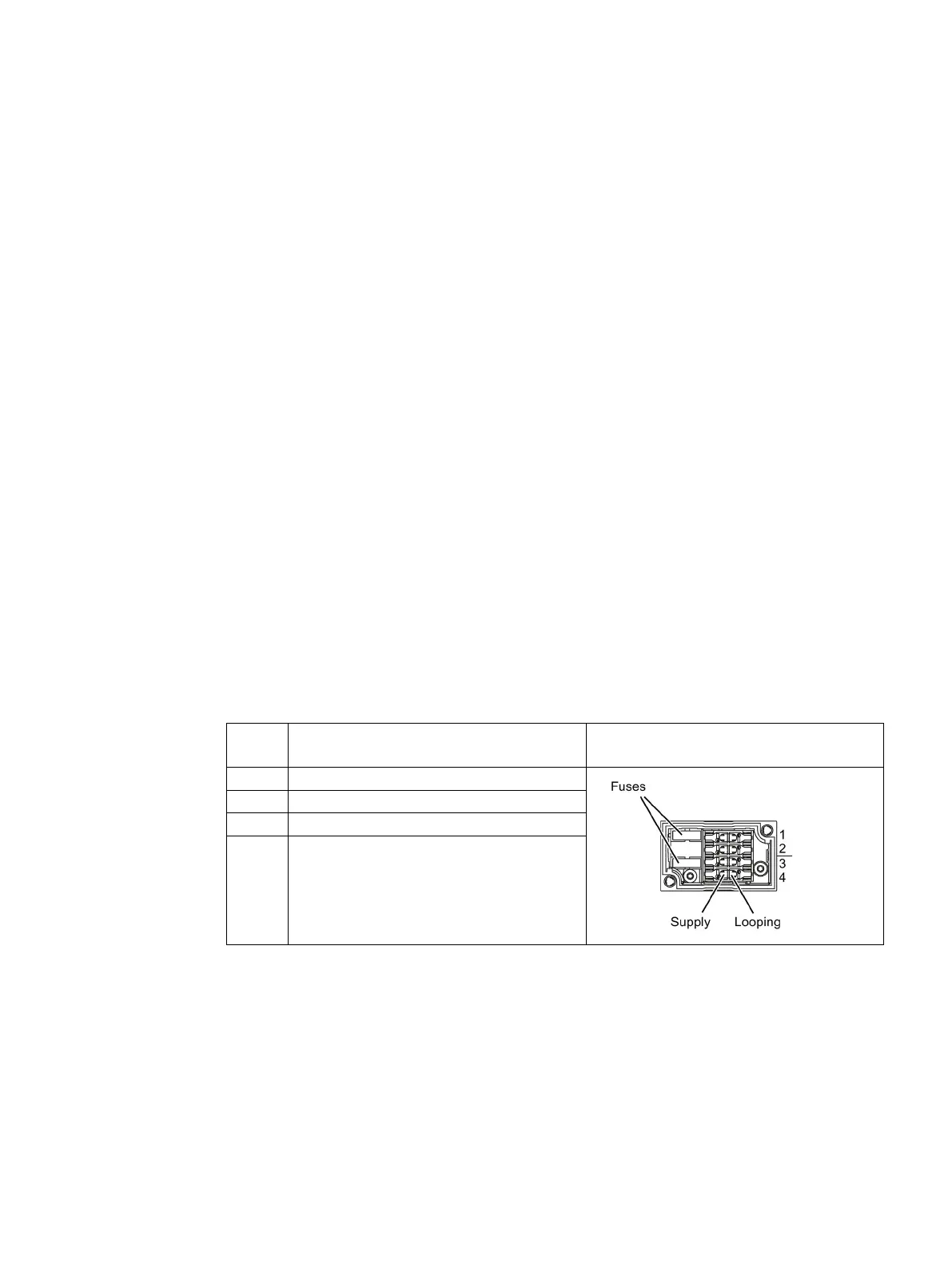

Table 12- 1 Pin assignment of the insulation displacement terminal block.
Pin
Assignment
View of the insulation displacement terminal
block:
1 24 V (1L+ non-switched)
2
Ground 1M (non-switched)
3
24 V (2L+ switched)
4 Ground 2M (switched)
