Siemens SIMATIC TP 270 User Manual

Operate project
9.2 Controlling graphic objects
TP 270, OP 270, MP 270B (WinCC flexible)
Operating Instructions, Edition 03/2004, 6AV6691-1DD01-0AB0
9-27
9.2.6.3 Mouse control
Procedure
Click on the alarm indicator with the mouse pointer. An alarm window opens depending on
the configuration.
Use the Close icon to close the alarm window and operate the screens. The alarm window
can be reopened by clicking on the alarm indicator.

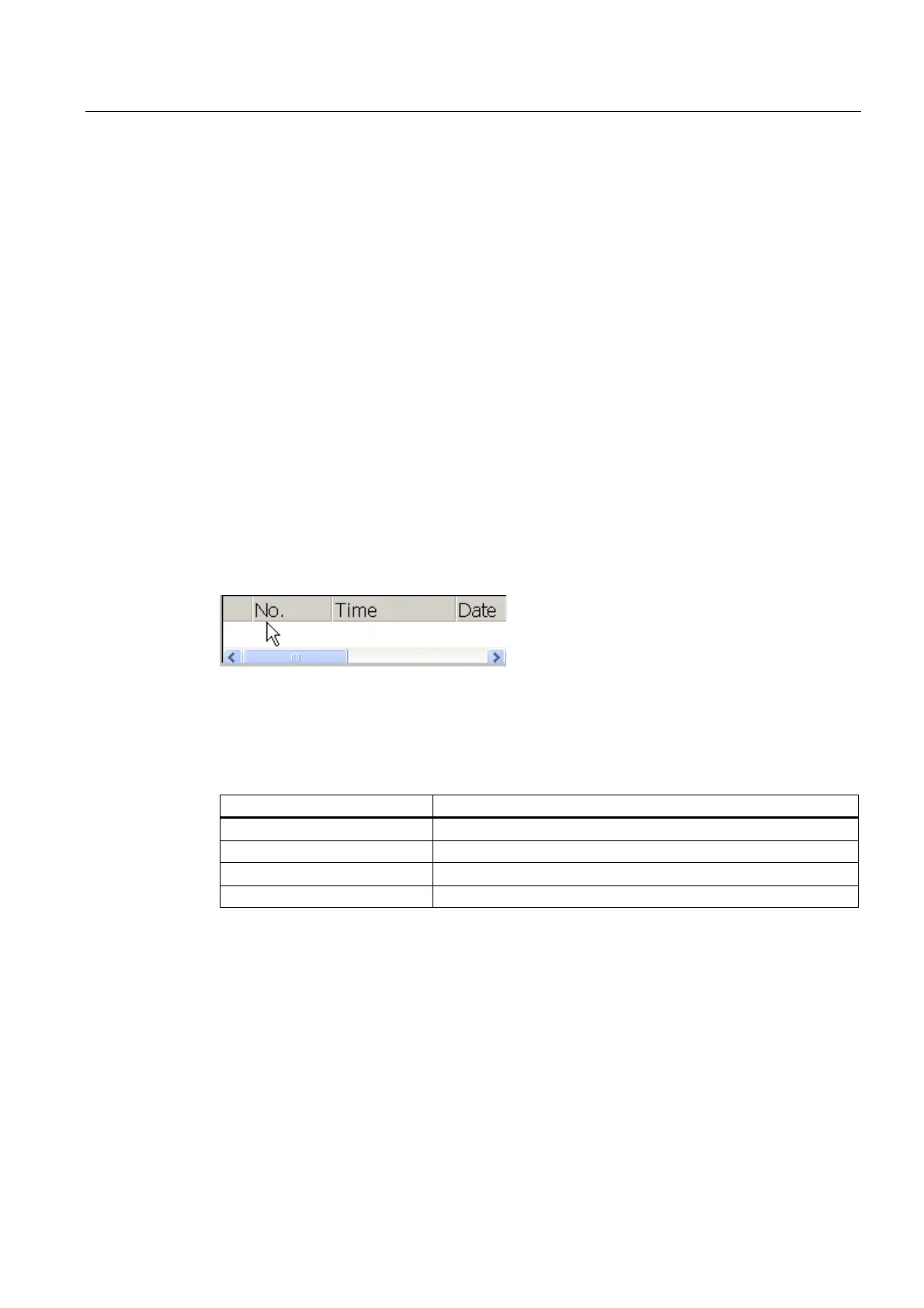

9.2.7 Alarm view
9.2.7.1 Description
Purpose
The alarm view shows alarms or alarm events selected by the planner from the alarm buffer
or, if supported by the HMI device, from the alarm log.
Layout
Alarm classes are identified in the first column of the alarm view to allow for distinguishing
between different alarm classes:
Icon Alarm class
! Fault
(empty) Operation
(depending on configuration) Custom alarm classes
$ System
In Runtime you can configure the column order and the sorting order of each column.
