Prepare and backup project
7.2 Transfer
TP 270, OP 270, MP 270B (WinCC flexible)
Operating Instructions, Edition 03/2004, 6AV6691-1DD01-0AB0
7-5
7.2.3 Transfer mode options
Transfer mode options
The following options can be set for transfer mode:
• The HMI device can be switched to transfer mode automatically when in normal operation
as soon as a transfer is started on the connected configuration computer.
• Select a specific connection type so that transfer can only occur either via a serial
connection, MPI/PROFIBUS-DP, USB or Ethernet connection.
Note
Do not make any other changes when runtime is running or when the HMI device is in
transfer mode.
Setting the communication channel
The "Channel" tab in the Transfer Settings menu can be used to activate the required
communication channel and the "Remote Control" checkbox. In addition to the serial
communication channel, a second channel can also be selected to transfer data from the
configuration computer to the HMI device.

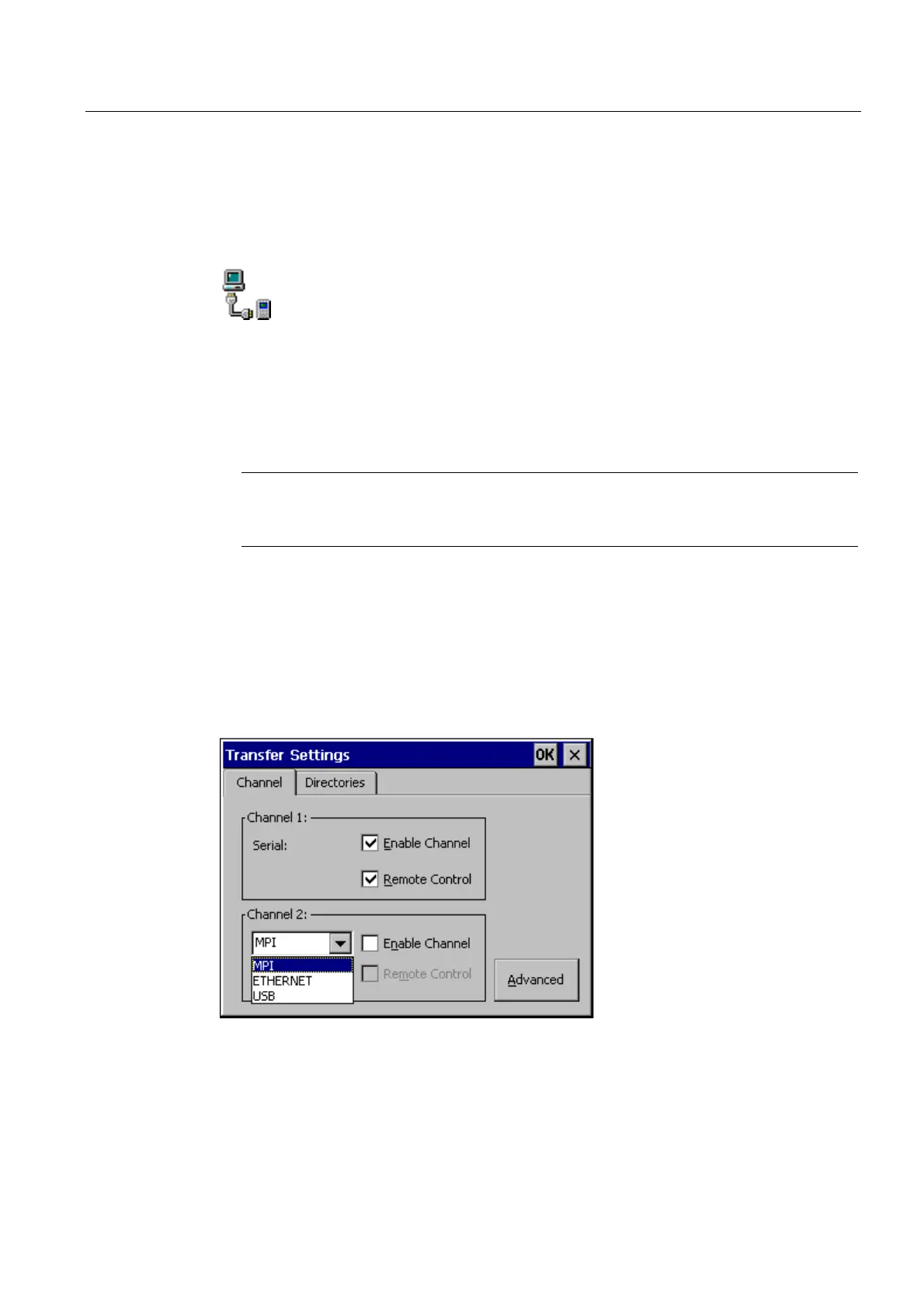

Figure 7-1 "Transfer Settings" dialog, "Channel" tab
Press the "Advanced" button to define the following settings:
• For transfer MPI or PROFIBUS-DP, define the "Address" bus parameter and
"Transmission Rate" and "Highest Station" network parameters.
• Define the driver for transfer via Ethernet.
