Overview
1.4 Features
TP 270, OP 270, MP 270B (WinCC flexible)
1-4 Operating Instructions, Edition 03/2004, 6AV6691-1DD01-0AB0
Result
The HMI device communicates with the PLC and responds to the program progress in the
PLC ("process running phase") according to the information configured.
1.4 Features

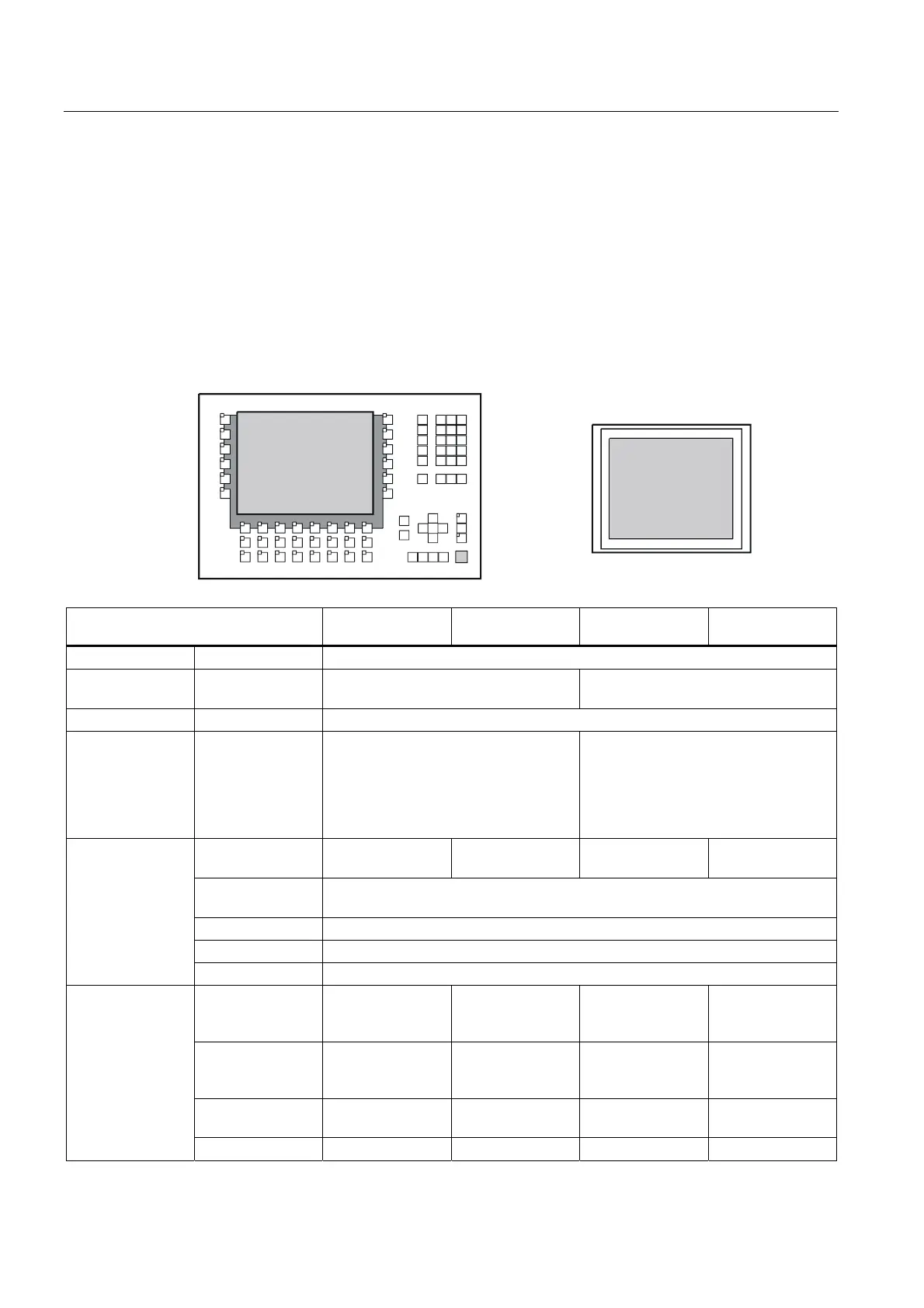

Overview of MP 270B 10", OP 270 10" and TP 270 10"
Features MP 270B 10" Keys MP 270B 10"
Touch
OP 270 10" TP 270 10"
Processor Type RISC CPU
Memory for
configuration
Capacity (max.) 4 MB 2 MB
Software Operating system Microsoft Windows CE
Interfaces Interfaces for
connecting PLC,
PC/PU, printer,
network, external
mouse and
keyboard
• 2 x RS 232, 1 x RS 422, 1 x RS 485
• 1 x PC card slot
• 1 x CF card slot
• 1 x USB
• 1 x Ethernet (RJ45)
• 2 x RS 232, 1 x RS 422, 1 x RS 485
• 1 x CF card slot
• 1 x USB
Type TFT LCD TFT LCD with
touch panel
STN LCD STN LCD with
touch panel
Active screen
diagonals
10,4 "
Resolution (pixels) 640 x 480
Possible colors 256
Color display
Back-lighting CCFL tubes
System keys with
dedicated
functions
38 (3 with LEDs) - 38 (3 with LEDs) -
Softkeys with
configurable
functions
36 (28 with LEDs) - 36 (28 with LEDs) -
Those for local
assignment
20 (12 with LEDs) - 20 (12 with LEDs) -
Membrane
keyboard
Softkey labeling With labeling strips - With labeling strips -
