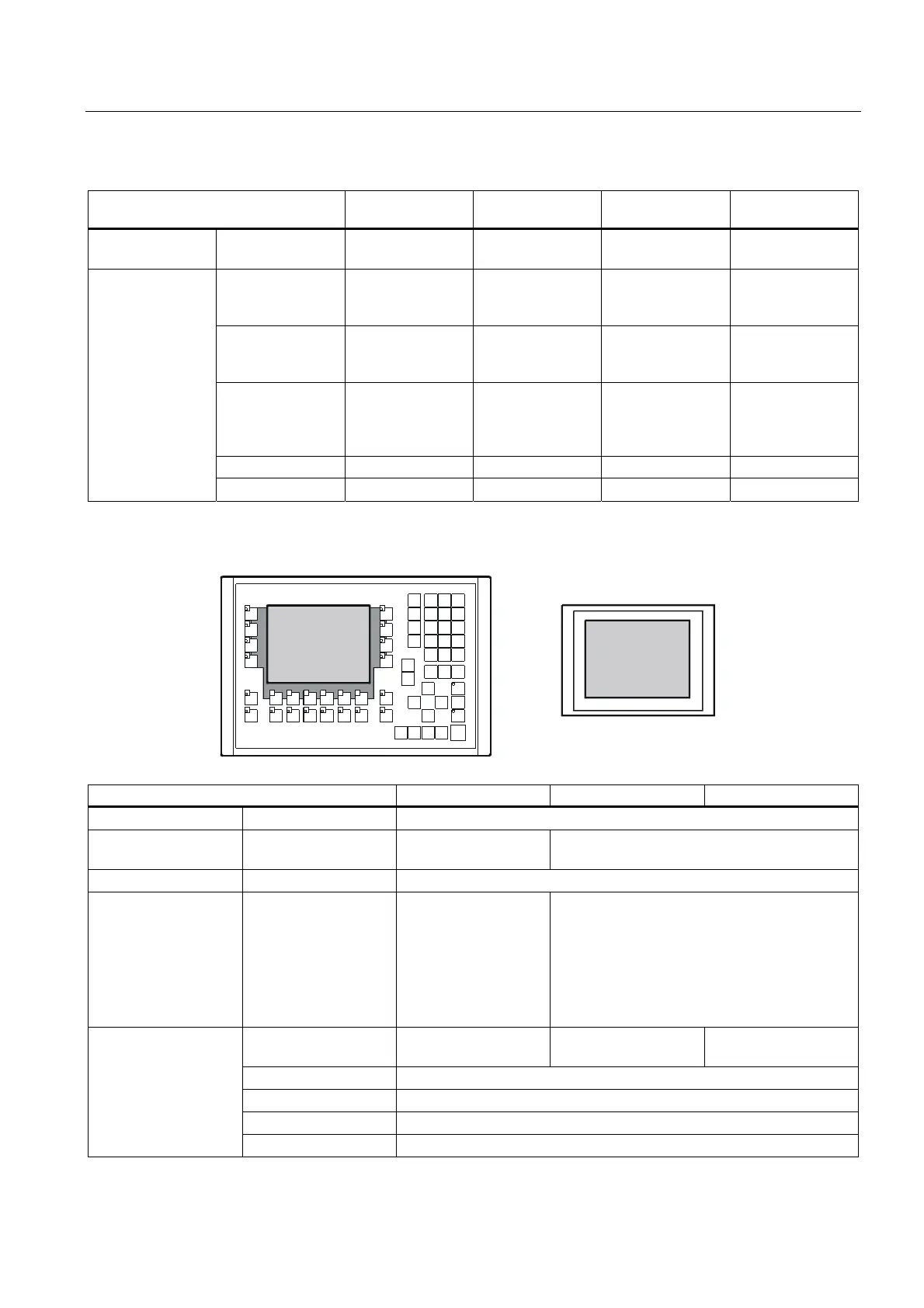

1.4 Features
TP 270, OP 270, MP 270B (WinCC flexible)
Operating Instructions, Edition 03/2004, 6AV6691-1DD01-0AB0
1-5
Features MP 270B 10" Keys MP 270B 10"
Touch
OP 270 10" TP 270 10"
Acoustic
acknowledgement
In the case of
touch control
- x - x
DP direct keys
(touch buttons as
I/O periphery)
- x - x
DP direct keys
(keys as I/O
periphery)
x - x -
External memory
extension for
recipes, logs and
alarms etc.
x x x x
Slot for PC card x x - -
Special features
Slot for CF card x x x x
Overview of MP 270B 6" Touch, OP 270 6" and TP 270 6"
Features MP 270B 6" Touch OP 270 6" TP 270 6"
Processor Type RISC CPU
Memory for
configuration
Capacity (max.) 4 MB 2 MB
Software Operating system Microsoft Windows CE
Interfaces Interfaces for
connecting PLC,
PC/PU, printer,
network, external
mouse and keyboard
• 2 x RS 232, 1 x RS
422, 1 x RS 485
• 1 x PC card slot
• 1 x CF card slot
• 1 x USB
• 1 x Ethernet
(RJ45)
• 2 x RS 232, 1 x RS 422, 1 x RS 485
• 1 x CF card slot
• 1 x USB
Type TFT LCD with touch
panel
CSTN LCD CSTN LCD with touch
panel
Active screen diagonal 5,7 "
Resolution (pixels) 320 x 240
Possible colors 256
Color display
Back-lighting CCFL tubes
