TP 270, OP 270, MP 270B (WinCC flexible)
Operating Instructions, Edition 03/2004, 6AV6691-1DD01-0AB0
12-1
Technical data
12

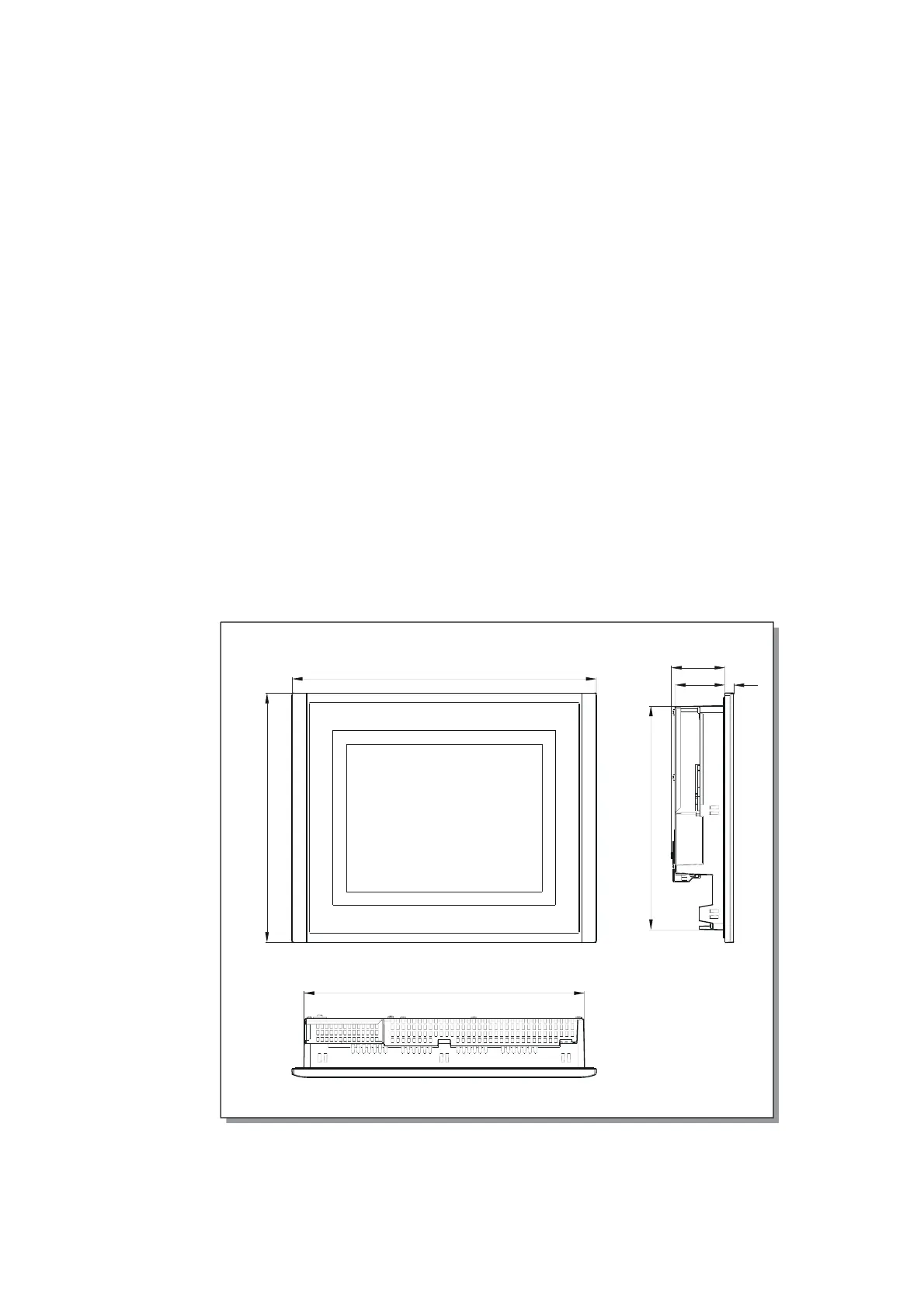

12.1 Dimension drawings
12.1.1 MP 270B 10" Touch, TP 270 10" dimensions
Unit dimensions
HMI device dimensions, MP 270B 10" Touch and TP 270 10":
The two devices only differ on the front by their
!
e-establ ("SIMATIC MULTI PANEL" on the
MP 270B 10" Touch, "SIMATIC PANEL" on the TP 270 10").
335
(59.2)
54.9
9.5
309
275
247
Side view
Front view
Plan view
Figure 12-1 MP 270B 10" Touch and TP 270 10" dimensions:
