TP 270, OP 270, MP 270B (WinCC flexible)
Operating Instructions, Edition 03/2004, 6AV6691-1DD01-0AB0
6-1
Operating system and configuration
6
6.1 HMI device loader
Loader

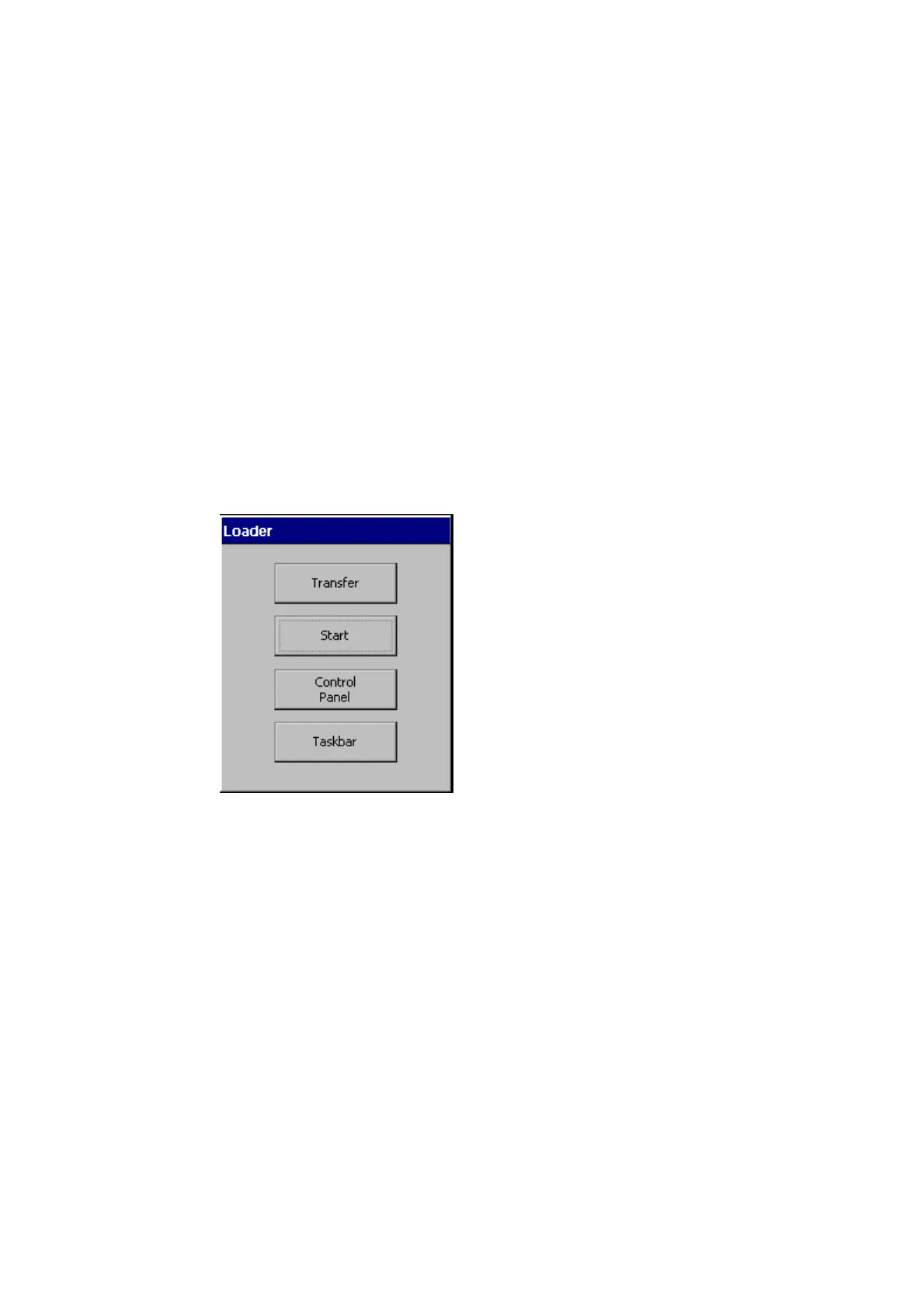

The following figure illustrates the loader which appears briefly during the startup phase of
the HMI device.
Figure 6-1 HMI device loader
The loader also appears when runtime has ended.
The loader buttons have the following functions:
• Press the "Transfer" button to switch the HMI device to transfer mode.
• Press the "Start" button to start runtime with a project loaded on the HMI device.
• Press the "Control Panel" button to access the Windows CE Control Panel in which
various settings can be defined. The options for the transfer mode can be set here, for
example.
• Press the "Taskbar" button to display the Windows toolbar when the Windows CE Start
menu is open.
