Siemens SIMATIC TP 270 User Manual

Operating recipes
10.4 Recipe application
TP 270, OP 270, MP 270B (WinCC flexible)
10-10 Operating Instructions, Edition 03/2004, 6AV6691-1DD01-0AB0
10.4.4 Scenario: Manual production sequence
Objective
The production data are to be requested by the PLC according to the work piece to be
processed and displayed on the HMI device for inspection. You want to be able to correct
the transferred production data online, if necessary.

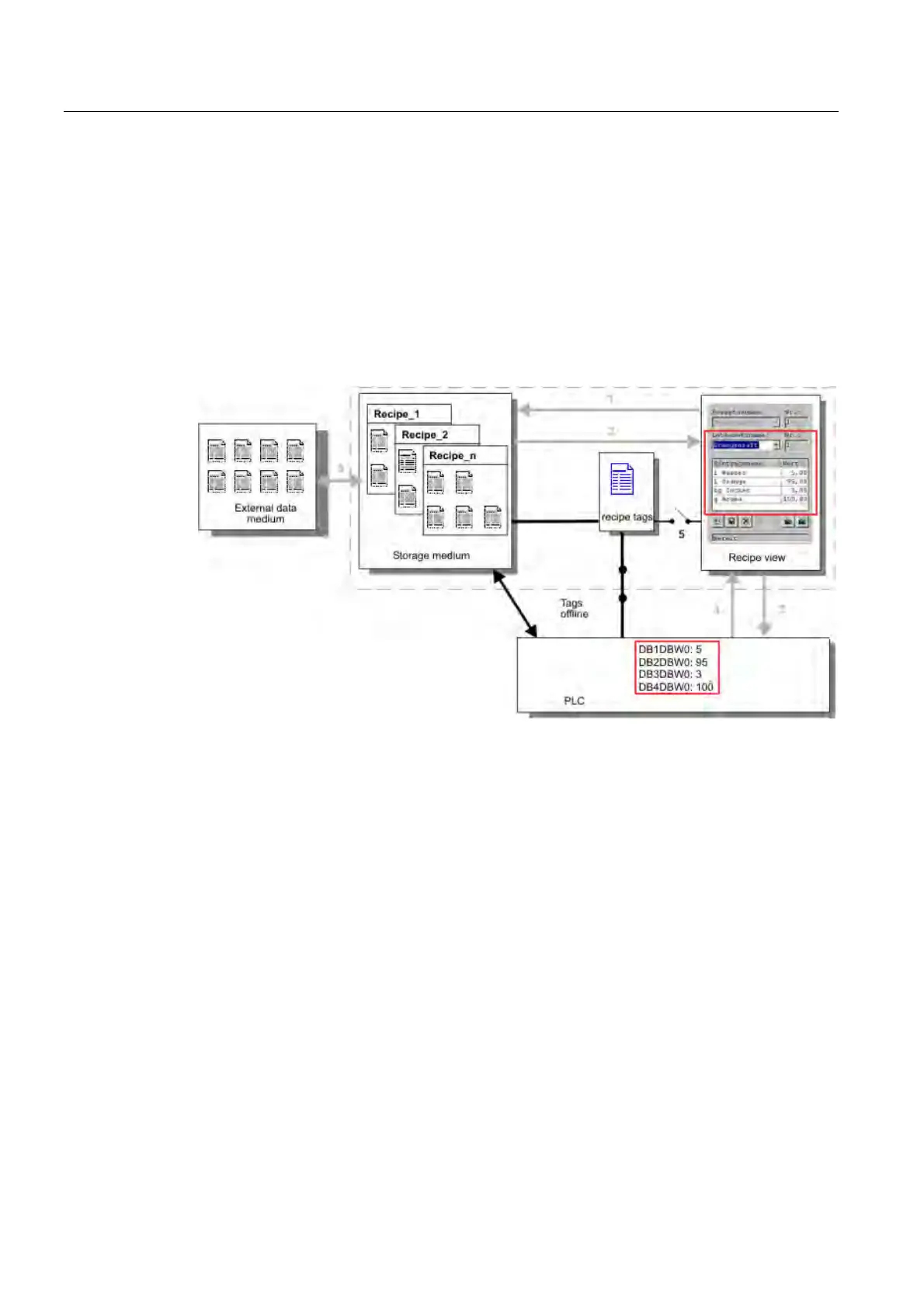

Sequence
A reading device connected to the PLC reads a bar code on the work piece to be processed.
The recipe data record names correspond to the respective bar code names. This will enable
the PLC to load the necessary recipe data record from the storage medium of the HMI
device. The recipe data record is displayed for inspection. Changes are transferred
immediately to the PLC.
