Operating recipes
10.4 Recipe application
TP 270, OP 270, MP 270B (WinCC flexible)
Operating Instructions, Edition 03/2004, 6AV6691-1DD01-0AB0
10-11
Configuration in WinCC flexible
You configure the recipe along with the associated tags.
Production data are to be transferred to the PLC, so it is necessary to synchronize with the
PLC to prevent the data from accidentally overwriting each other. The tags are to be

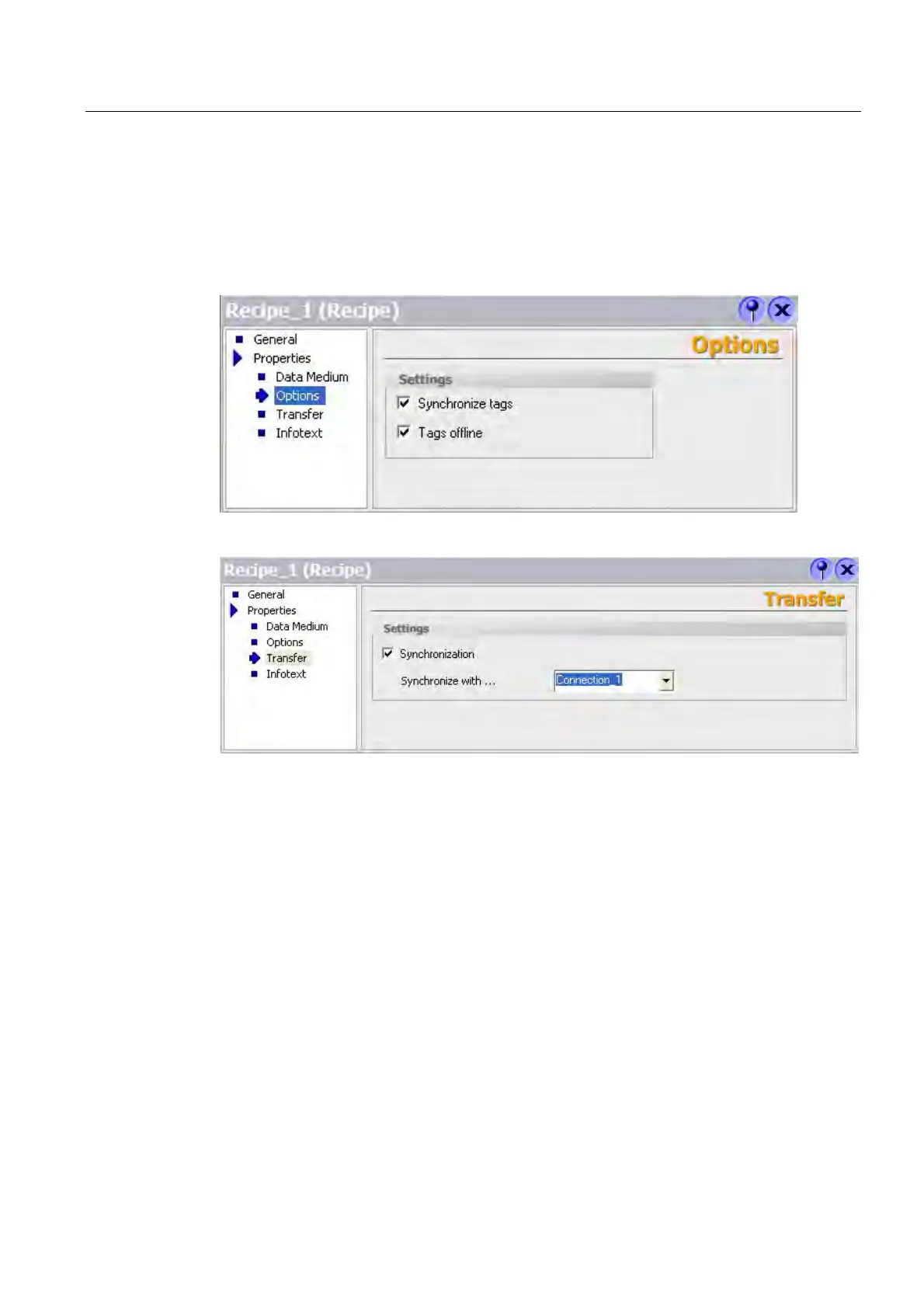

transferred to the PLC. Make the following settings for the recipe in the property view:
Depending on the extent of the recipe, you either configure a recipe view or create a recipe
screen.
