Operate project
9.2 Controlling graphic objects
TP 270, OP 270, MP 270B (WinCC flexible)
Operating Instructions, Edition 03/2004, 6AV6691-1DD01-0AB0
9-45
Layout
The layout of the gauge depends on the configuration. Up to three differently colored areas
can be set on the scale to visualize different operating states, such as normal operation,
warning range and danger range.
A trailing pointer can display the maximum value reached on the scale. The trailing pointer is
reset when the screen is reloaded.
The label on the scale can show the measured variable, e.g. boiler pressure, and the
physical unit, e.g. bar.
Operation
The gauge is for display only and cannot be controlled by the operator.

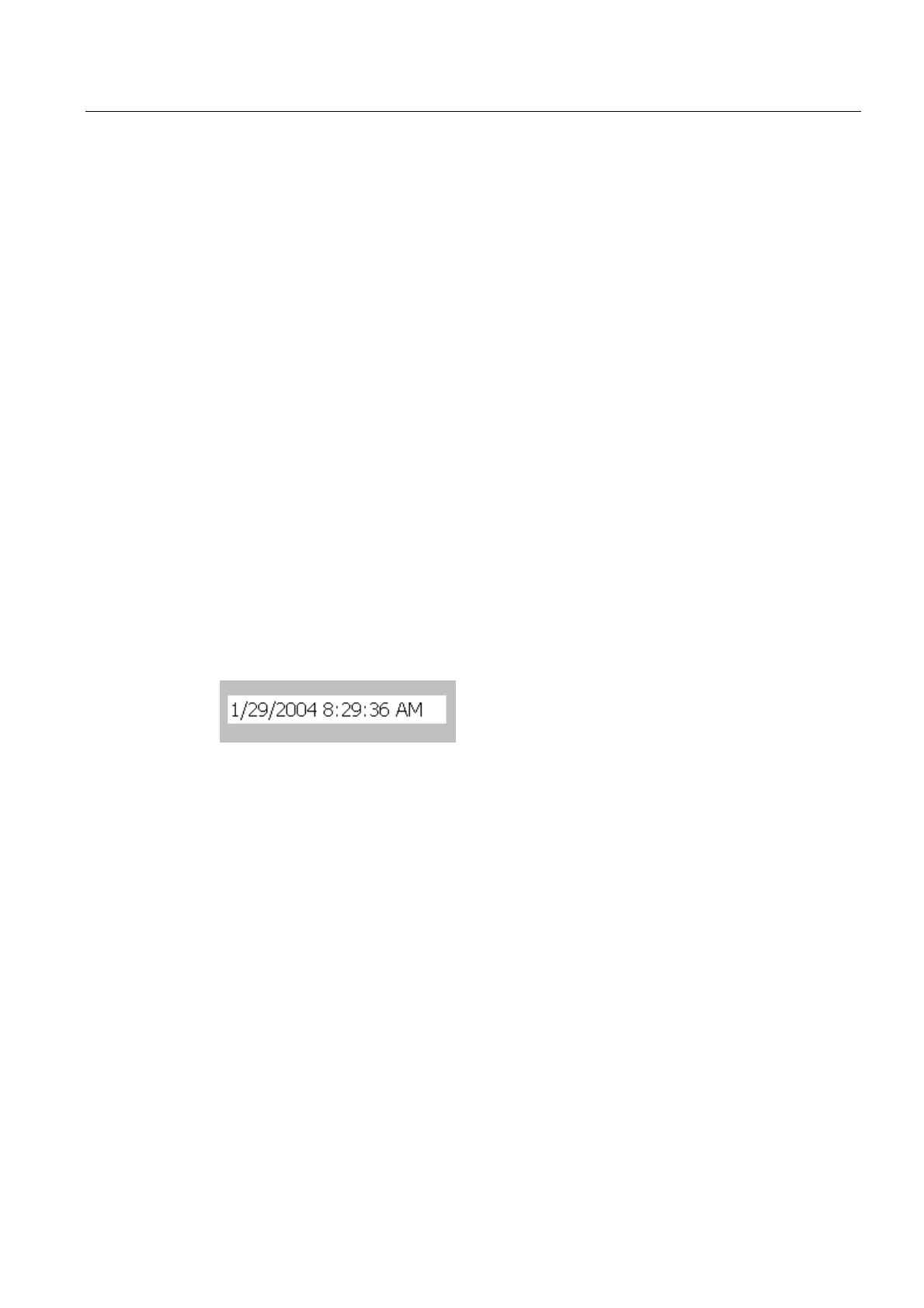

9.2.15 Date/time field
9.2.15.1 Description
Purpose
The date/time field indicates the system time and data. In Runtime, you may change the
system time and data in accordance with the configuration.
Layout
The layout in the date/time field depends on the language set in the HMI device.
Behavior
Input values other than the date and system time are rejected. Instead, the original values,
plus the time that has elapsed in the meantime will appear in the date/time field and a
system alarm will be displayed on the HMI device.
9.2.15.2 Touch control
Procedure
Touch the date/time field on the touch screen of the HMI device. The screen keyboard
automatically appears. Enter the desired value using the screen keyboard. Confirm your
input with <Enter> or cancel it with <Esc>. After the input has been confirmed or canceled,
the screen keyboard is automatically closed.
