1.3 Configuring with WinCC flexible
TP 270, OP 270, MP 270B (WinCC flexible)
Operating Instructions, Edition 03/2004, 6AV6691-1DD01-0AB0
1-3
1.3 Configuring with WinCC flexible
Introduction
In order to operate a machine or system using an HMI device, the user interface must be
configured for the HMI device. This procedure is referred to as the "configuration phase".
Create project data
Save project data
Test the configuration
Simulate configuration
Download project data
Connected to PLC
Configuration phase
PC/PU
PLC
Process running phase
Operating unit

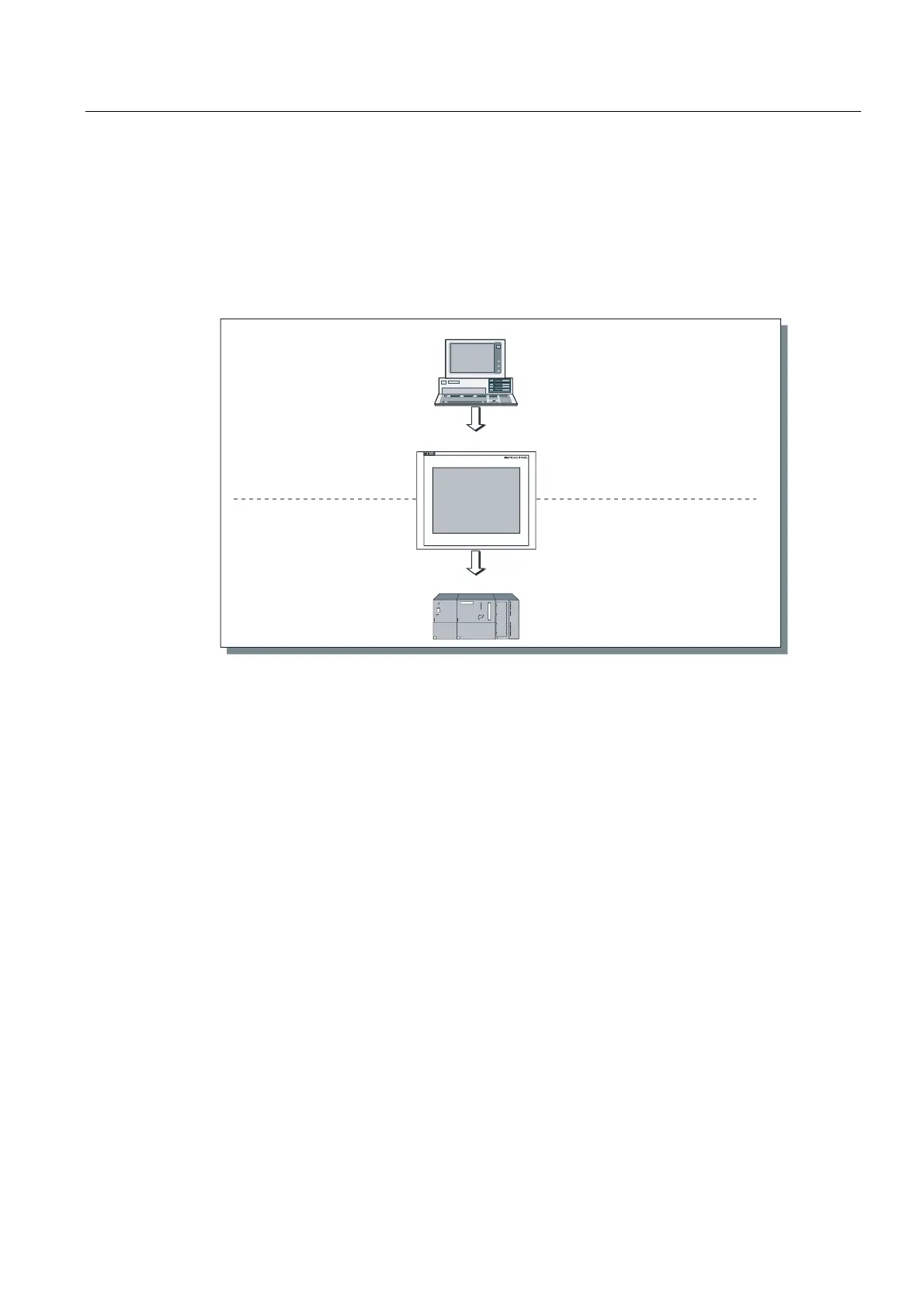

Figure 1-1 Configuration and process running phases
Principle
1. Configuring the functionality of the user interface. This includes the following:
– Graphics
– Text
– Customized functions
– Operating and indicator objects
Use a configuration computer (PC or PU) with the WinCC flexible configuration software.
2. Connect the configuration computer to the HMI device.
The following connection options are available:
– Serial
– MPI/PROFIBUS DP
– USB or Ethernet interface
– Standard modem path
3. Transfer the configuration to the HMI device.
4. Connect the HMI device to the PLC.
