Operating recipes
10.4 Recipe application
TP 270, OP 270, MP 270B (WinCC flexible)
Operating Instructions, Edition 03/2004, 6AV6691-1DD01-0AB0
10-9

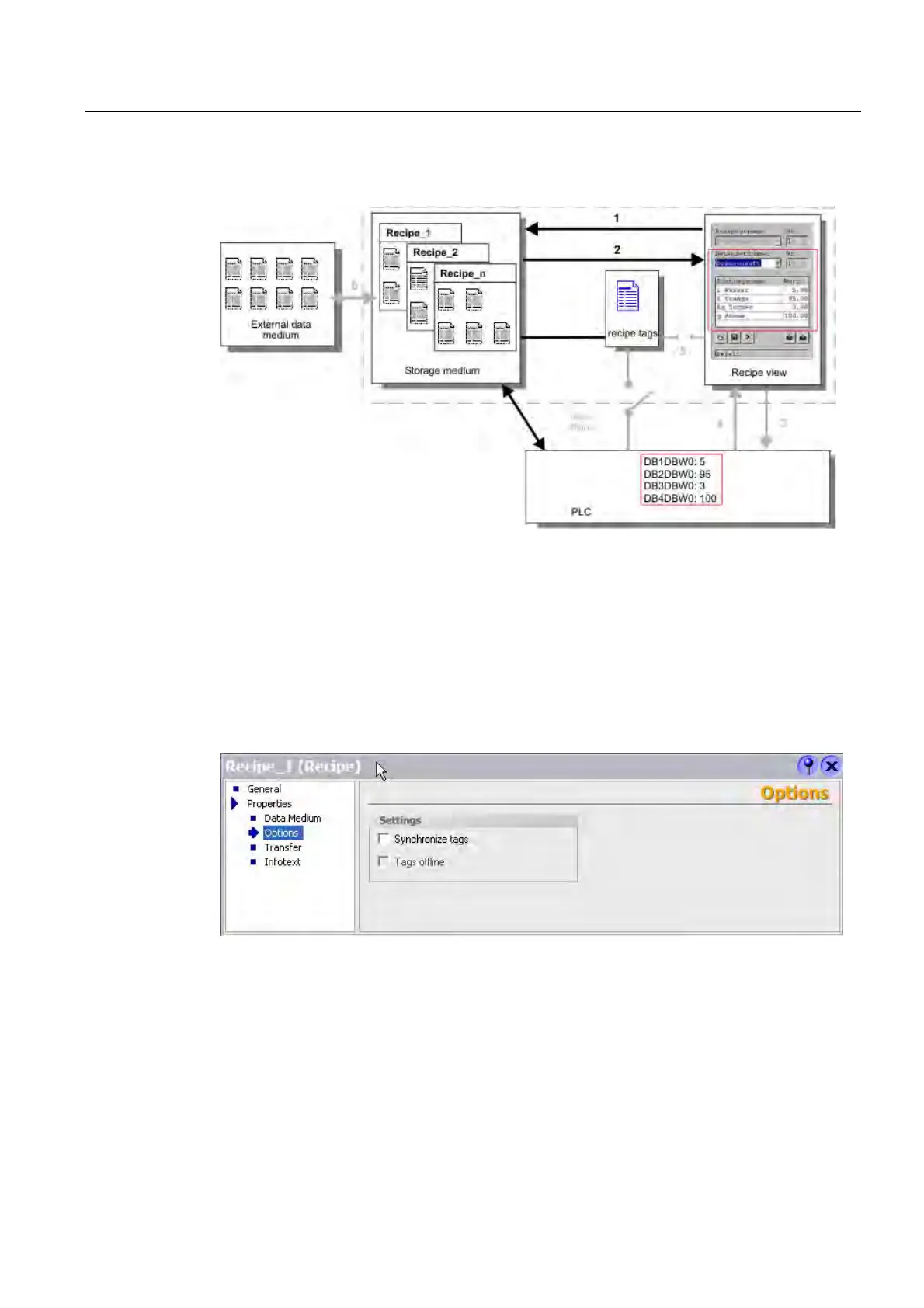

Sequence
You enter the production data in the recipe view or the recipe screen, assign a recipe data
record name, and save the new recipe data record on the storage medium of the HMI
device.
Configuration in WinCC flexible
You configure the recipe along with the associated tags.
Synchronization with the recipe tags is not necessary because production data (tags) are not
intended to be transferred to the PLC. Make the following settings for the recipe in the
property view:
Depending on the extent of the recipe, you either configure a recipe view or create a recipe
screen.
