Siemens SIMATIC TP 270 User Manual

Operating elements and indicators
5.2 MP 270B Keys and OP 270
TP 270, OP 270, MP 270B (WinCC flexible)
5-10 Operating Instructions, Edition 03/2004, 6AV6691-1DD01-0AB0
MP 270B 10" Keys / OP 270 10"
0
0
248.90 mm
124.70
118.65
101.46
95.41
78.22
72.17
48.93
54.98
431.7
25.69
8.50
2.45
R0.5
2.85
8.50
2.85
8.50
24.95
31.00
47.45
53.50
93.15 mm
17.00
LED-Fenster.
transparent
.850
17.00
LED window,
transparent

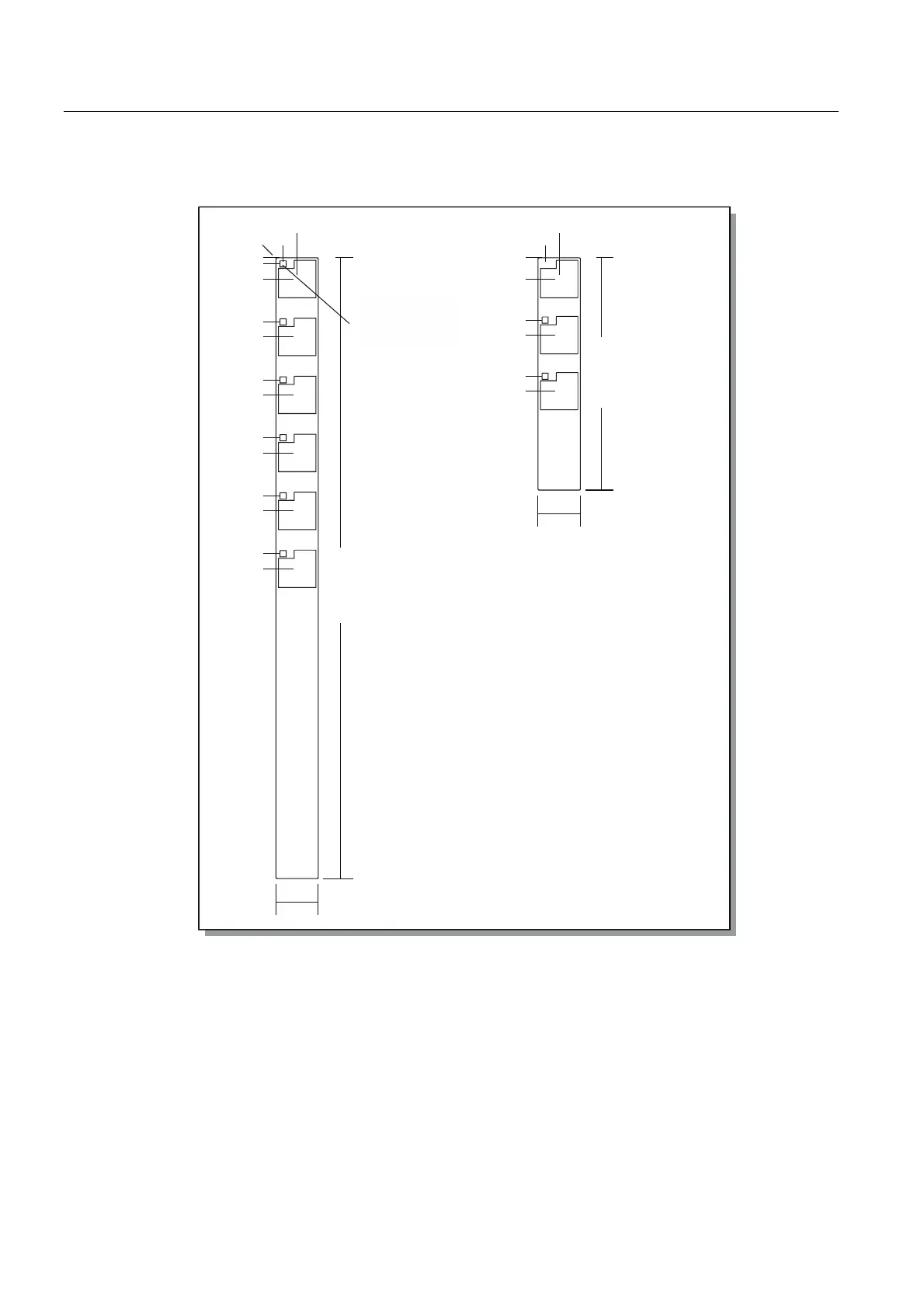

Figure 5-6 MP 270B 10" Keys and OP 270 10" labeling strip dimensions
