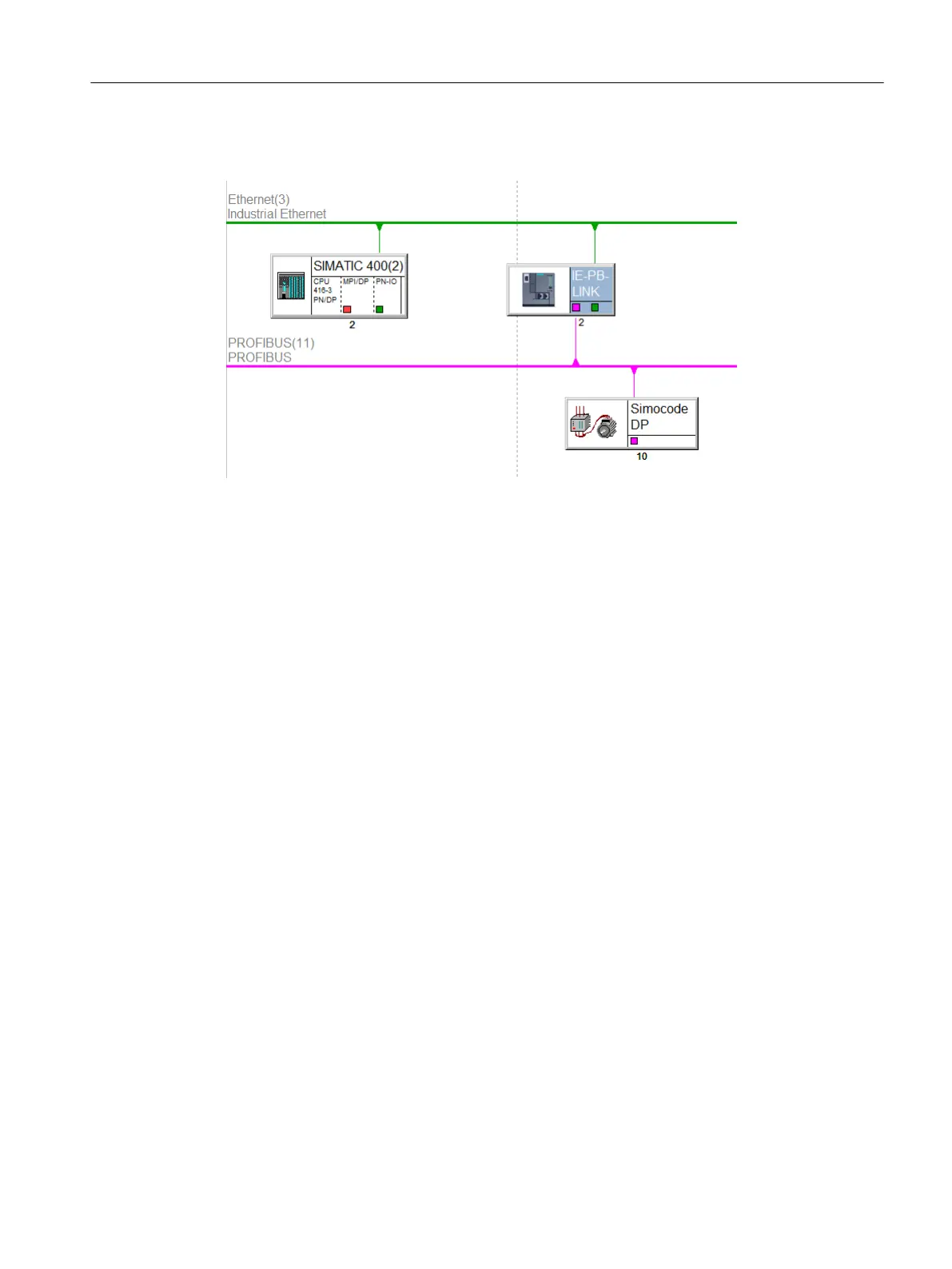

1.8.3.3 Network Conguration
1.8.4 SIMOCODE DP behind the IE/PB Link HA
1.8.4.1 GSD: SIMOCODE DP basic type selection
• Open STEP 7 HW Cong. From the Hardware Catalog, Prole standard, navigate to PROFIBUS
DP -> Additional Field Devices → Switching Devices → SIMOCODE-DP. Place this device on the
PROFIBUS network.
Introduction
1.8Example congurations
SIMOCODE DP PCS 7 Library Migration (Legacy) - V9.1 SP2
Programming and Operating Manual, 11/2022, A5E51265657002A/RS-AC/003 25
