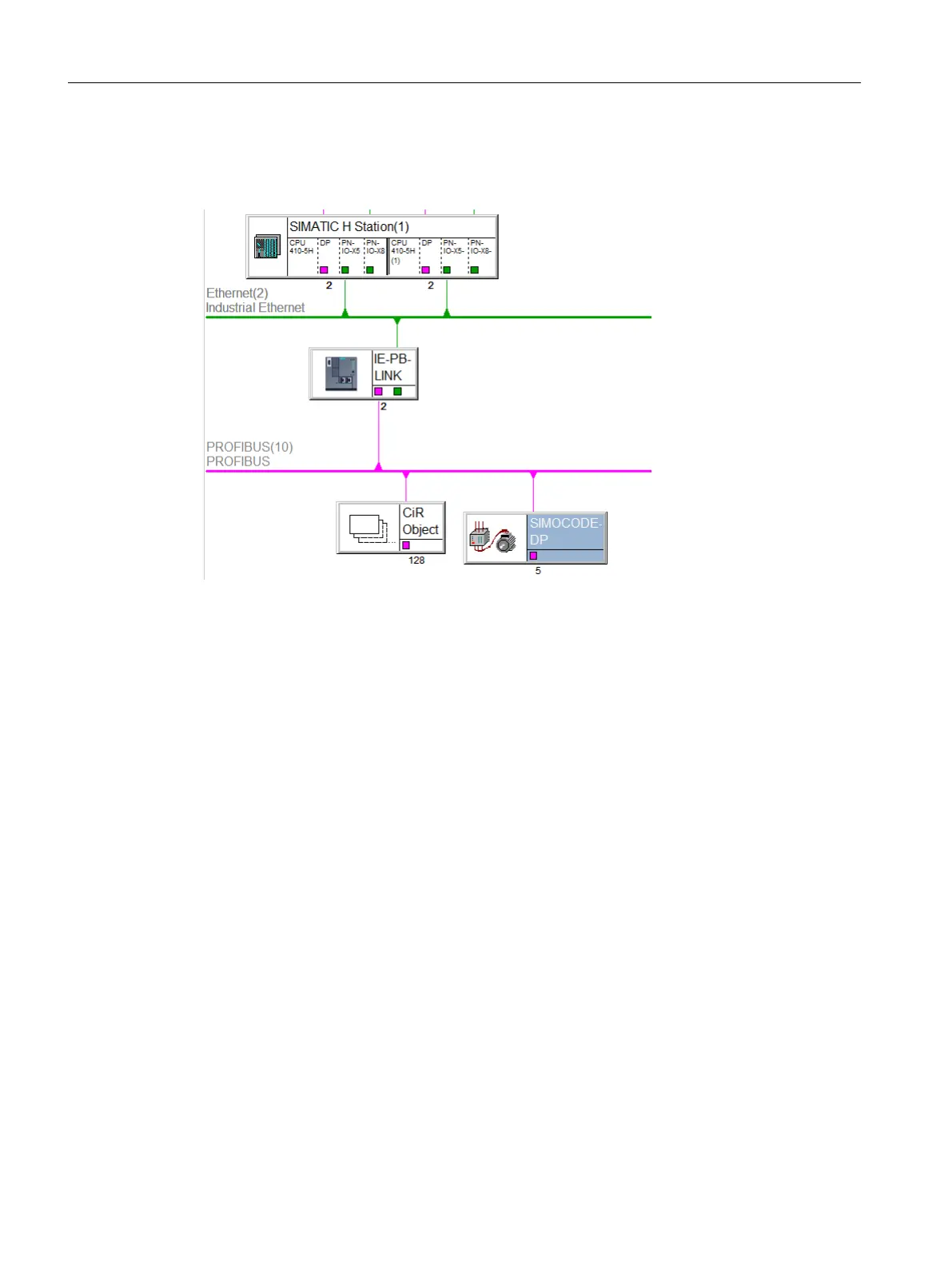

1.8.4.3 Network Conguration
1.9 Sample Project Conguration
The following steps describe how to enable the communication functionality of the SIMOCODE-
DP device on the PROFIBUS network.
Condition
• The PROFIBUS DP master is CPU internal DP or CP 443-5 Extended (MLFB: 6GK7
443-5DX05-0XE0)
• The Operating Mode of the DP network is DPV1
• SIMATIC PDM is installed or respective GSD is available.
Introduction
1.9Sample Project Conguration
SIMOCODE DP PCS 7 Library Migration (Legacy) - V9.1 SP2
28 Programming and Operating Manual, 11/2022, A5E51265657002A/RS-AC/003
