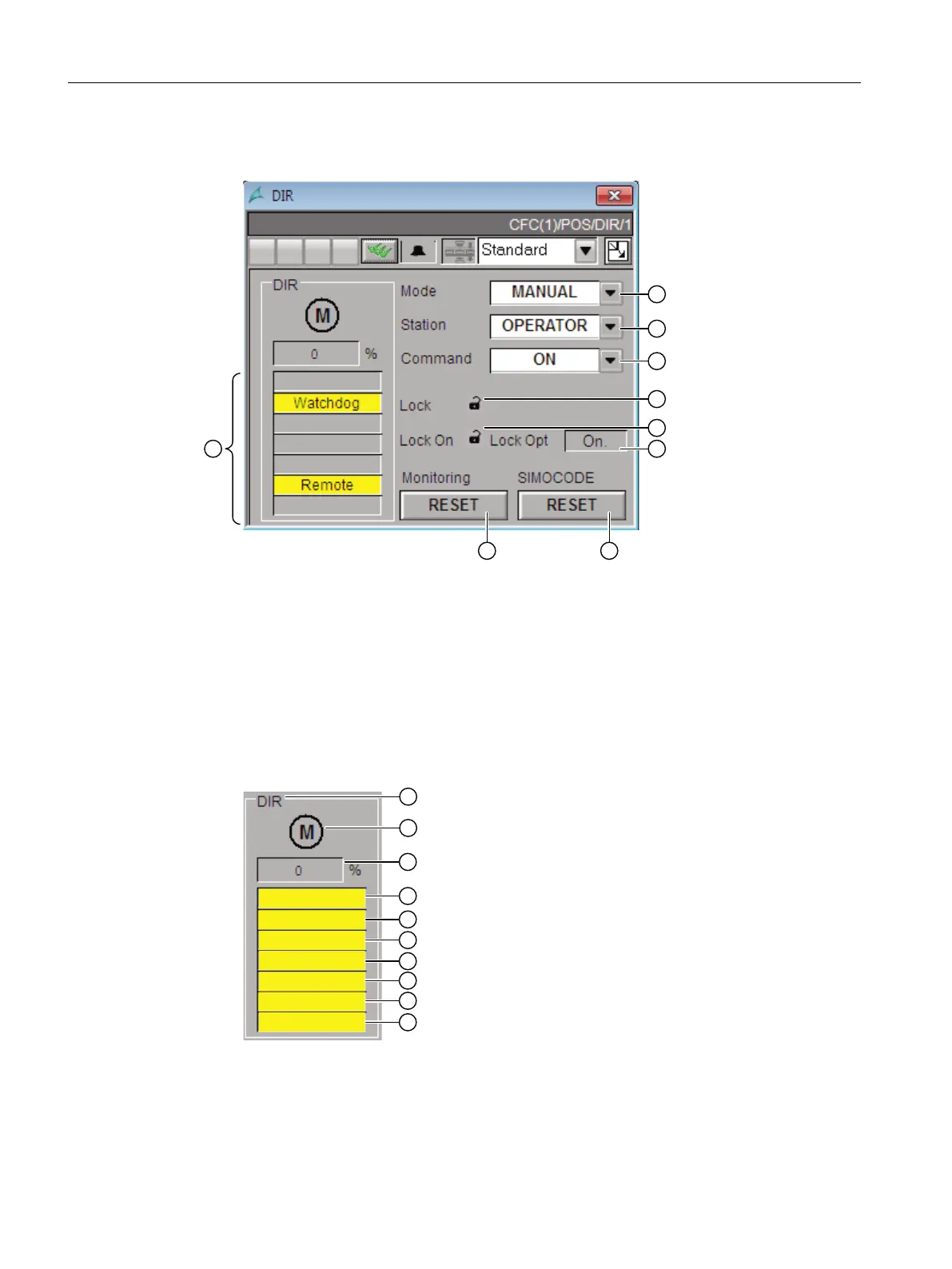

4.5.2.1 Standard view









① Operation mode (QMAN_AUT, AUTON_OP, QMANOP, QAUTOP)
② Station (QMAN_MOP, MANON_OP,QMANLOP)
③ Active command (ON1_OP, ON2_OP, OFF_OP, QON1OP, QON2OP, QOFFOP)
④ LOCK
⑤ LOCK_ON
⑥ Lock option (LOCK_OPT; LOCK_OPT#string)
⑦ Reset of SIMOCODE-faults (SIMORESET)
⑧ Reset of QMON_ERR (RESET)
⑨ Status of the block
OFF
MONITORING
Gen.Fault
Simulation
Test (CST)
Remote
Cool.Time act.










 ① SIMOCODE-DP control function (SIMO_TXT)
 ② SIMO_STAT
 ③ Current (CUR) and Unit (CUR#unit)
 ④ Active command (QOFF, QON1, QON2)
SIMO_CHN Function
4.5Block Icon and Faceplate
