⑤ Watchdog (QMON_ERR, SIMO_OVL)
⑥ SIMOCODE-DP general fault (QG_FLT) or SIMOCODE-DP general warning (QG_WRN)
⑦ Simulation active (QSIM)
⑧ Test active (QCST)/Read Failure/Write Failure
⑨ Remote active (QREMOTE, SIMO_OVL)
⑩ Cooling time running (QCTA) or Lock time active (QLTA)
In the SIMOCODE-DP "Overload" (OVL) control function, the display of operating mode,
station, command, and monitoring is disabled. In SIMOCODE-DP control function "Direct
starter (DIR), Star / Delta(STAR), Soft starter (SOFT), and Solenoid valve (VALVE), the
operation of the ON1 command is disabled.
In the symbol picture and the standard view, a device failure is indicated by a change of color
in the status display.
All inputs require operator level5. Operator enabling at login is through the direct connection
of picture element @Level5 (Operator Enabling) -> Permissions (Operator Enabling). The
operator enabling and background colors for the other I/O elds are then dened in the
"Permissions" picture element by means of a C-script.

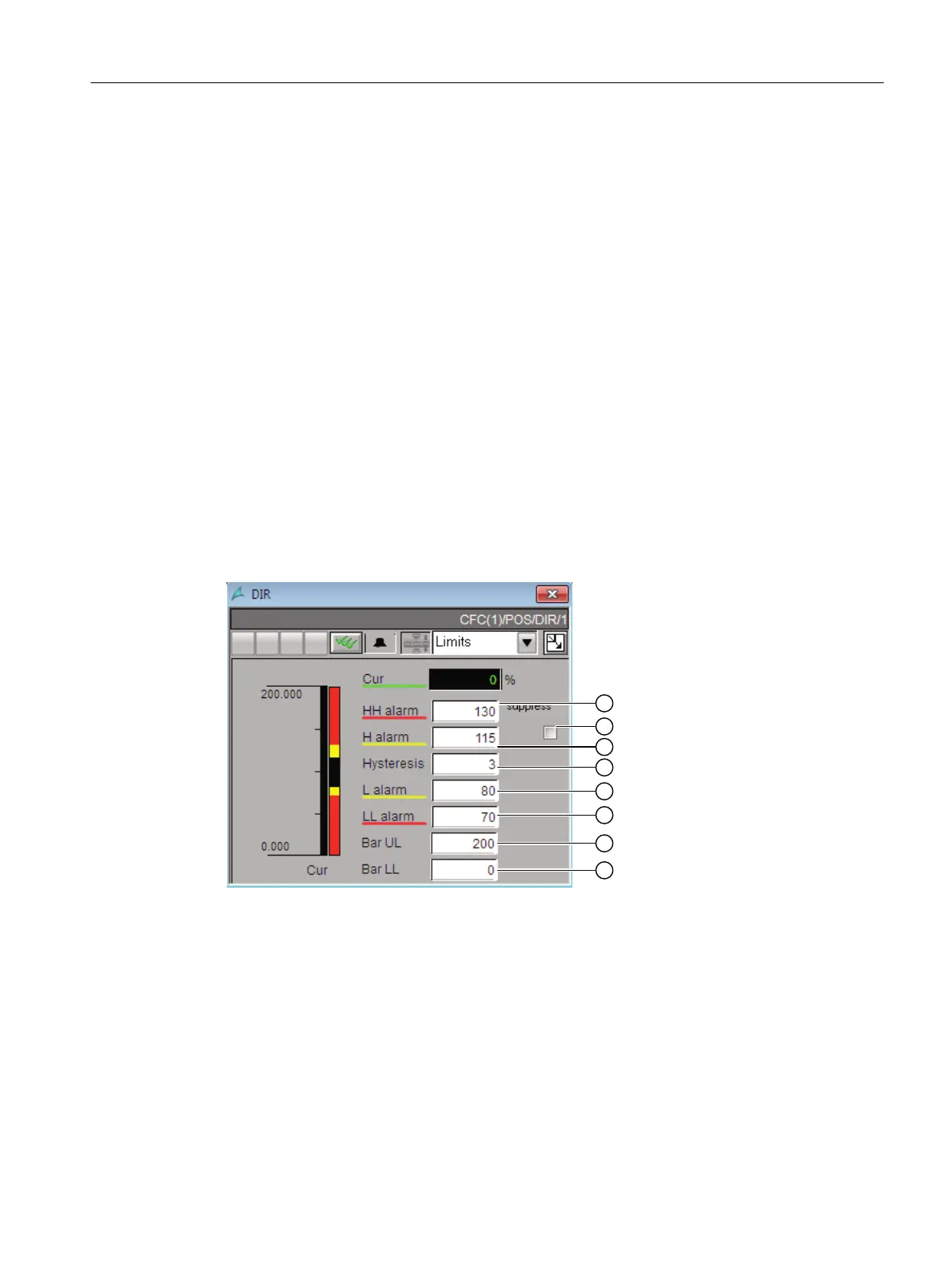

4.5.2.2 Limits view
① Limit HH alarm (CUR_AH)
② Suppress alarm (M_SUP_C)
③ Limit H alarm (CUR_WH)
④ Hysteresis (HYS)
⑤ Limit L alarm (CUR_WL)
⑥ Limit LL alarm (CUR_AL)
⑦ Bar upper limit (MO_PVHR)
⑧ Bar lower limit (MO_PVLR)
In the SIMOCODE "Solenoid Valve" (VALVE) function, limit value inputs and message
suppression are disabled.
SIMO_CHN Function
4.5Block Icon and Faceplate
SIMOCODE DP PCS 7 Library Migration (Legacy) - V9.1 SP2
Programming and Operating Manual, 11/2022, A5E51265657002A/RS-AC/003 63
