1.8.2.2 PDM: SIMOCODE DP basic type selection

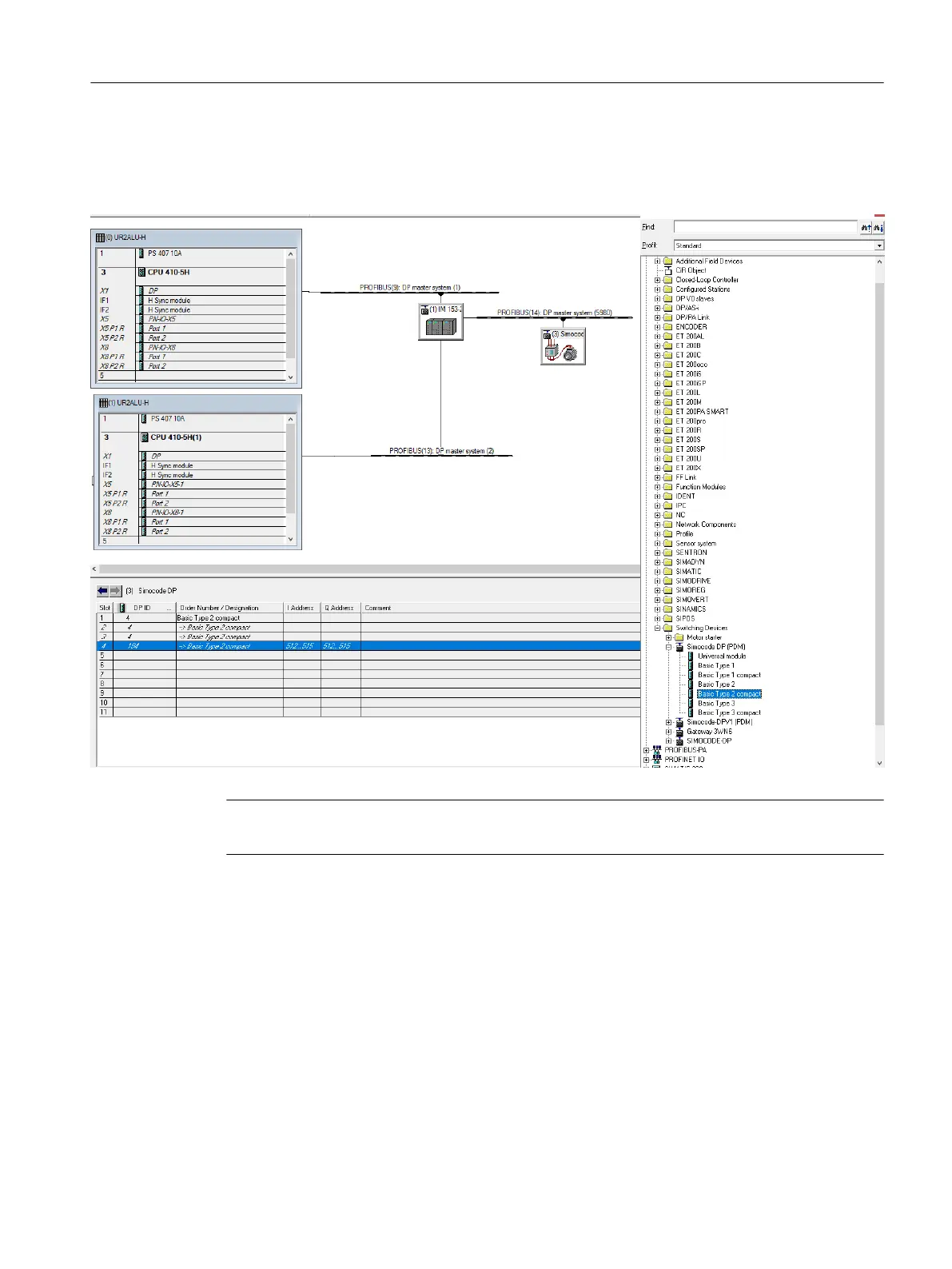

• Open STEP 7 HW Con󹪝g. From the Hardware Catalog, Pro󹪝le standard, navigate to PROFIBUS

DP -> Switching Devices → Simocode DP(PDM). Place this device on the PROFIBUS network.

Note

Here DP corresponds to the SIMOCODE DP device parameter Operating Mode DP-norm.

• In this con󹪝guration, DPV1 data record functions are not available. Assign the PROFIBUS-DP

address. Select device slot 1 and con󹪝gure it as Basic Type 2 Compact

• For the Y-Link, when SIMOCODE DP is parameterized as Basic Type 2 compact, the number

of SIMOCODE-DP devices is limited to 47 (max). This limitation is due to a maximum number

of the slots within one Y-Link (47 x 5 slots = 235 slots, max. 236 slots). Also please refer to the

information given in the Y-Link manual.

1.8.2.3 Redundant PLC DP Operating mode

• Open STEP 7 HW Con󹪝g-> Select Redundant PLC DP port -> Operating Mode-> Select DP

Master Radio button And DP Mode As DPV1

Introduction

1.8Example con󹪝gurations

SIMOCODE DP PCS 7 Library Migration (Legacy) - V9.1 SP2

Programming and Operating Manual, 11/2022, A5E51265657002A/RS-AC/003 21
