5.2 Maintenance Station Block Icons

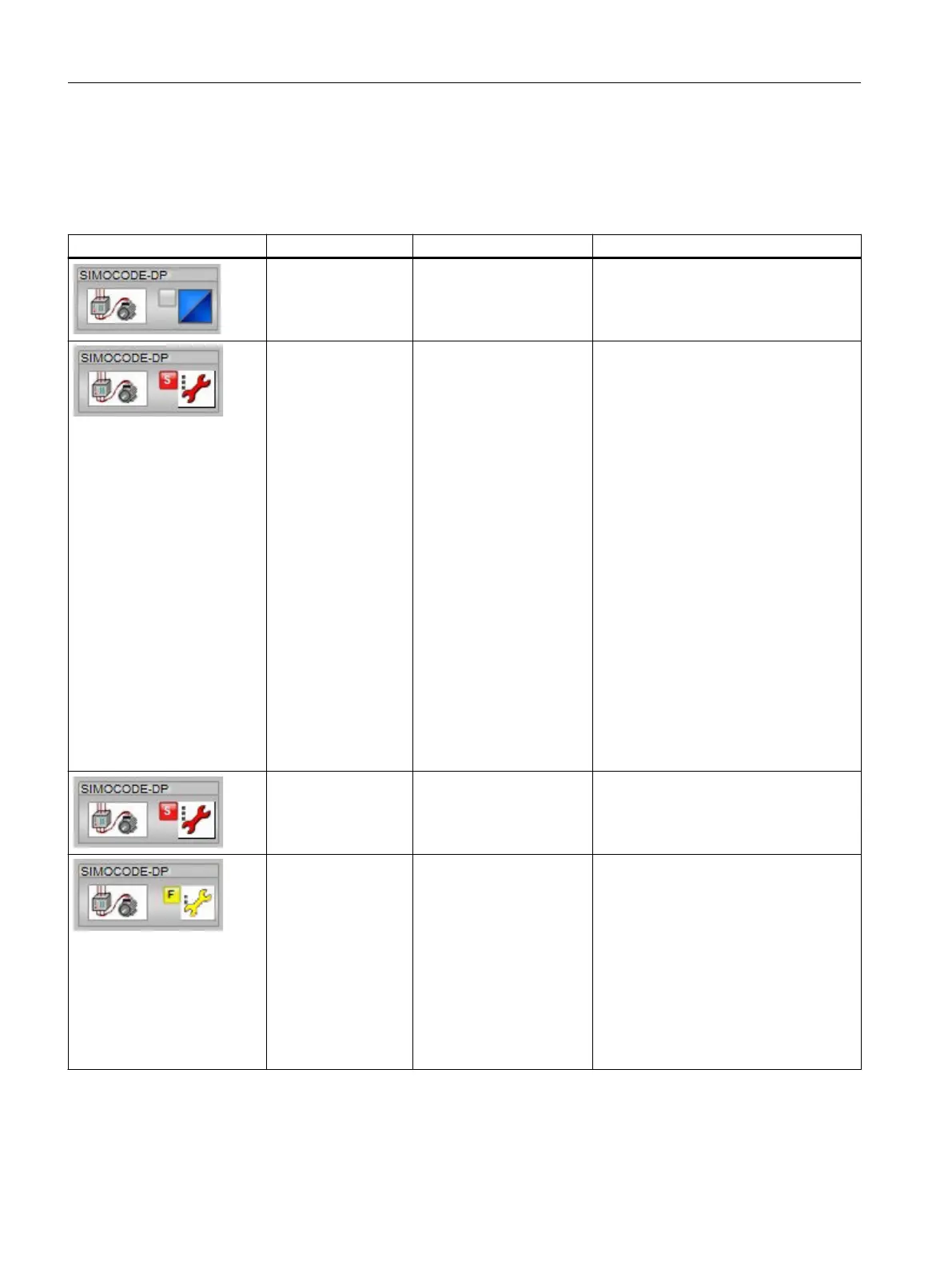

SIMOCODE DP Standard Diagnostics – Maintenance Station
Display Remark Message Caused by
Unknown/untested - PLC in Standby
Trip Device [Subnet No.]/[Ad‐
dress]: Bad, maintenance
alarm
Fault
• Earth fault
• Overload
• Overload and asymmetry
• I1/I2 threshold exceeded/fallen below
• Thermistor
• "CS On/O󹪜"
• Motor stalled
• Positioner stalled
• Double "0"/"1" error on positioner
• End position reached
• Non-Equivalence fault, Positioner
• Ready to start
• Operational Protection o󹪜
• Undervoltage o󹪜
• External error 1/2
• Check-Back signal test
• Runtime error when switching on/o󹪜
Failure Device [Subnet No.]/[Ad‐
dress]: Failure
Failure of PROFIBUS connection
Warning Device [Subnet No.]/[Ad‐
dress]: Uncertain, mainte‐
nance demanded
Warnings
• External warning
• Asymmetry > 40%
• Short Circuit in sensor line
• Earth fault
• Overload
• Overload and asymmetry
• I1/I2 threshold exceeded/fallen below
• Thermistor
Maintenance Station
