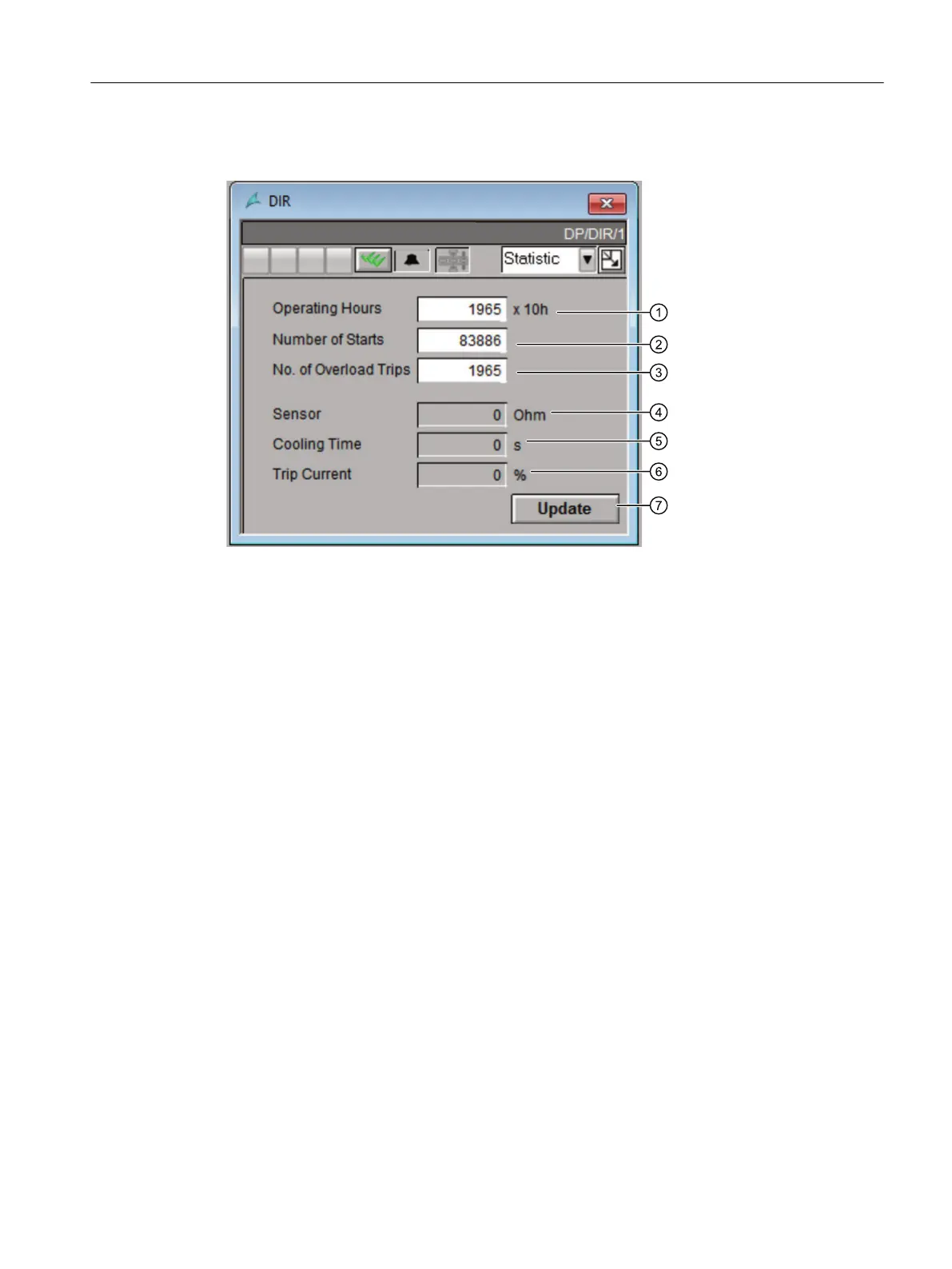

4.5.2.4 Statistic view
① Operating hours (OPH_S, QENSDCS, EN_WSD)
② Number of Starts (N_STRT_S, QENSDCS, EN_WSD)
③ Number of Overload trips (N_OVL_S, QENSDCS, EN_WSD)
④ Sensor (SENSOR, SENSOR#unit)
⑤ Cooling time (COOL_T, COOL_T#unit)
⑥ Trip current (TRIP_CUR, TRIP_CUR#unit)
⑦ Update (CS_UPD, QENSDCS, EN_RSD)
When a picture is selected, SD_UPD is set.
Input Update requires operator level5; all other inputs require operator level6.
Operator enabling at login is linked through the direct connection of picture element
@Level5 (Operator Enabling) -> Permissions (Operator Enabling). The operator enabling and
background colors of the other I/O elds are then dened in picture element "Permissions" by
means of a C-script.
SIMO_CHN Function
4.5Block Icon and Faceplate
SIMOCODE DP PCS 7 Library Migration (Legacy) - V9.1 SP2
Programming and Operating Manual, 11/2022, A5E51265657002A/RS-AC/003 65
