Electrical connection
8.3 System integration
1FN3 linear motors
Configuration Manual, 10/2018, 6SN1197-0AB86-0BP2
503
Temperature sensor connection – standard
Connect the signal cable as follows:
● Using a plug connector at the SME12x (Sensor Module External)
● With open cable ends at the TM120
The SME12x or the TM120 is connected to the converter via DRIVE-CLiQ. See the diagrams
for "System integration (Page 486)".
Note
Checking the shutdown circuit
Before commissioning and switching on for the
first time, carefully check that the Temp-S
temperature monitoring circuit correctly shuts down the system when it responds via the
SME12x or the TM120.
Typical characteristic R(
ϑ) of a PTC temperature sensor according to DIN 44081 is provided
in Chapter "
Technical features of temperature sensors (Page 88)".

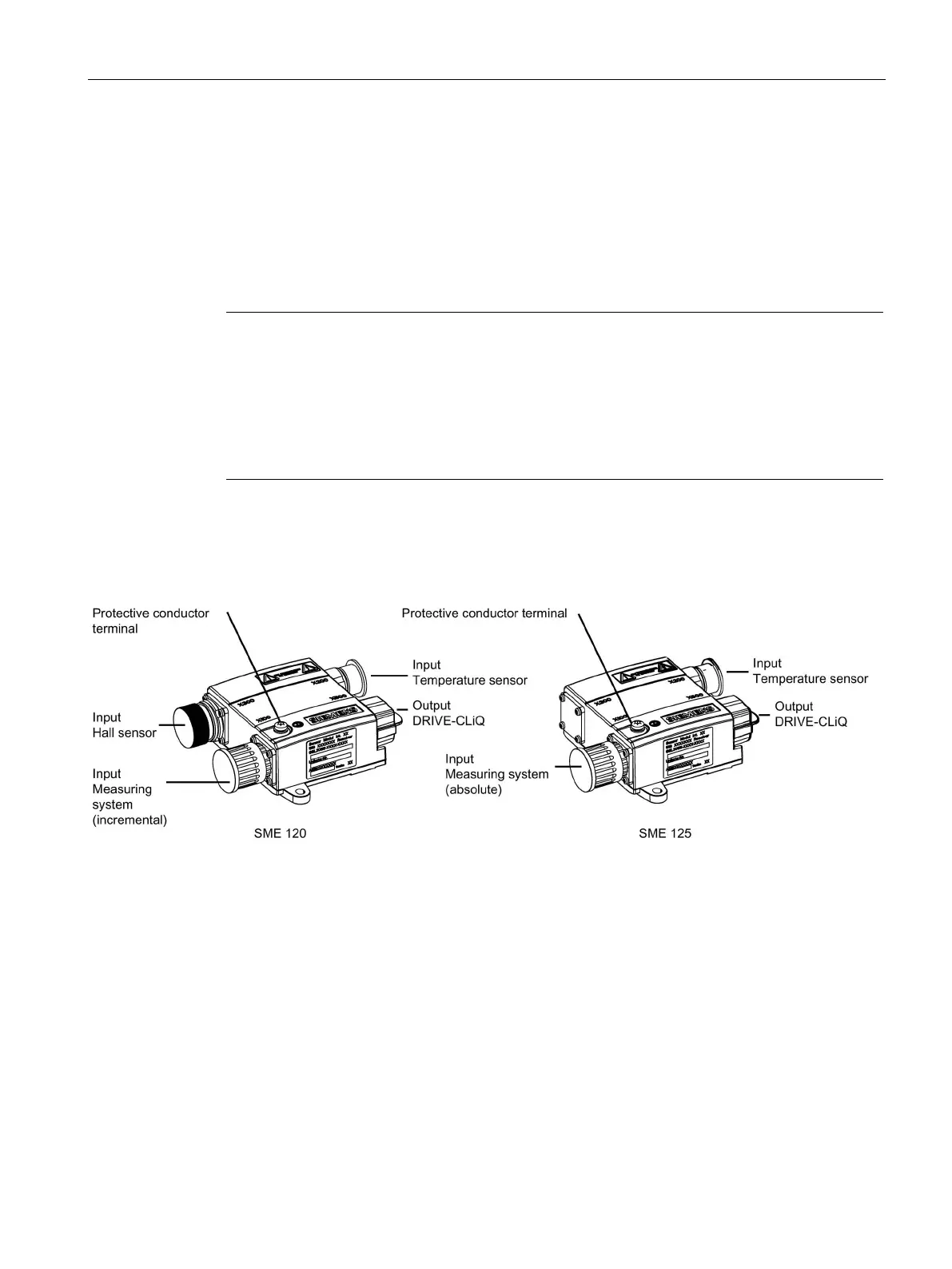

Connection of the temperature sensors via SME12x
