Siemens SIMOTICS L-1FN3 Configuration Manual

Electrical connection
8.3 System integration
1FN3 linear motors
504 Configuration Manual, 10/2018, 6SN1197-0AB86-0BP2
Pin assignment of the temperature sensor – SME12x interface

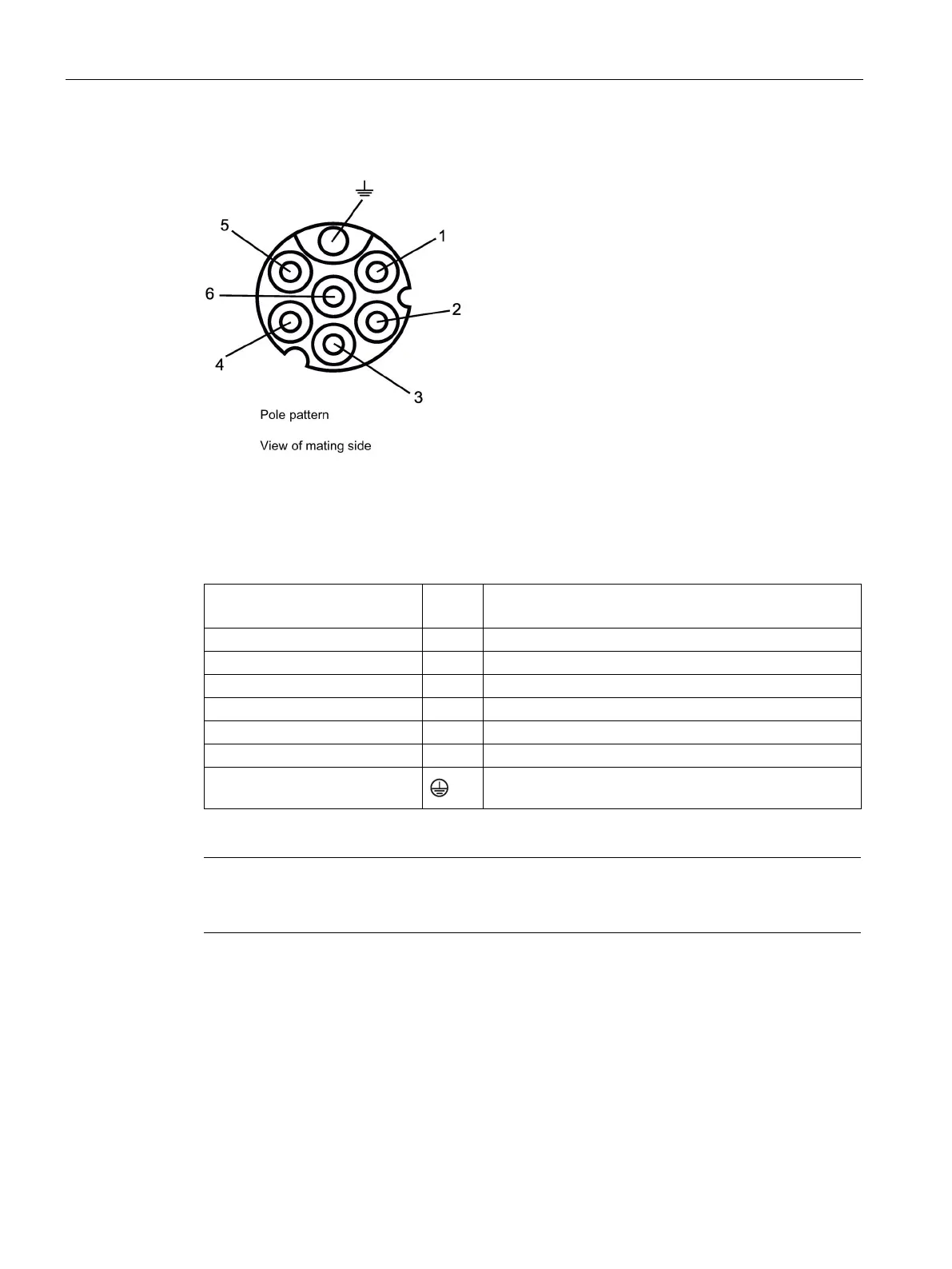

Figure 8-13 Pole layout of the temperature sensor – SME12x interface
Table 8- 8 Pole layout of the temperature sensor – SME12x interface
Conductor assignment for cable
6FX8002-2SL00- ....
Pin
Sensor contact
white
1
-1R2: -KTY or Pt1000
brown
2
+1R1: +KTY or Pt1000
green
3
1TP1: PTC
yellow
4
1TP2: PTC
gray
5
-
pink
6
-
green/yellow
PE
Note
You require signal connector with Article No. 6FX2003
-0SU07 to connect the motor to the
SME12x.
