SIMPRO-100
SIMPRO-PC Compatibility Features
D
PRIM-2400C 197
D.5 CASCII Command
D.5.1 General Format
The compressed ASCII configuration message
provides data for an external computer to extract
data from other compressed ASCII commands.
To obtain the configuration message for the
compressed ASCII commands available in a
Siemens relay, type CAS <CR>.

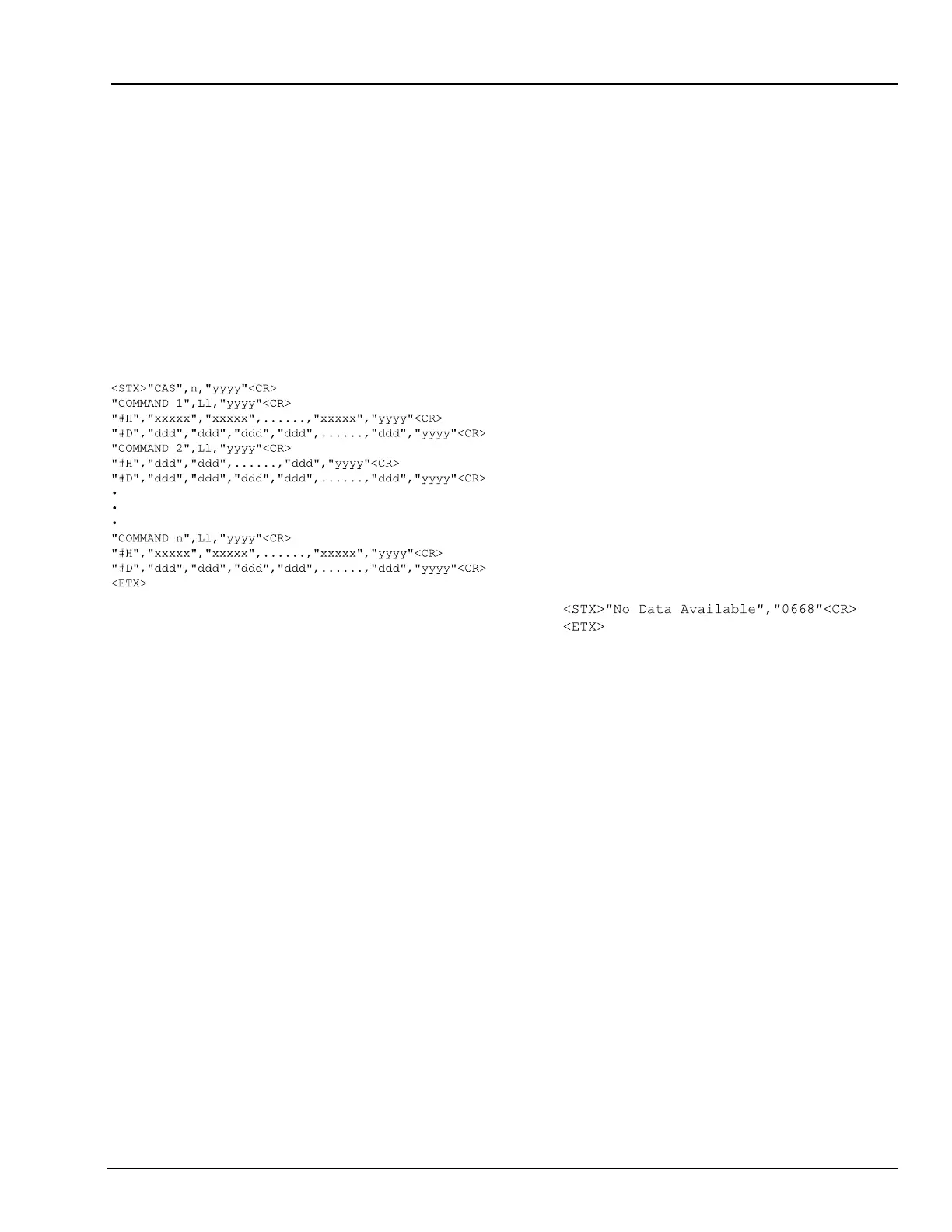

The SIMPRO-100 Relay sends:
where:
• "n" is the number of compressed ASCII
command descriptions to follow.
• "COMMAND" is the ASCII name for the
compressed ASCII command as sent by
the requesting device. The naming
convention for the compressed ASCII
commands is a 'C' preceding the typical
command. For example, CSTATUS
(abbreviated to CST) is the compressed
STATUS command.
• "Ll" is the minimum access level at which
the command is available.
• "#H" identifies a header line to precede
one or more data lines; "#" is the number
of subsequent ASCII names. For
example, “21H” identifies a header line
with 21 ASCII labels.
• "xxxxx" is an ASCII name for
corresponding data on following data
lines. Maximum ASCII name width is 10
characters.
• "#D" identifies a data format line; "#" is the
maximum number of subsequent data
lines.
• "ddd" identifies a format field containing
one of the following type designators:
–"I" Integer data
–"F" Floating point data
–"mS" String of maximum m characters
(e.g., 10S for a 10 character string)
–"yyyy" is the 4-byte hex ASCII
representation of the checksum
A compressed ASCII command may require
multiple header and data configuration lines.
If a compressed ASCII request is made for data
that are not available (e.g., the history buffer is
empty or invalid event request), the relay
responds with the following message:
