Front-Panel Operation
SIMPRO-100
80 PRIM-2400C

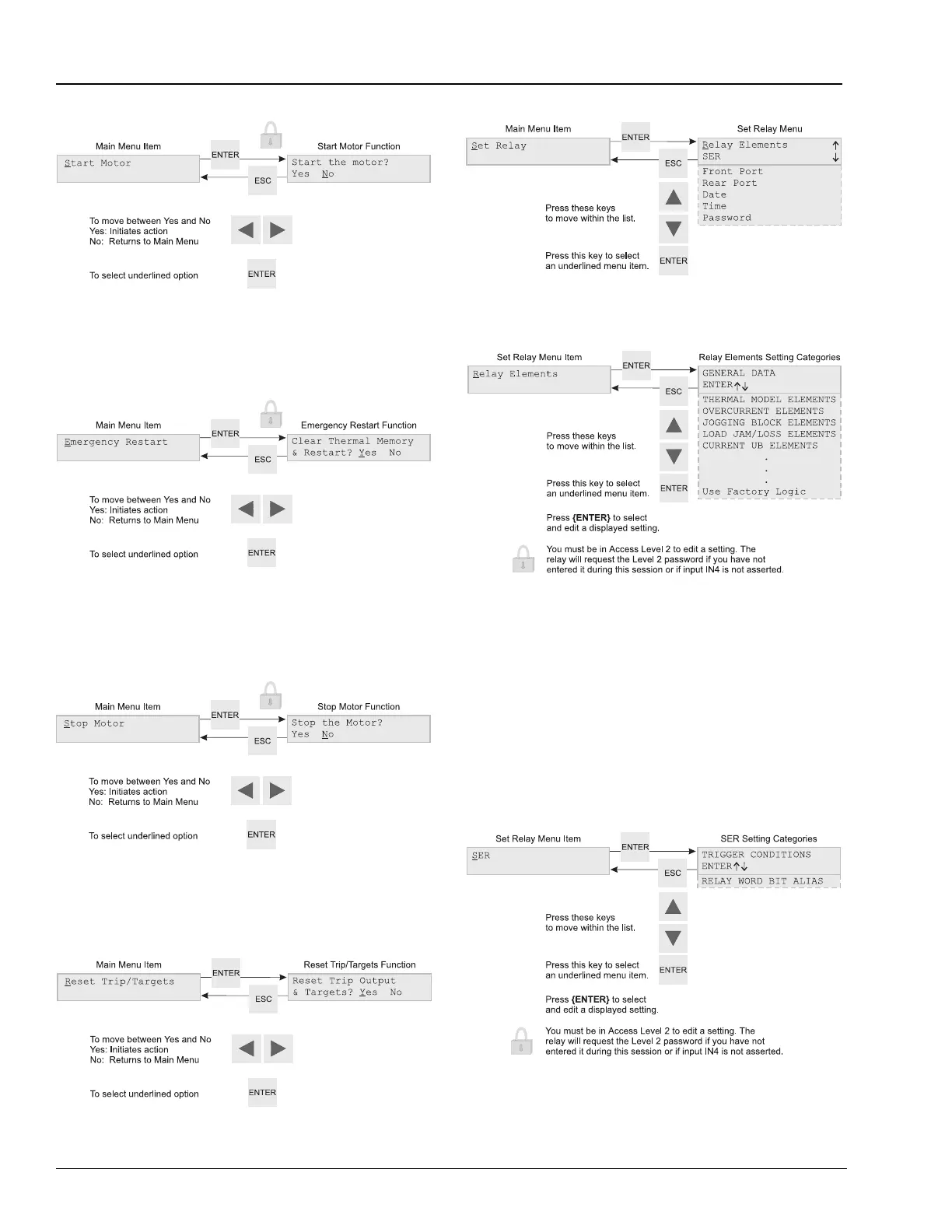

Figure 5.9 Main Menu: Start Motor Function
Figure 5.10 Main Menu: Emergency Restart Function
Figure 5.11 Main Menu: Stop Motor Function
Figure 5.12 Main Menu: Reset Trip/Targets Function
Figure 5.13 Main Menu: Set Relay Function
Figure 5.14 Set Relay\Relay Elements Function
Note: Within the list of setting categories, press
the {ENTER} pushbutton to view or
change specific settings within the
category. To edit a setting, press the
{ENTER} pushbutton while the setting is
displayed. The relay requires Level 2
Access to edit settings.
Figure 5.15 Set Relay\SER Setting Categories
