SIMPRO-100
SIMPRO-PC Compatibility Features
D
PRIM-2400C 199
If the relay is not equipped with internal or
external RTD inputs, the RTD labels are replaced
with “*”. If the relay is equipped with RTD inputs,
the RTD locations (BRG, WDG, etc.) are setting
dependent. If Fahrenheit is the designated
temperature scale, the temperature designator
(C) is replaced with (F)
where:
• "THM CAP(%)" is the thermal model
thermal capacity used in percent.
• "RTD TC(%)" is the RTD estimated
thermal capacity used in percent.
• "CALC TIME" is the calculated time to
thermal trip in seconds.
• "MINUTES" is the number of minutes
since the last motor start.
• "STARTS" is the number of motor starts in
the past hour.

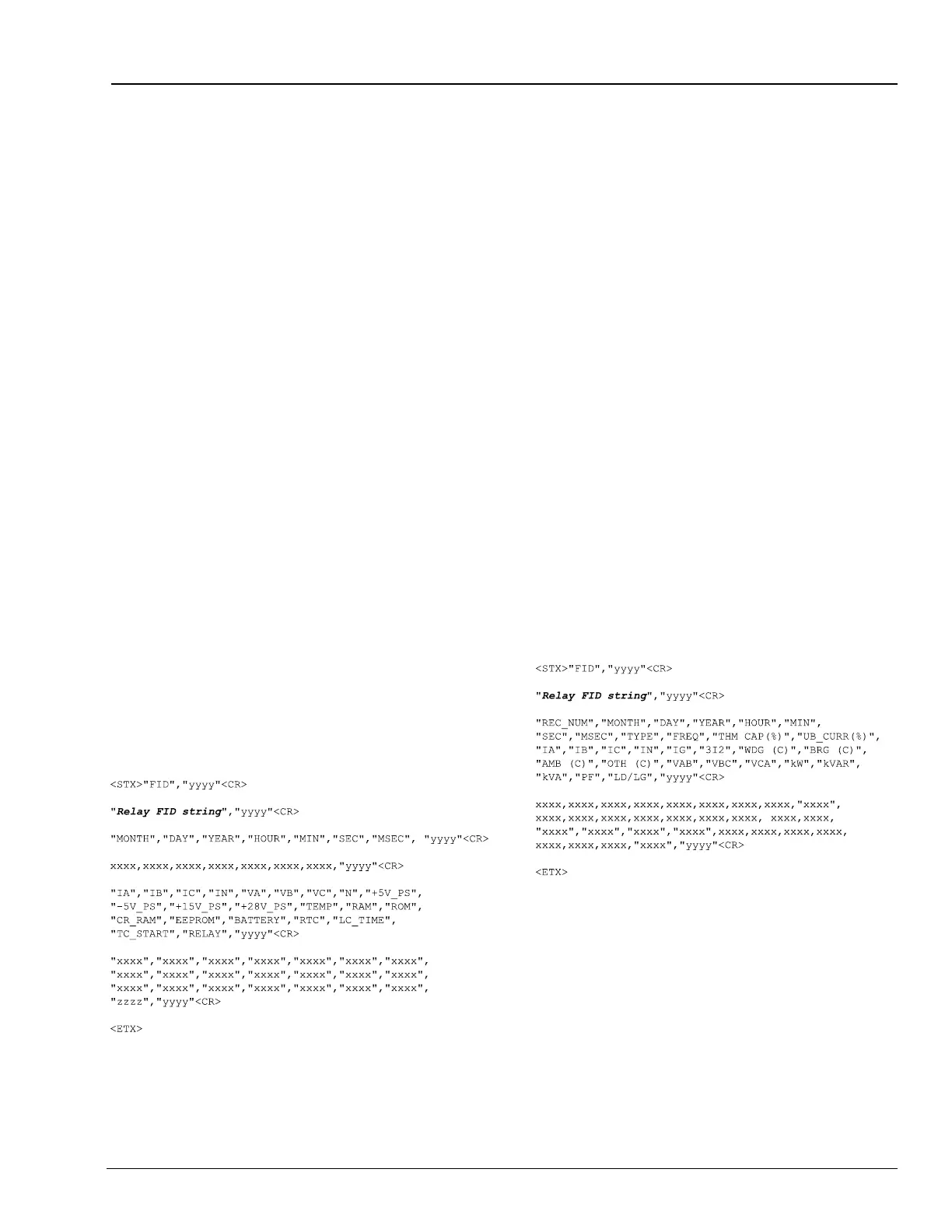

D.6 CSTATUS Command
Display status data in compressed ASCII format
by typing CST <CR>. The relay replaces the
items in italics with the actual relay data.
The SIMPRO-100 Relay sends:
where:
• "xxxx" are the data values corresponding
to the first line labels
• "zzzz" is a message saying whether the
relay is “ENABLED” or “DISABLED"
• "yyyy" is the 4-byte hex ASCII
representation of the checksum
In relays where voltages are not supported, “VA”,
“VB”,”VC”, and “N” are reported as “*”.
D.7 CHISTORY
Command
Display history data in compressed ASCII format
by typing:
CHI <CR>
The relay replaces the items in italics with the
actual relay data.
The SIMPRO-100 Relay sends:
(the second line is then repeated for each record)
where:
• "xxxx" are the data values corresponding
to the first line labels
• "yyyy" is the 4-byte hex ASCII
representation of the checksum
• "THM CAP(%)" is the thermal model
thermal capacity used in percent
