Electrical installation
4.5 Connections
Cabinet Modules NEMA
Manual, 04/2014, A5E03586450A
105

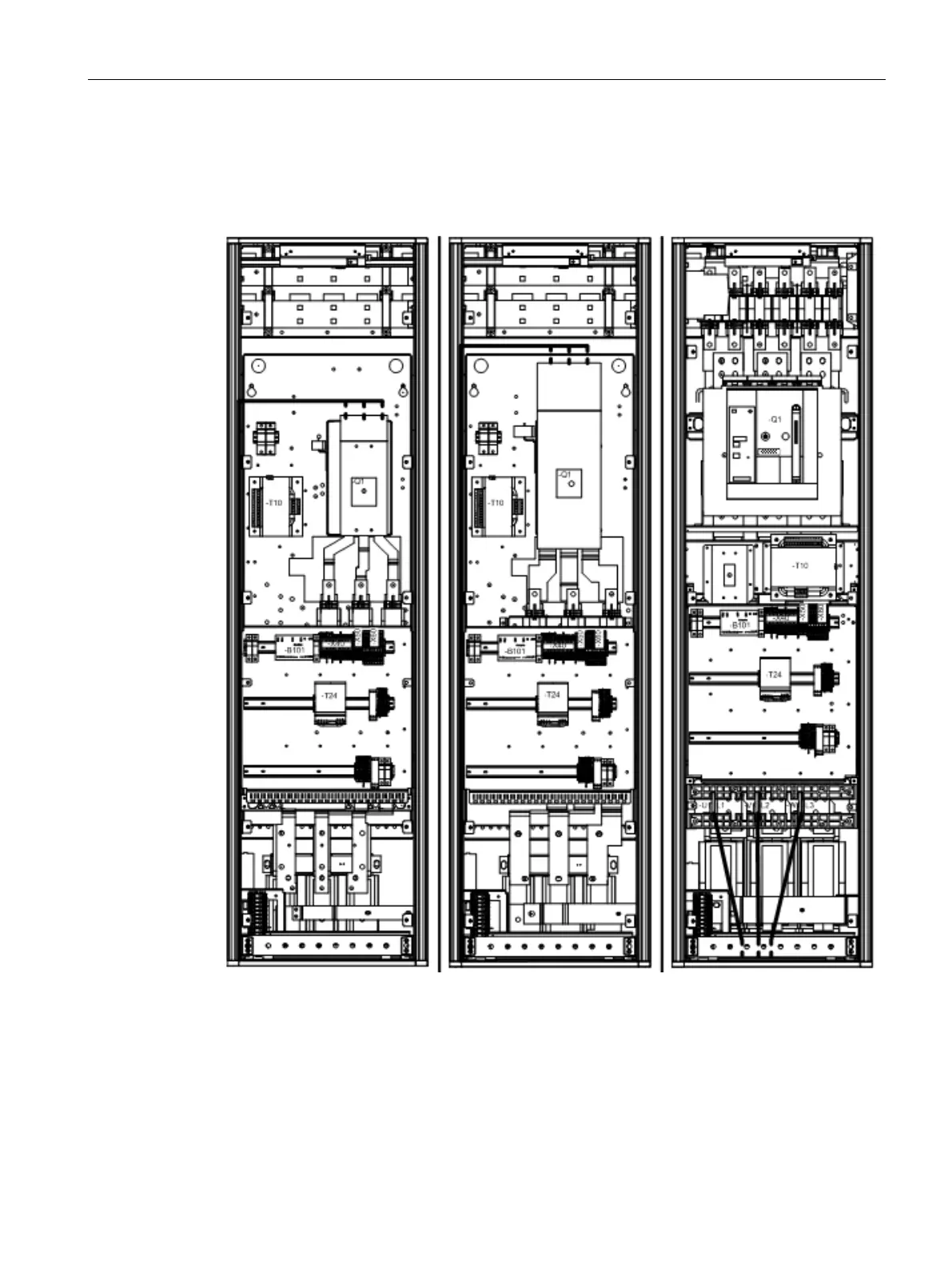

Cable routing for connection to the line supply
Frame size:
FL
GL
JL
1.
Feed the infeed cable into the cabinet from the bottom.
2.
Connect the PE cable to the grounding bar.
3.
Feed the cable up through the cabinet to terminal block -X1.
4.
Secure the cable at suitable points.
5.
Connect the cable to the terminal block.
