Electrical installation
4.5 Connections
Cabinet Modules NEMA
106 Manual, 04/2014, A5E03586450A
Signal cables

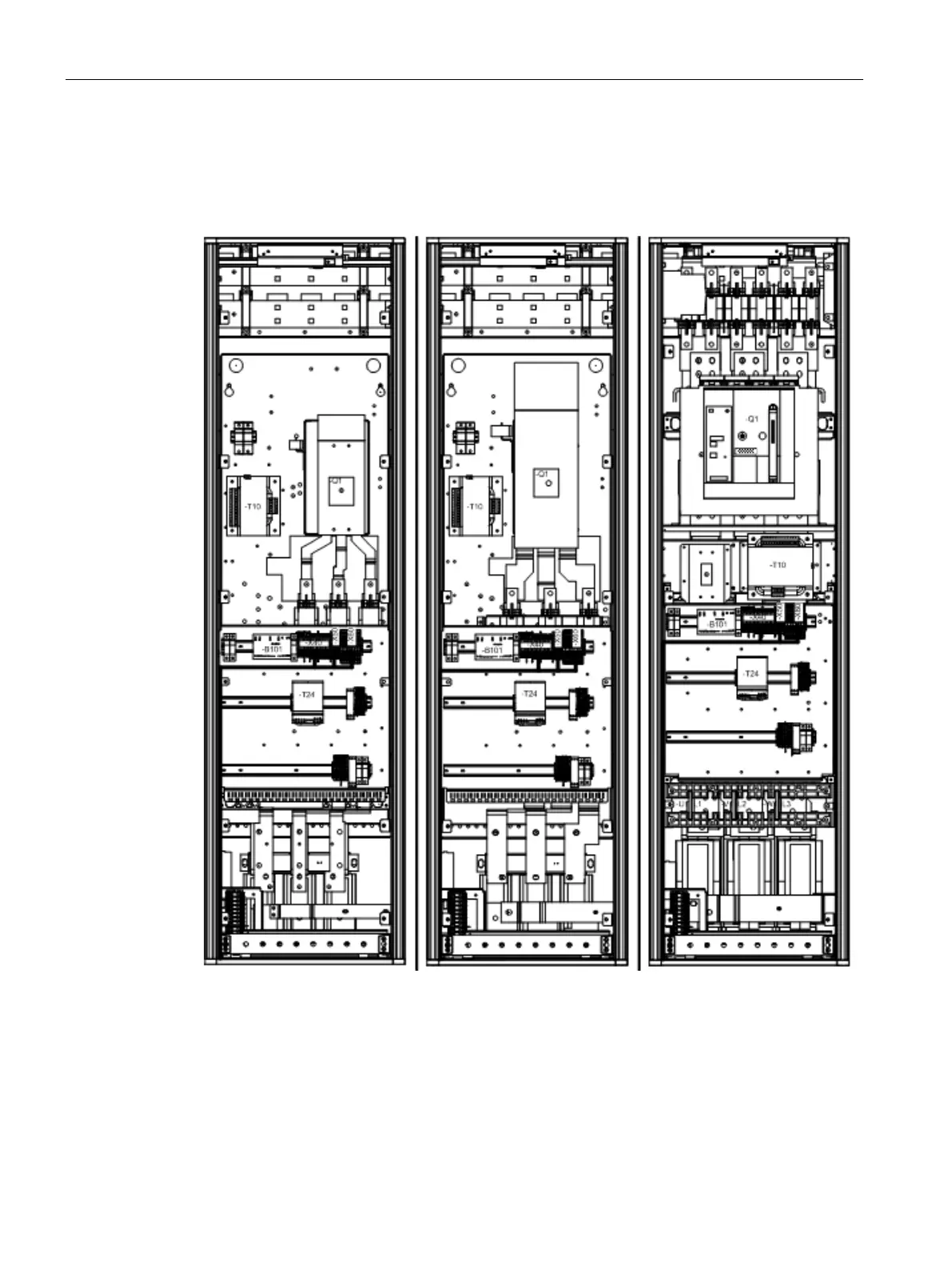

Frame size:
FL
GL
JL
1.
Feed the signal cables into the cabinet from the bottom left.
2.
Feed the signal cables up through the cabinet to terminal blocks -X30, -X40, and -X50.
3.
Fasten the signal cables at suitable points.
4.
Connect the signal cables to the terminal blocks.
