5.6 Motor Modules in chassis format
Cabinet Modules NEMA
Manual, 04/2014, A5E03586450A
215

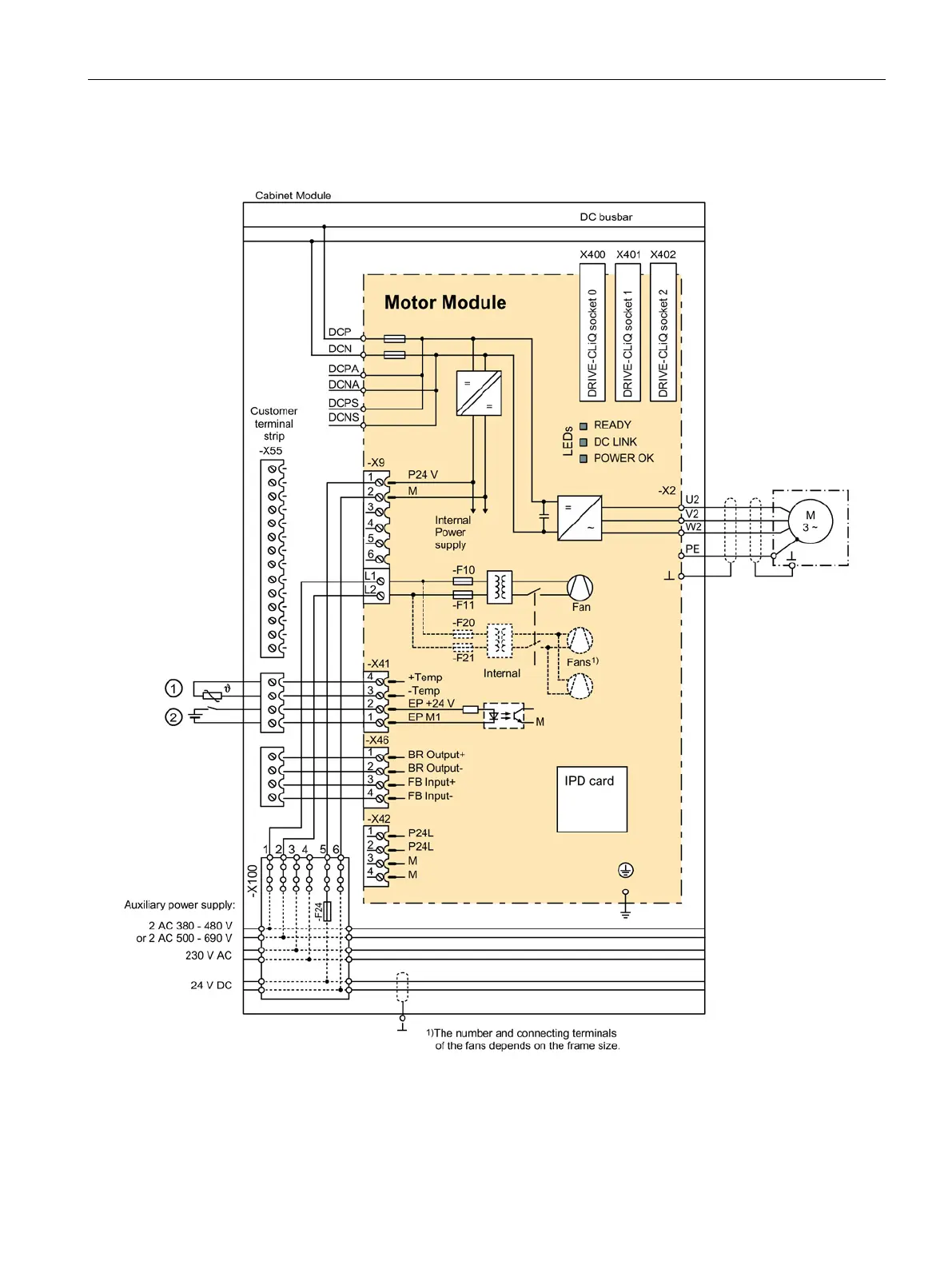

Figure 5-35 Connection example for Motor Modules in chassis format
① Temperature sensor connection for motors without a DRIVE-CLiQ interface
② Required for Safety Integrated
