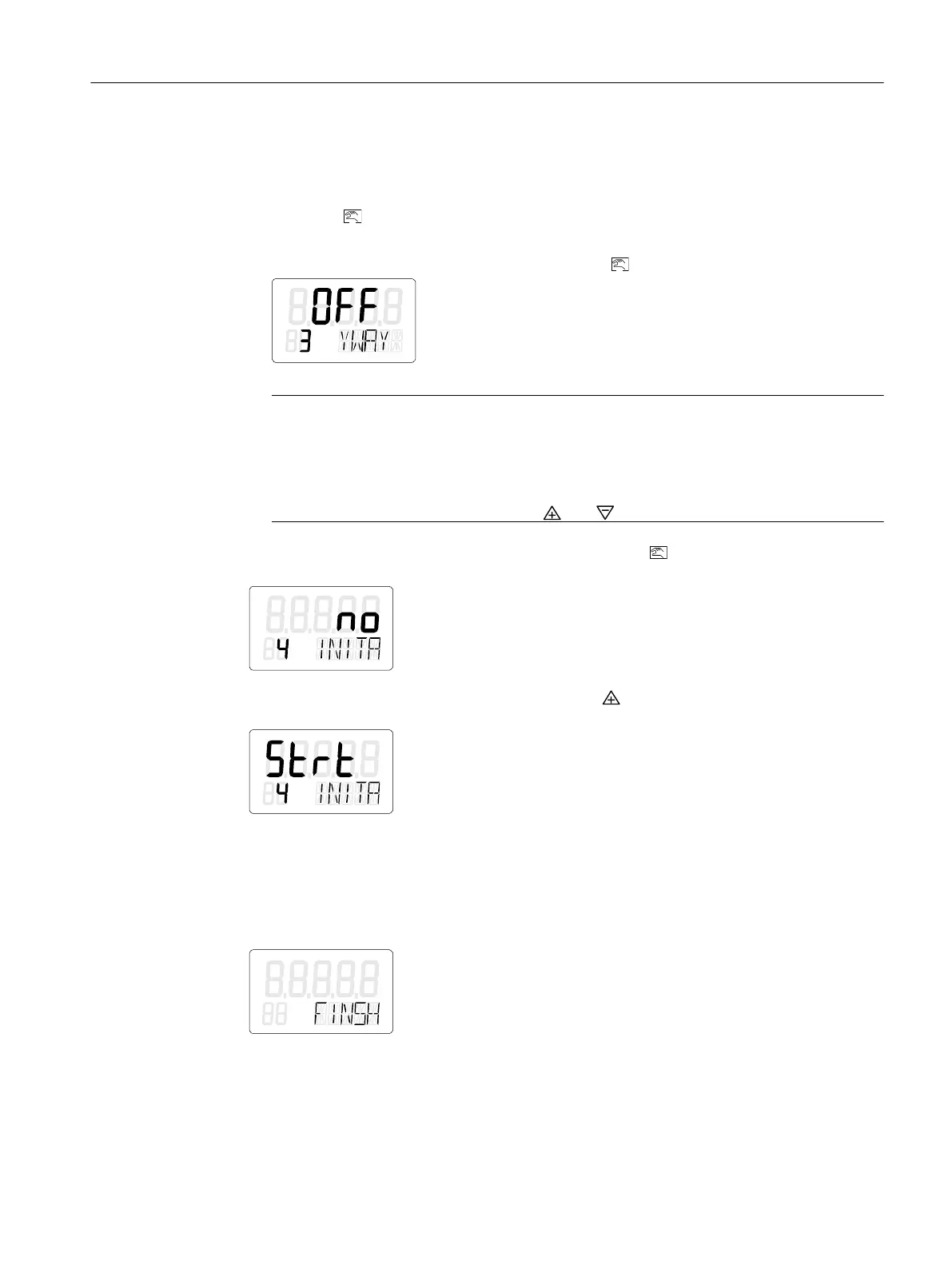

4. Set the "3.YWAY" parameter to determine the total stroke in mm. The setting of parameter
3 is optional. The display shows the determined total stroke only at the end of the
initialization phase.
– Press the button if you do not require any information about the total stroke in mm.
You are then directed to parameter 4.
– Call the "3.YWAY" parameter. To do this, press . The display shows the following:
Note
Set the "3.YWAY" parameter
Proceed as follows to set parameter 3:
1. On the scale of the lever, read the value marked by the carrier pin.
2. Set the parameter with the buttons and to the read value.
5. Call the "4.INITA" parameter. To do this, briefly press the button. The display shows the
following:
6. Start the initialization process. To do this, keep the button pressed for at least 5 seconds
until the display shows the following:
The positioner runs through five initialization steps during the automatic initialization
process. Displays for the initialization steps from "RUN 1" to "RUN 5" are shown in the lower
line on the display. The initialization process depends on the actuator used, and takes up to
15 minutes.
7. The following display indicates that the automatic initialization is complete:
See also
Sequence of automatic initialization (Page 111)
Commissioning
7.6 Commissioning linear actuators
SIPART PS2 with PROFIBUS PA
Operating Instructions, 05/2019, A5E00127926-AC 121
